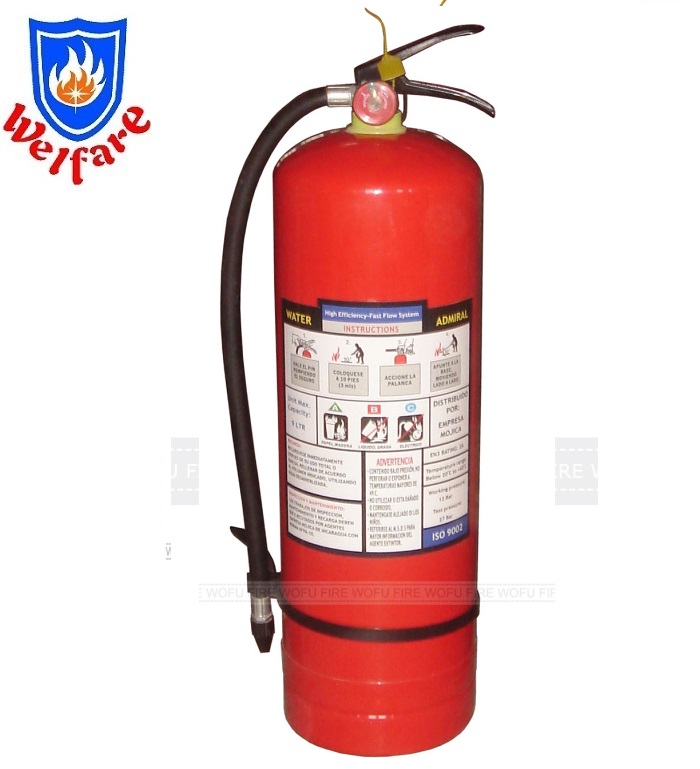

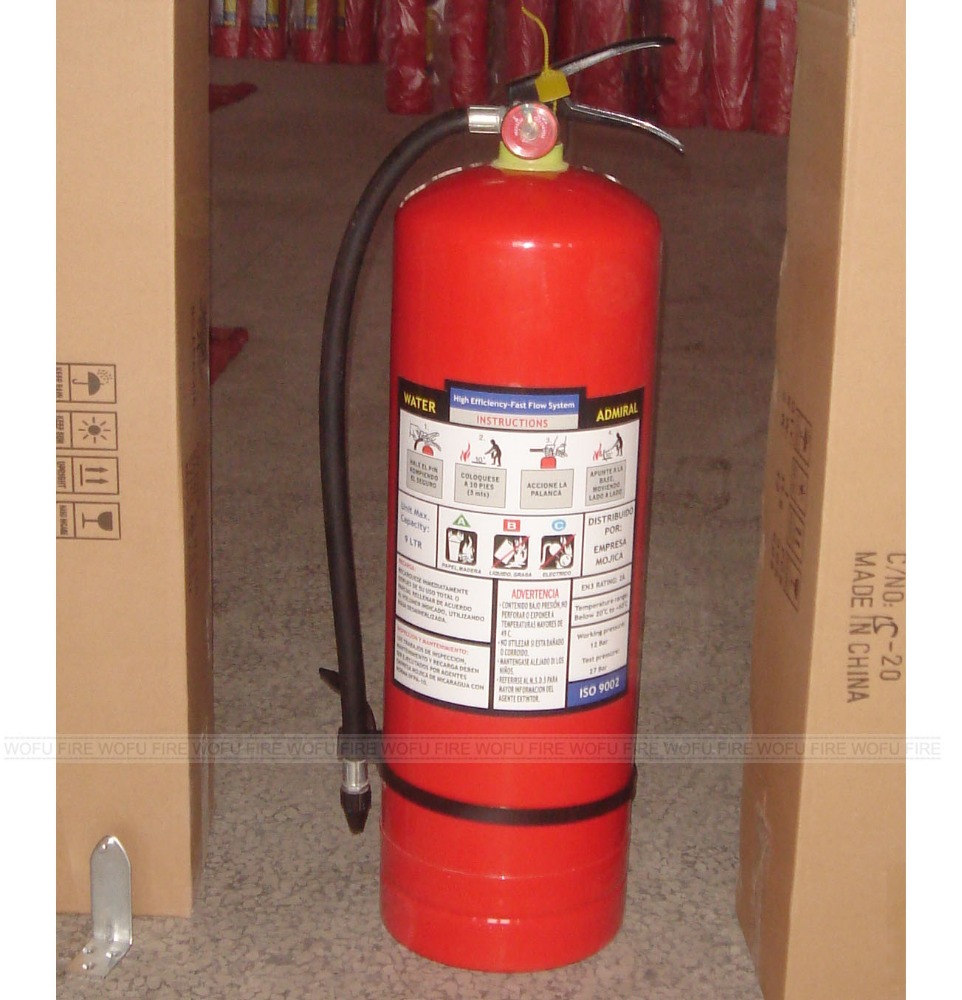

9Ltr Water based Fire Extinguisher
1. Specification of 9Ltr Water Fire Extinguisher :
| Cylinder Size: | D175*H550mm |
| Cylinder Material | Carbon steel |
| Temperature Range | 0°C ~ +60°C |
| Working Pressure | 15Bar |
| Test Pressure | 30Bar |
Fire Class | 4A |
2. Component for 9Ltr Water Fire Extinguisher :
PVC discharge hose with nozzle, length: 630mm
Brass valve with hanger loop, middle black handle
Spring gauge, thread: M10*1-12.5
Steel hook
PVC siphon tube, length: 505mm
Plastic sealing, length: 250mm
3. Packing Details of 10Ltr Foam Fire Extinguisher :
Each one packed with plastic bag, 1PCS/CTN
Carton Size: 18*18*64cm
Gross Weight:14KG
5. Loading and Shipment of Foam Fire Extinguisher, Foam Fire Fighting Equipment
| Kindly Reminder: |
| Fire Extinguisher are dangerous cargo under IMO 1044 Class 2.2 by international sea bureau, so all the shipment must shipped as DG cargo |
| 1. All cartons must stick IMO green label |
| 2. All container must pull green net. |
| 3. Danger shipping mark "1044" |
| Fire Extinguisher Operation Instruction |
1. Quickly take extinguisher at a site, extend to 7 meters away to the fire;
2. Shaking cylinder up and down before use, to loose the inside powder;
3. Take out the discharge hose, then safety pin;
4. Hold the hose with one arm, aim the nozzle of the fire;
5. Push the handle, sweep side to side;
6. Keep upright position during powder spray, do not lying, upside down.
| Fire Extinguisher Maintenance |
1. Fire extinguisher is pressure vessel, should prevent collision during the transportation;
2. Should placed within reach and in a dry and ventilated place at a temperature of -10°C~+45°C;
3. Preventing damps, solarization;
4. The parts in good installed, check it frequently;
5. Regularly check if inside powder is caking, replace if yes;
6. Regularly check if gauge pointed in green area, to find lower or overcharge gas, refill them by the pointer"s condition;
7. Recharge immediately after complete or partial use;
8. Cylinder should be Hydraulic Tested every 5 years, qualified them can be used.
6. Do you know how many processes for produce Fire Extinguisher?
One small Fire Extinguisher has hundreds of processes and artwork. Now we attached below mainly processes for your reference, if lack any of one, you will meet bad quality problems. Trust WOFU, see how we manufacture them(only part of them): |
