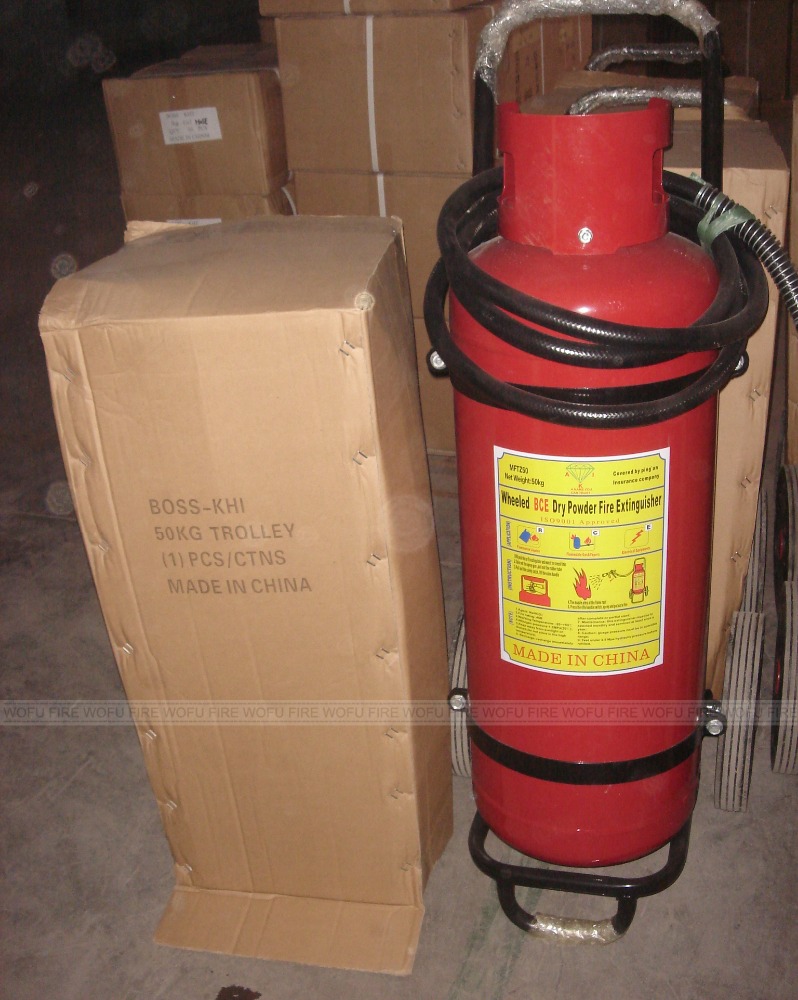

50kg wheeled bc40% dcp fire extinguisher
Made in China
| 1.50KG dcp fire extinguisher main specification: |
| Cylinder size | D300*H900mm | ||||
| Fire extinguishing agent | BC 40% | ||||
| Neck ring | G2"" | ||||
| Thickness | 2.3mm | ||||
| Valve | G2"" | ||||
| Gauge | Diameter: 23mm, Thread: M10*1, Domestic gauge | ||||
| Hose | 4M / G 3/4*M24*1.5 | ||||
| Siphon tube | Thread: M24*1.5, Length: 850mm | ||||
| Trolley | Steel Red Trolley | ||||
| Tamper sealing | yellow plastic,250mm length | ||||
| Cylinder painting | 7325 red painting | ||||
| Temperature range | -20℃ ~ +55℃ | ||||
| Working pressure | 14bar | ||||
| Test pressure | 27bar | ||||
| Discharge time | ≥ 40S | ||||
| Discharge range | ≥ 6M | ||||
| 2.50KG 40%BC fire extinguisher details: |
Accessories:
Brass valve,G2" thread
PVC hose thread M10*1,length 4m
Siphon tube 870mm

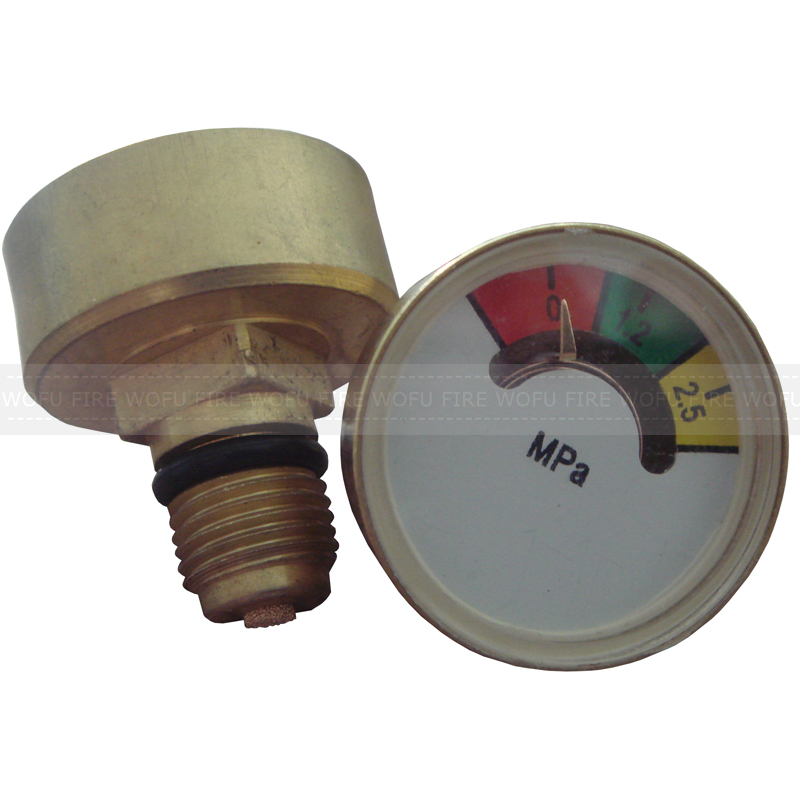

Spring Gauge, Dia 23mm, thread: M10*1
Yellow plastic sealing
| 3.50KG 40%BC fire extinguisher packing details: |
check every parts and assemble,then 1pc into brown carton.
1pc per carton G.W: 73KG size: 48*33*111.5cm
| 4.Wheeled fire extinguisher instruction: |
In case of fire alarm push the wheeled fire extinguisher to the site,extend the rubber hose,pull out the safety plug,pull the ring upward and tightly hold the spray gun with both hands.Stand on the windward side and press the spray gun trigger with a hand and point to spray at the bottom of the flame until the fire is completely put out.
| 4.Different types of trolley fire extinguisher: |
Wofu have three type of trolley extinguisher:
1.Cylinder have protection cap on top;
2.Cylinder have different color different valve;
3.Cylinder with external gas cartridge
Two different valves,see below:
