Empty fire extinguisher stainless steel cylinder container
1.Main specification of empty fire extinguisher cylinder container:
Material: Stainless steel SUS304
Thickness: 1.0mm to 2.5mm
1-2-3.5-6Ltr: 1.0mm
9Ltr: 1.2mm
25-50Ltr: 2.0mm
100Ltr: 2.5mm
Applicate for water and foam fire extinguisher
above thickness is indeed to make sure pressure security,some clients want cheaper price to buy thickness weak,it is not a safety idea.

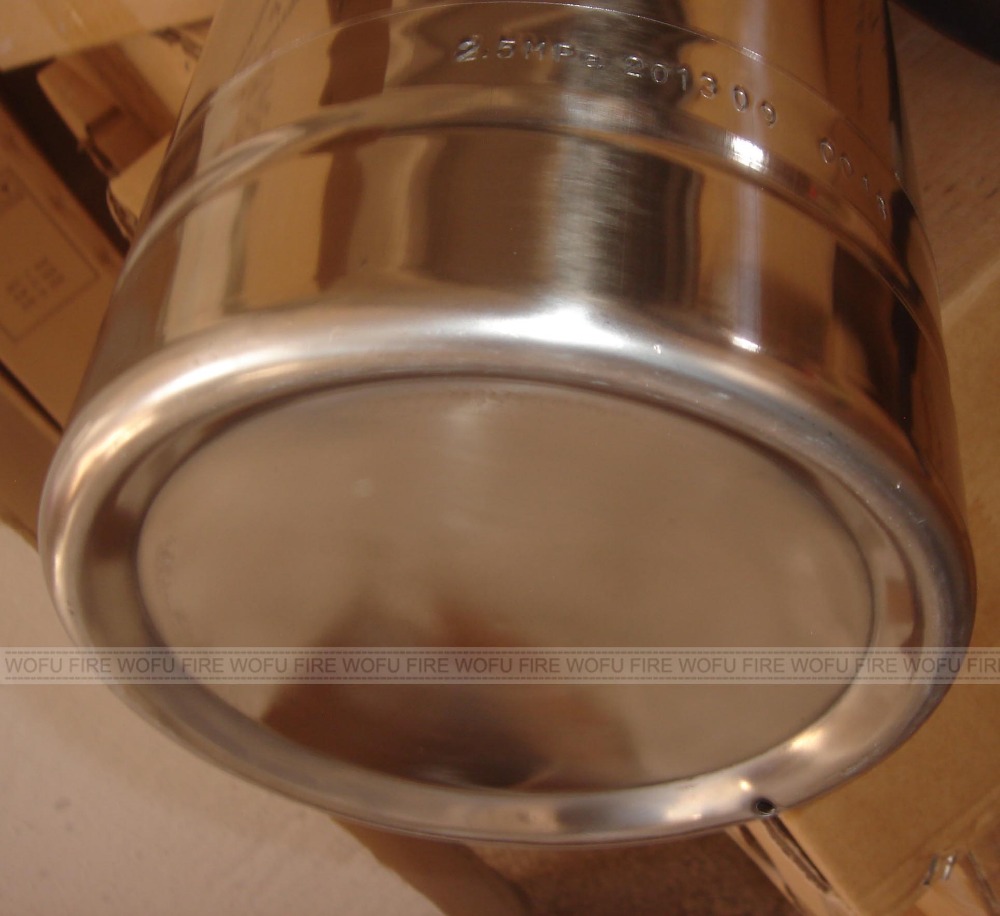

2.Stainless steel fire extinguisher cylinder details picture:
Empty cylinder bottom shape: curls and point or straight as per clients requested
Empty cylinder neck ring: M24*1.5 and M30*1.5
all cylinder before painting must dip into chemical acid pool pickling and phosphating the surface
of the cylinder, prevent oxidized and corrosion, as well it is use time would be around 10 year at least, otherwise, some factory cylinder one or two year are in corrosion.
3.Check below DCP Fire Extinguisher Cylinder you might interested in:
Empty Fire Extinguisher 1KG, 2KG, 3KG, 4KG, 5KG, 6KG, 8KG, 9KG,12KG
Empty Fire Extinguisher Ball 6KG, 8KG, 9KG, 12KG
Empty Trolley Fire Extinguisher 25KG, 35KG, 45KG, 50KG, 100KG
CO2 Fire Extinguisher 2KG, 3KG, 5KG, 7KG, 9KG
