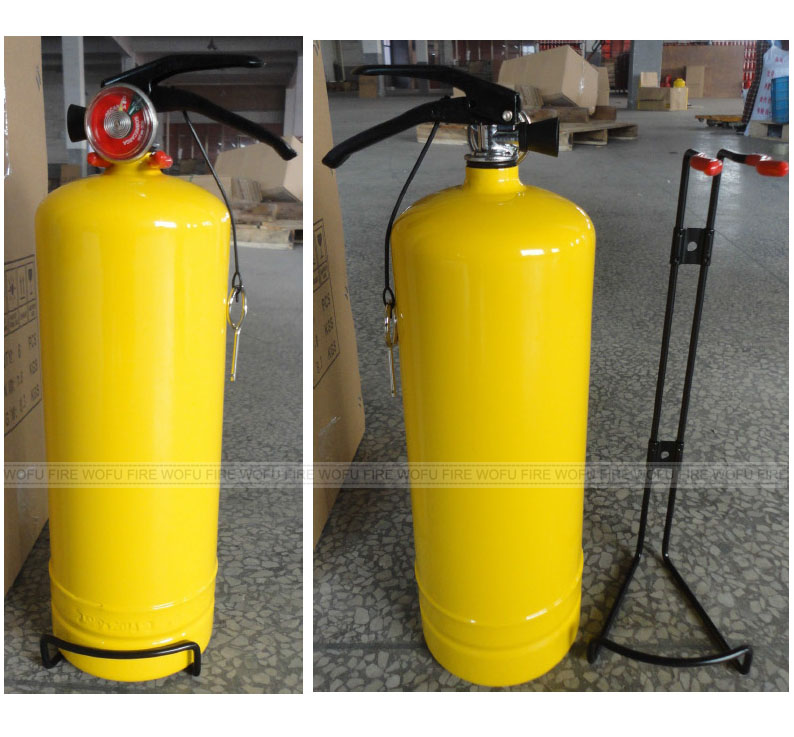

5LBS DCP Yellow Empty Fire Extinguisher Cylinder
Main Specification of 5LBS DCP Yellow Empty Fire Extinguisher
Component of 5LBS DCP Yellow Empty Fire Extinguisher
Black nylon nozzle, Chrome valve without hanger loop, Pressure gauge, Steel bracket,
Plastic siphon tube
Packing of 5LBS DCP Yellow Empty Fire Extinguisher
Each one packed with plastic bag, 6pcs in one carton
Carton size: 37*24*40cm
N.W: 8KG
G.W: 8.5KG
CBM: 0.036
Instruction of 5LBS DCP Yellow Empty Fire Extinguisher
| High Quality Colombia 2KG Empty ABC Fire Extinguisher | ||
| PART-NO. | NAME AND DESCRIPTION | 2KG Empty Fire Extinguisher |
| PD-01 | POWDER | ABC |
| CY-02 | CYLINDER SIZE: | Seamless, D110*H310mm |
| NC-03 | NECK RING SIZE | 7/8-14 |

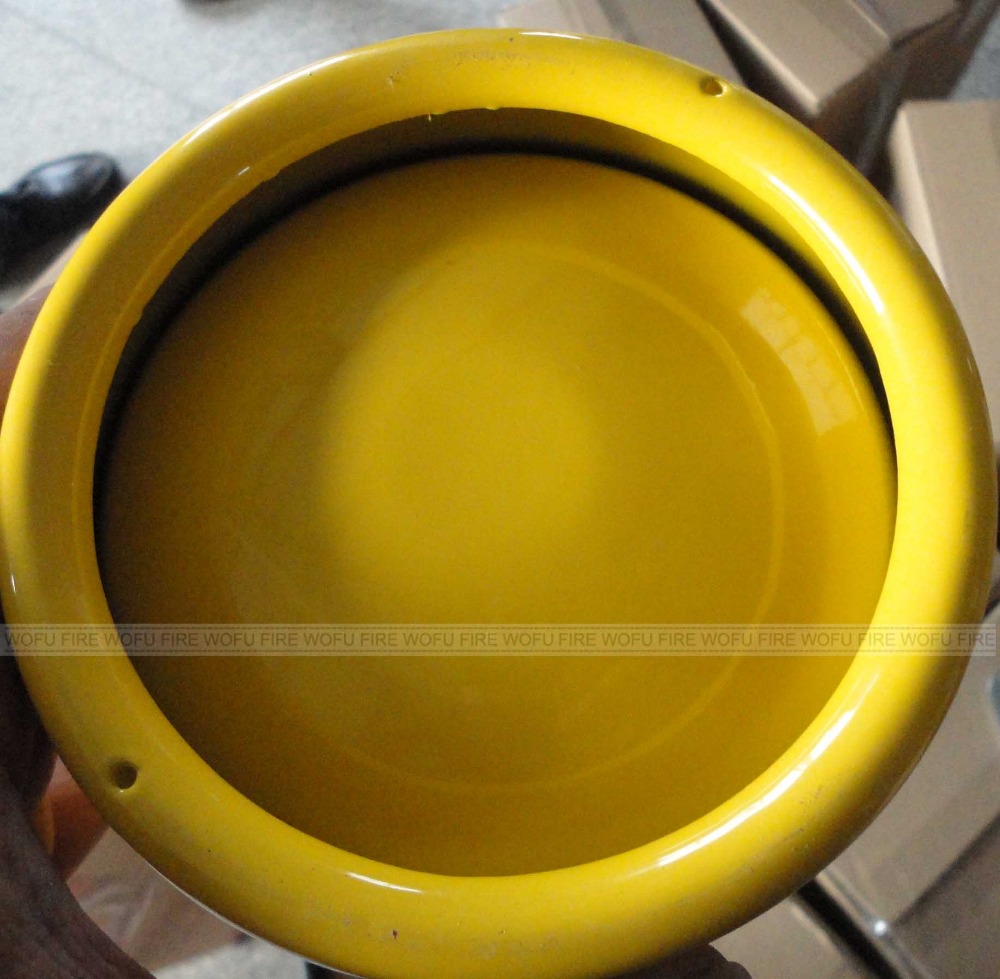

| BT-04 | BOTTOM SHAPE | Curls base |
| THICKNESS(MM) | 1.0mm | |
| V-05 | BRASS VALVE | Chrome valve without hanger loop, small black handle |
| G-06 | GAUGE | DIA 37mm, thread: NPT 1/8"", 150Psi |
| N-07 | NOZZLE | Black nylon nozzle |
| ST-08 | SIPHONE TUBE | PVC, thread: M10*1.5, length: 265mm |
| B-09 | BRACKET | Steel black bracket |
| CYLINDER PAINTING | 3431 Yellow painting | |
| HS-10 | HOSE STRAP | NONE |
| OTHER SPC. | PACKING SIZE(CM) | 37*24*40 |
| VOLUME SIZE(M3) | 0.036 | |
| QTY/CTN | 6PCS/CTN | |
| N.W(KG) | 8 | |
| G.W(KG) | 8.5 | |
| FIRE RATE | CLASS A, B, C | |
| WORKING PRESSURE(MPa) | 1.4 | |
| TEST PRESSURE(MPa) | 2.7 | |
| DISCHARGE RANGE(M) | 3 | |
| DISCHARGE TIME(S) | 10 | |
| WORKING TEMPERATURE | -20°C ~ +60°C | |
| Fire Extinguisher Operation Instruction |
1. Quickly take extinguisher at a site, extend to 7 meters away to the fire;
2. Shaking cylinder up and down before use, to loose the inside powder;
3. Take out the discharge hose, then safety pin;
4. Hold the hose with one arm, aim the nozzle of the fire;
5. Push the handle, sweep side to side;
6. Keep upright position during powder spray, do not lying, upside down.
| Fire Extinguisher Maintenance |
1. Fire extinguisher is pressure vessel, should prevent collision during the transportation;
2. Should placed within reach and in a dry and ventilated place at a temperature of -10°C~+45°C;
3. Preventing damps, solarization;
4. The parts in good installed, check it frequently;
5. Regularly check if inside powder is caking, replace if yes;
6. Regularly check if gauge pointed in green area, to find lower or overcharge gas, refill them by the pointer"s condition;
7. Recharge immediately after complete or partial use;
8. Cylinder should be Hydraulic Tested every 5 years, qualified them can be used.
