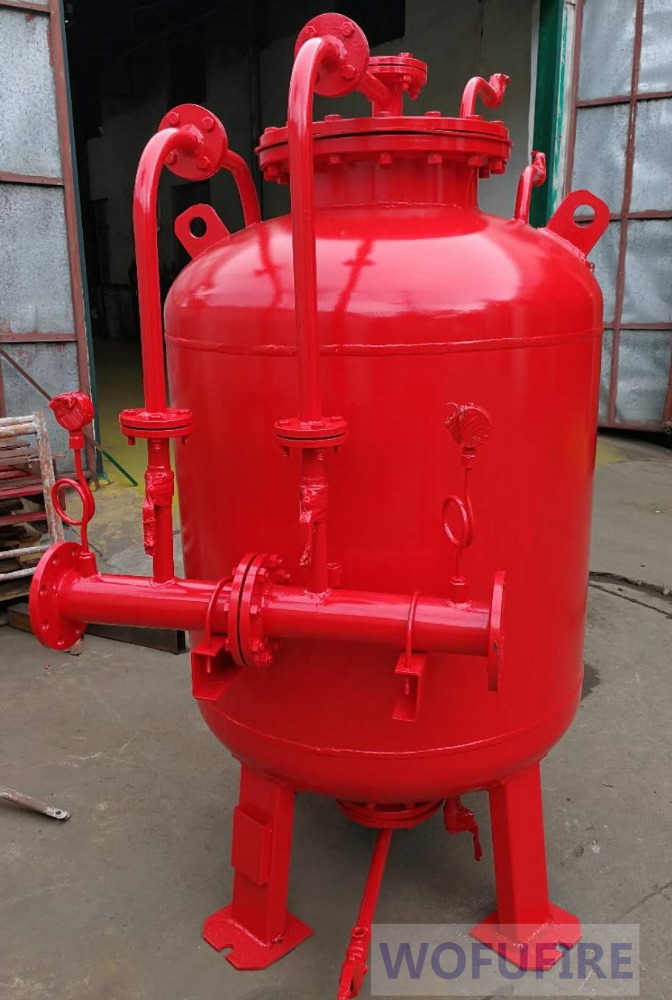

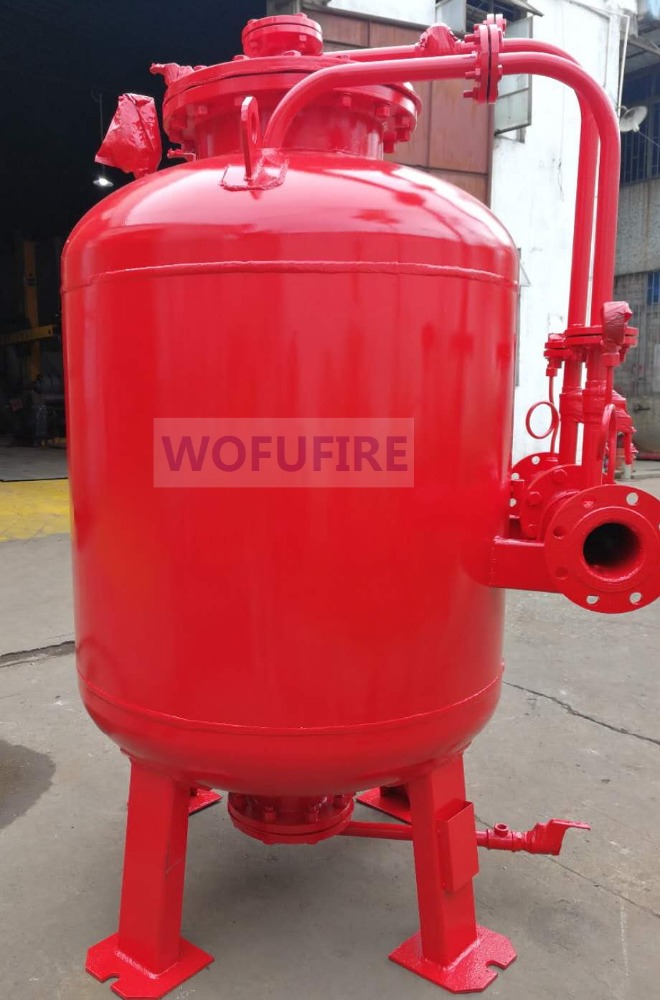

1000Ltr Vertical Foam Bladder Tank (Empty)
inner painting, include inside rubber bladder and all parts
flow rate: 100L/s, 3% mix proportion
1.Mounting type: vertical , horizontal
2.Storage capacity: 500ltr to 15000ltr
3.Following Rate: 16~160L/S
4.Working pressure (Mpa) 0.6~12Mpa (6Bar TO 12Bar (175PSI)
5.Bladder: Buna -N with Nylon Reinforcement
6.Main parts: tank, bladder, external pipe, pressure proportional,vent and drain Valve, foam concentrate control valve, foam concentrate, level indicator, pressure gauge, safty valve.
7.Suitable for : Foam 3% and 6%
8.Finishing: Expoxy Red Painted
9.Application: hissystem are widely used in petrochemical enterprises,harbor port,oil storage,airdrome etc
fire fighting place.
10 Before order , let us know your Follow rate ,and Valve size of proportioner
Drain out valve
liquild Level meter
