Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- welfare
- VALVE WOFU TYPE:
- BRASS
- VALVE OEM:
- BRASS
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 8X8X6 cm
- Single gross weight:
- 5.5 kg
- Package Type:
- wooden case
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 100 >100 Est. Time(days) 15 To be negotiated

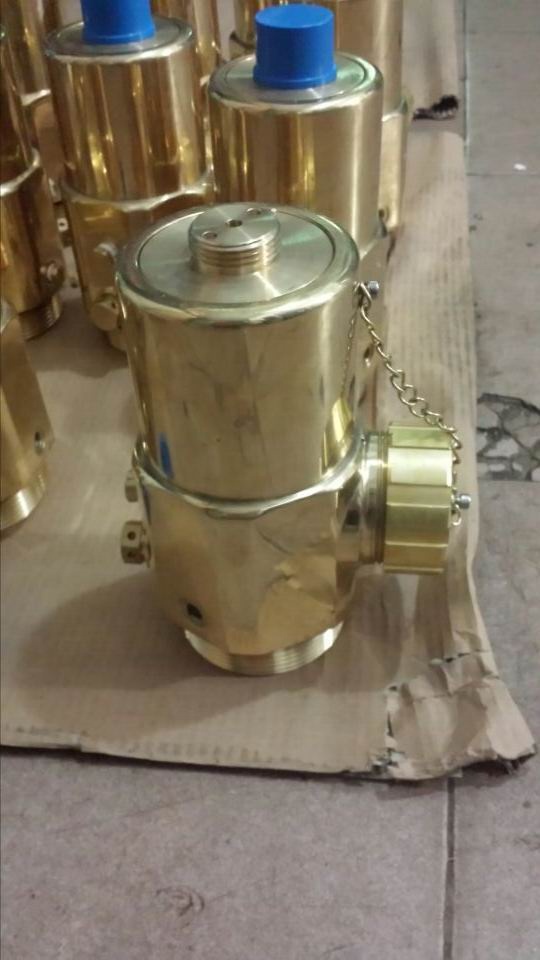

FM200 FIRE SUPPRESION VALVE WITH SOLENOID VALVE
it is can manually and electrical actuation.
Type | Specification DN(mm) | Inlet thread | Outlet thread | Max wp(Moa) |
XZ-25DZ | DN25 | RC 1” | RC 1” | 17.2Mpa |
XZ-35DZ | DN32 | RC 11/4” | RC 11/4” | 17.2Mpa |
XZ-40DZ | DN40 | RC 11/2” | RC 11/2” | 17.2Mpa |
XZ-50DZ | DN50 | RC 2” | RC 2” | 17.2Mpa |
XZ-65DZ | DN65 | RC 21/2” | RC 21/2” | 17.2Mpa |
XZ-80DZ | DN80 | RC 3” | RC 3” | 17.2Mpa |
XZ-100DZ | DN100 | RC 4” | RC 4” | 17.2Mpa |
XZ-125DZ | DN125 | Flange | Flange | 17.2Mpa |
XZ-150DZ | DN150 | Flange | Flange | 17.2Mpa |

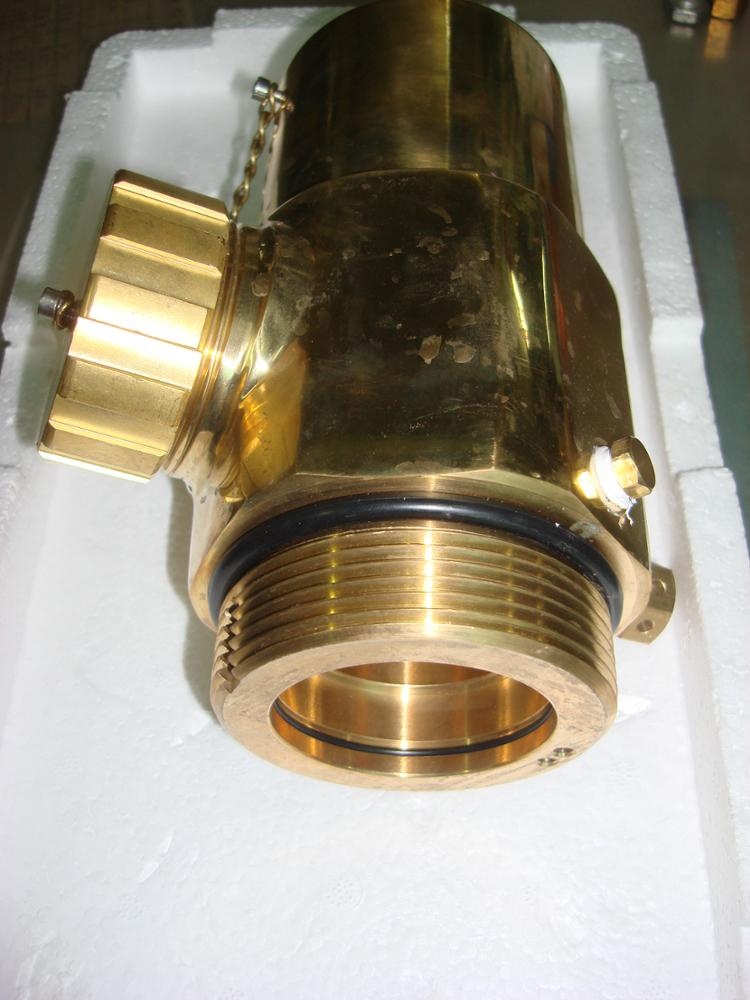

HFC-227EA cylinder head valve specification:
1.Valve actuated:
Manual, auto and eletrical
2.Material:
Full brass
3.Use purpose:
Cylinder valve be installed on the stored cylinder, sealing inside hfc-227ea gas. When the fire occurs, the valve will be opened and gas discharged out. In emergency, the valve can actuated by manual ways.
4.Main technical and parameter
size 1” , 2”, 2.5”and max 3”
Model Diamter (mm) : 25MM, 40MM
Working pressure (Mpa) 25bar , 42bar
equivalent length w/siphon tube (m) less 1.8
how to use and maintenance:
When filling the gas or driving gas nitrogen , pls screw loose the bolt nut and unload the actuated seat , use hexagon spanner 2.5mm, and loose the piston , after gas filled well closed the screw and nut . After installed this valve should be inspected in rated time , if any Abnormal conditions,should be properly works well then continue use.
