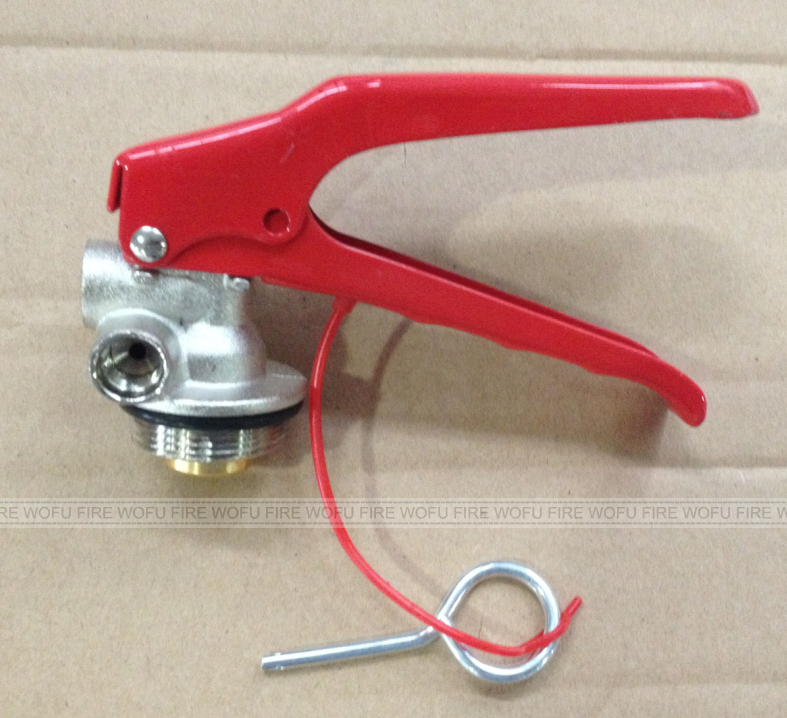

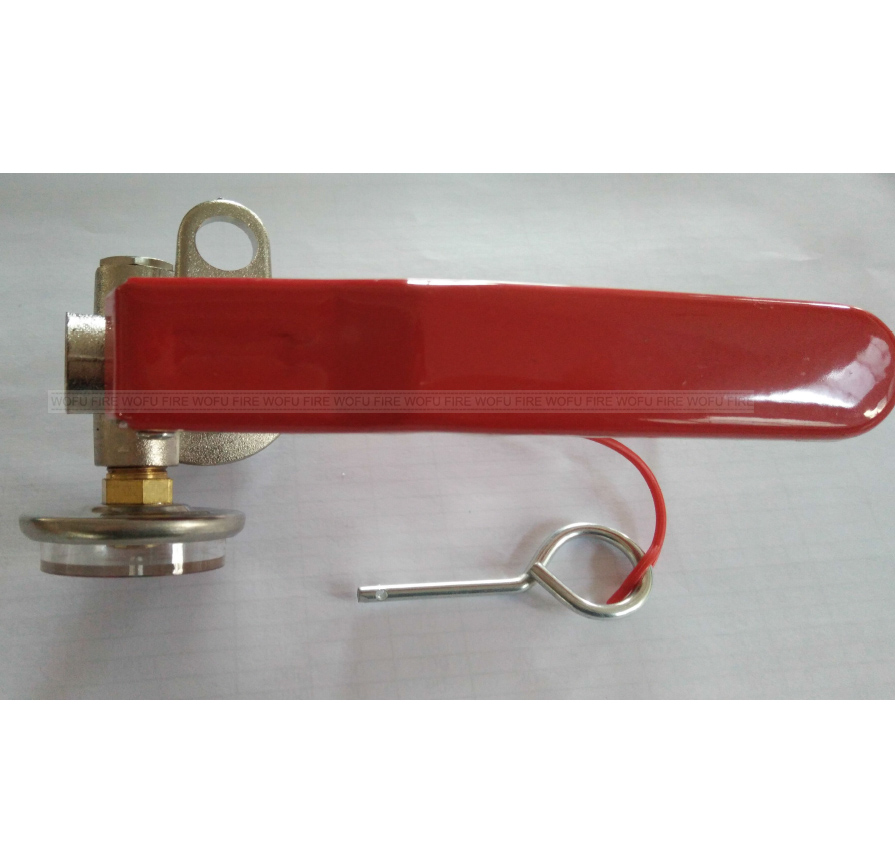

6KG to 12KG dry powder fire extinguisher valve
1.CYLINDER VALVE FUNCTION:
Filled ,sealed inside gas and powder of fire extinguisher,
carry fire extinguisher when be used
2.Main Spefication of fire extinguisher cylinder valve:
Material : Brass valve
Handel : red steel
Safety pin : steel
Cord :rubber red
Working pressure 12bar to 17Bar
max working pressure 27Bar
OTHER SPEFICATION
Neck ring :M30*1.5
Hose thread:M14X1.5
Gauge thread:M10*1-12.5
Tiptube:M14X1
Weight 270G
Other Details of the fire Extinguisher valve
3.Packing information of dcp fire extinguisher valve:
50pcs/ctn , G.W.19KG , N.W.18KG , 43*27*24
0.028CBM /CTN
4.WHY NEED ONE QUALITY VALVE:
If any leakage will cause gas leakage,While fire extinguisher can not use
How to Choice quality valve
1. FIND THE GOOD SEALED , RUBBER , AVOID RUBBER LEAKAGE
2. WEIGHT DECIDE THE PRICE , IN NORMALLY CONIDATION ,MORE HEAVY DUTY , MORE STRONGE MORE EXPENSIVE
3. VALVE MUST TESTED BEFORE INSTALLATION
4. HOW TO TEST , AFTER FILLED GAS , DIPINTO WATER , THERE ARE NO BULB GAS COME OUT IF NECK RINGOT
5.Other information about price:
The valve price nrmally from the weight
if client want cheaper price , the weight can be reduce a little
But must meet standard and working pressure testing
