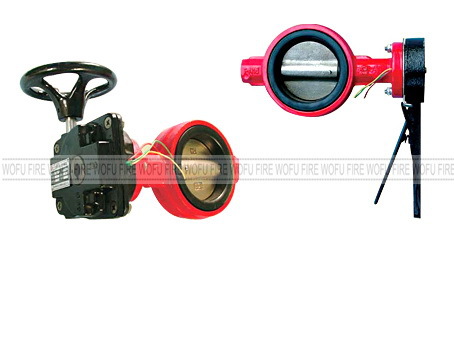

Turbine Style Signal Butterfly Valve
It is one of the necessary accessories for automatic sprinkler system, as ZS automatic sprinkler control valve, a valve position signals transmit to control management, so as not to cause wrong operation, improve security, is the fire fighting water supply and drainage pipeline control valves.
Main technical parameters:
| Model | Nominal diameter | Pressure | Switch capacity | A | B | C | D |
| ZSXF-50-D | DN50 | 1.6MPa | DC24V 1A | 275 | 204 | 165 | 125 |
| ZSXF-65-D | DN65 | 1.6MPa | DC24V 1A | 200 | 204 | 165 | 145 |
| ZSXF-80-D | DN80 | 1.6MPa | DC24V 1A | 330 | 215 | 165 | 160 |
| ZSXF-100-D | DN100 | 1.6MPa | DC24V 1A | 357 | 215 | 165 | 200 |
| ZSXF-125-D | DN125 | 1.6MPa | DC24V 1A | 387 | 235 | 165 | 220 |
| ZSXF-150-D | DN150 | 1.6MPa | DC24V 1A | 415 | 245 | 165 | 250 |
| ZSXF-200-D | DN200 | 1.6MPa | DC24V 1A | 555 | 340 | 128 | 295 |
It widespread and convenient in life for fire fighting.
This is safety for children, because it is fixed.
It is a covers small area on fire hydrant.
In addition, it is a brand producct. High quality with competitive price.
