Vertical empty fire retardant foam bladder tank
| 1.Foam tank main technical parameters: |

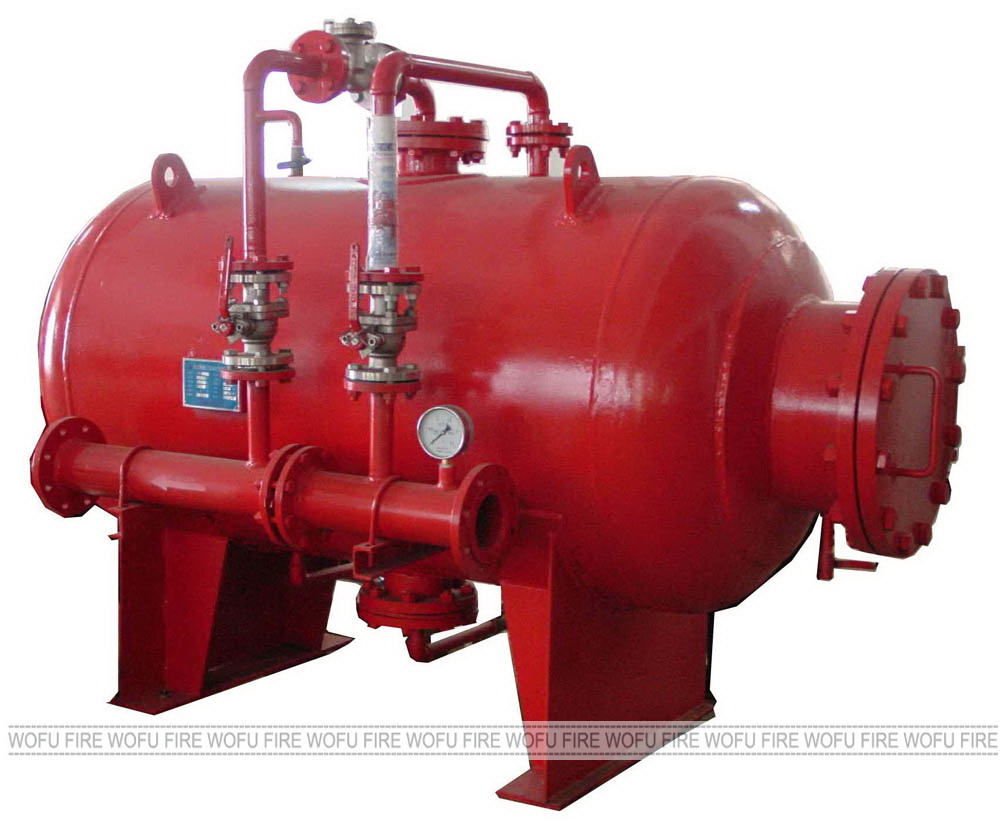

Mounting type: vertical, horizontal
Storage capacity: 300LTR TO 7000LTR
Following Rate: 16~160L/S
working pressure (Mpa) 0.6~12Mpa (6Bar to 12Bar (175PSI) )
Bladder: Buna -N with Nylon Reinforcement
Main parts: tank, bladder, external pipe, pressure proportional, vent and drain valve, foam concentrate
control valve, foam concentrate, level indicator, pressure gauge, safty valve.
Suitable for: Foam 3% and 6%
Fishing: Red Painted
| 2.Foam tank application and specification: |
APPLICATION
The Bladder Tank Foam Proportioning System utilises the water pressure to inject foam
concentrate into a water supply and automatically proportions foam concentrate over wide range of flow and pressure, with very low pressure drop. This system does not require concentrate
supply pump.
VERTICAL FOAM TANK SPECIFICATION
| Model | Capacity (M3) | Flow rate range(L/S) | Tank inner dia.(mm) | Work pressure (Mpa) | Outer size | Mixing ratio | Mixture pipe diameter DN(mm) | Approximately weight(kg) | |||
| L | B | S | |||||||||
| PHYM-8-5 | 0.7 | 4-32 | 800 | 0.6-1.2 | 2100 | 1060 | 900 | 3%-6% | 100/150/200 | 700 | |
| PHYM-24-10 | 1 | 1000 | 2280 | 1260 | 1050 | 900 | |||||
| PHYM-32-20 | 2 | 1200 | 2860 | 1460 | 1200 | 1400 | |||||
| PHYM-32-30 | 3 | 1400 | 2960 | 1660 | 1200 | 1650 | |||||
| PHYM-32-40 | 4 | 32-80 | 1600 | 3060 | 1860 | 1200 | 2200 | ||||
| PHYM-32-50 | 5 | 1800 | 3160 | 1860 | 1200 | 2800 | |||||
| PHYM-48-60 | 6 | 1800 | 3460 | 2060 | 1200 | 3000 | |||||
| PHYM-64-70 | 7 | 2000 | 3560 | 2260 | 1200 | 3200 | |||||
| PHYM-64-80 | 8 | 2000 | 3860 | 2260 | 1200 | 3800 | |||||
| 3.Foam tank vertical type details: |
