- Place of Origin:
- Zhejiang, China
- Brand Name:
- welfare
- Model Number:
- Compresor Single-phase AC
- Structure:
- Other
- Usage:
- Other
- Application:
- Other
- Fuel:
- Diesel
- Pressure:
- High Pressure
- exhaust pressure:
- 100 ltr/min
- working pressure:
- 300bar
- final safety valve pressure:
- 330 bar
- working voltage:
- 380V, 50Hz230V, 50Hz
- power:
- 2.2KW
- Supply Ability:
- 10000 Set/Sets per Month

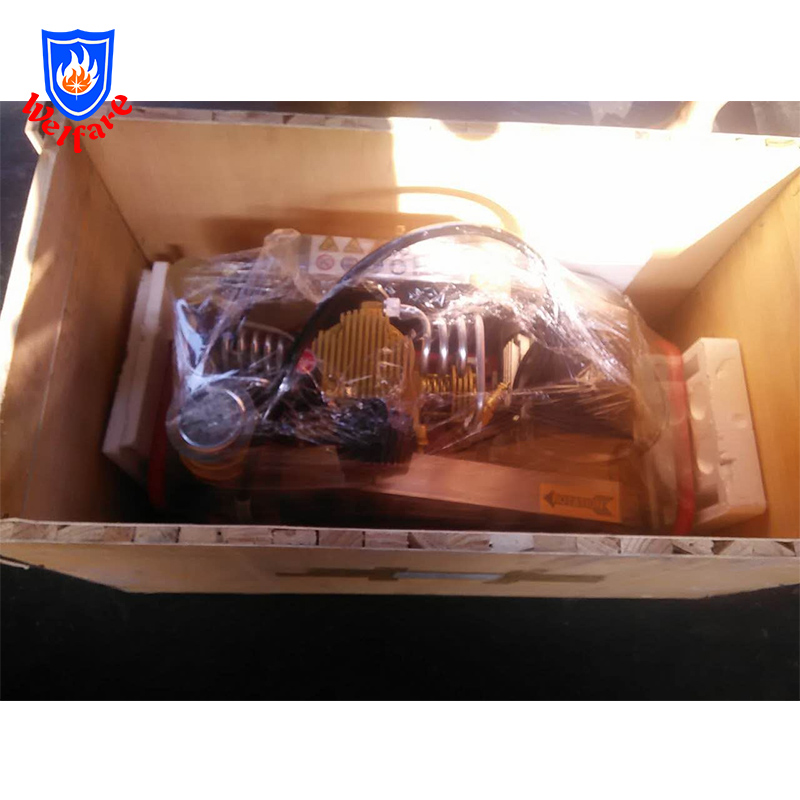

- Packaging Details
- carton
- Port
- ningbo
- Lead Time:
Quantity(Sets) 1 - 5 >5 Est. Time(days) 20 To be negotiated

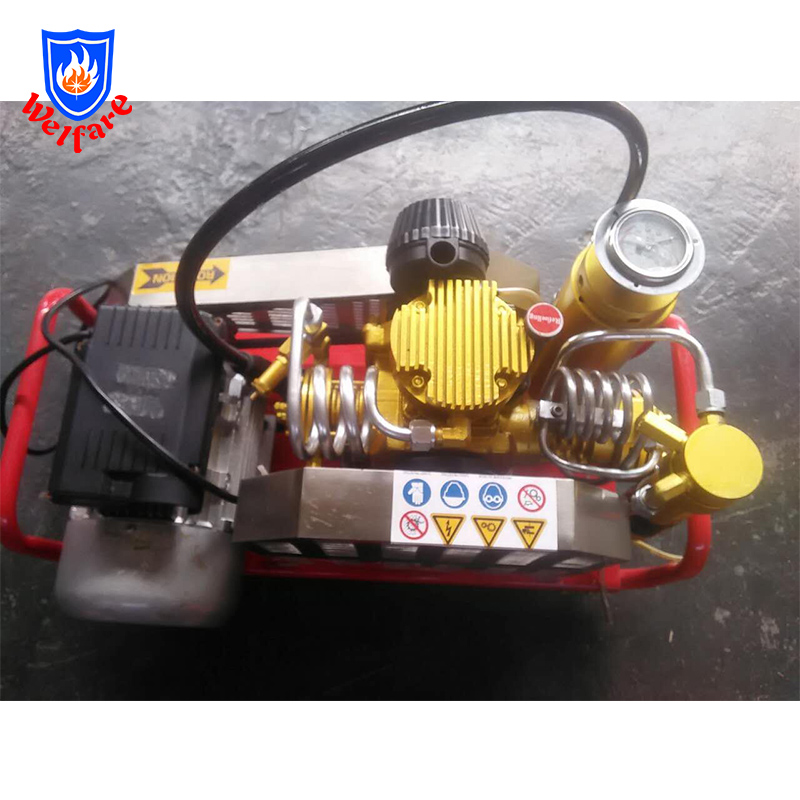

Air breathing cylinder filling pump
1.Specifications
Breathing air pump:
1) Germany advanced technology;
2) breathing air filling pump;
3) high efficiency air filling
breathing air compressor, which is commonly known as breathing air inflator, Germany advanced technology and key components of domestic assembly from the compression and filling of fresh air to the breathing cylinders. Compressor unit can of compressed air through the second, three oil-water separator and filter, purify, output oil- free, no impurities,non-toxic and tasteless high pressure breathing air hygiene. Provided to disaster relief, firefighting, respiratory protective diving operations.breathing air compressor is a compressed cylinder filling the entire device to a pressure of 225 bar or 330 bar. Compressor three-cylinder, 3 compression, air-cooled, reciprocating piston compressor.
The drive device using a three-phase or single-phase motor.
2.Major Components of breathing air compressor:
1. compressor
2. driving device
3. filter components
4. Filling components
5. backplane and chassis.
working pressure 300bar
final safety valve pressure 330 bar
sound pressure 86dB(A)
noise 99 dB(A)
compressor ——
glade 3
air cylinder 3
first class air cylinder 60mm
second class air cylinder 28mm
third class air cylinder 12mm
piston stock 24mm
First class intermediate pressure 6.5 bar
second intermediate pressure 65 bar
Compressor oil 360cm3
Ambient temperature range +5~45℃
AIR COMPRESS The maximum tilt angle 10°
Driving Device three-phase alternator Single-phase AC motor
working voltage 380V, 50Hz 230V, 50Hz
power 2.2KW
sppeed 2850 ROLL/MIN 3000 ROLL /MIN
SHELL PROTECTION IP54 IP44
