Click on the image to view the original image

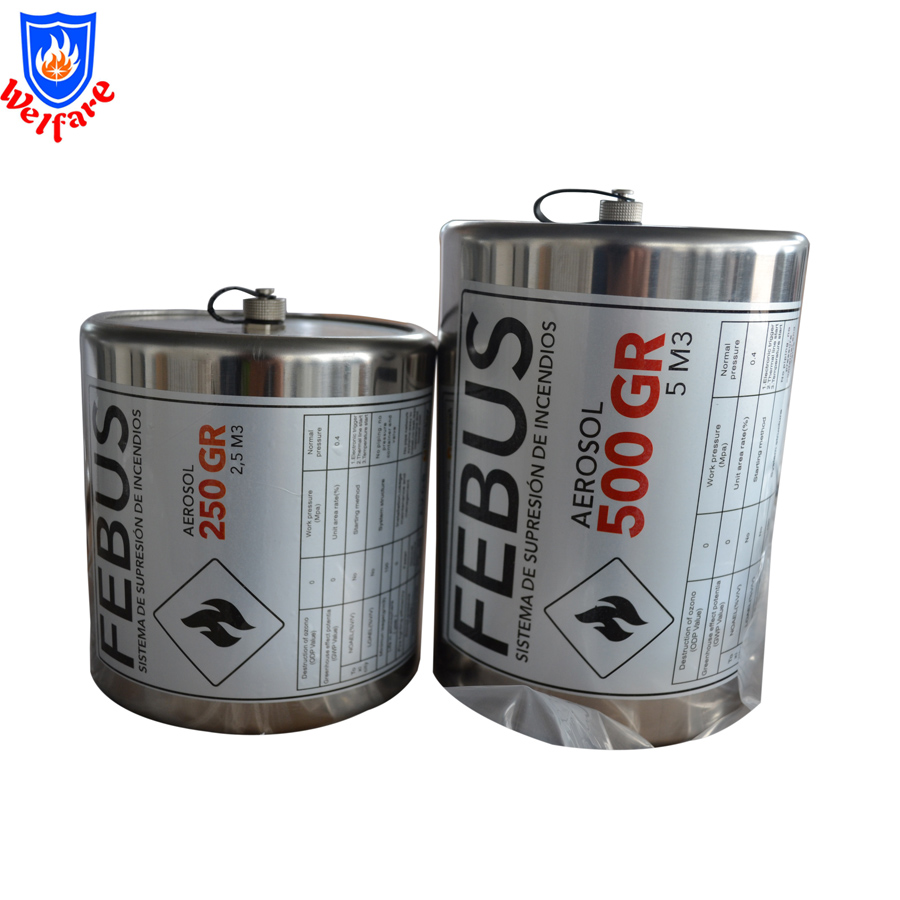

| 1.500g Aerosol fire extinguisher main specification: |
Mass of extinguishing material 500gr
Dimentions D127*185
Activation Method Electrical Activation
Protective Volume 5.00m³
Gross Weight 3500gr
Net Weight 500gr.
Operation(Discharge) Time 22 seconds.
Shell Material 304 stainless steel polishing USD300
Class of Fire:A,B,C,F
Tempreature range:-40~ +108 ℃;Extinguishing time:≤40s;Spout temperature:≤200℃;
Minimum starting current:≥250mA/5mS;Maximum safety current:≤150mA/5min;
Fire suppression time:≤60S;Use life:10years more;Fire suppression type:A,B,C,F;
Material:304 stainless steel,nontixc,oncorrosivity,no electrical conductivity, no damage to
atmospheric ozone layer, it is good green envirenmently product
| 2.Aerosol fire suppression system: |
What is Aerosol?
In general saying it is a small the Solid liquid particles to be dispersed in a gas formation in the stable forms system .
the nature of the common aerosol -cloud , smoke , fog etc
Aerosol particles size in the more than 10-5~10-1 M class , with gas liquidity , can spread alll around obstruction submerged
| 3.Aerosol fire extinguisher where to use: |
construction industry;communication;eletrical power;metallurgy industry;petrochemcial industry;Transportation;Prevent car or Bus burning
| 4.Aerosol fire extinguisher all model: |
E:Electric Activation
TH:Thermal Activation
G:Temperature Cable Activation
Model No. | Activation Type | Elixir Weight (g) | Protection Volume(m³) | Discharge Time(s) | Size(mm) | Equipment Weight(kg) | Type of fixed bracket |
3000E | E | 3000 | 30 | 38 | d219*295 | 12.5 | U Shape |
2500E | E | 2500 | 25 | 32 | d219*265 | 11.1 | U Shape |
2000E | E | 2000 | 20 | 25 | d219*235 | 9.8 | U Shape |
1500E | E | 1500 | 15 | 19 | d219*205 | 8.4 | U Shape |
1000E | E | 1000 | 10 | 18 | d168*235 | 6.5 | U Shape |
750E | E | 750 | 7.5 | 14 | d168*205 | 5.4 | U Shape |
500E/TH/G | E,TH,G | 500 | 5 | 22 | d127*185 | 3.5 | L Shape |
250E/TH | E,TH,G | 250 | 2.5 | 10 | d127*145 | 2.6 | L Shape |
QH-150E/TH/G | E,TH,G | 150 | 1.5 | 12 | d101*125 | 1.4 | L Shape |
QH-100E/TH/G | E,TH,G | 100 | 1 | 15 | d76*125 | 0.94 | L Shape |
60E/TH | E,TH | 60 | 0.6 | 8 | d76*105 | 0.84 | L Shape |
30E/TH | E,TH | 30 | 0.3 | 6 | d50.8*95 | 0.36 | L Shape |
| 5.Aerosol fire extinguisher packing details: |
1pc packng into white carton,use styrofoam protect the goods,avoid break,4pcs into brown carton
