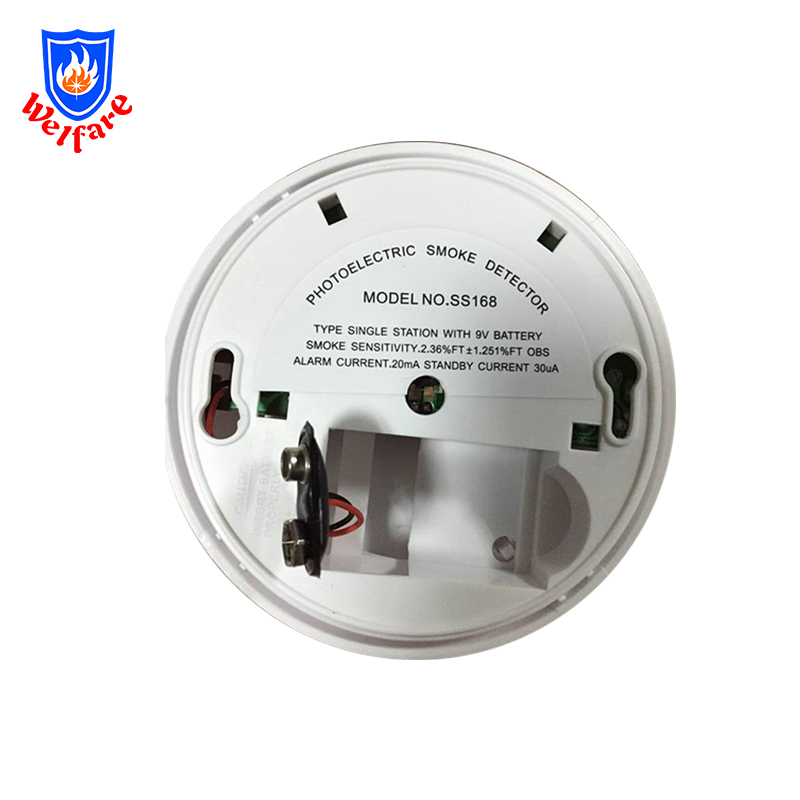

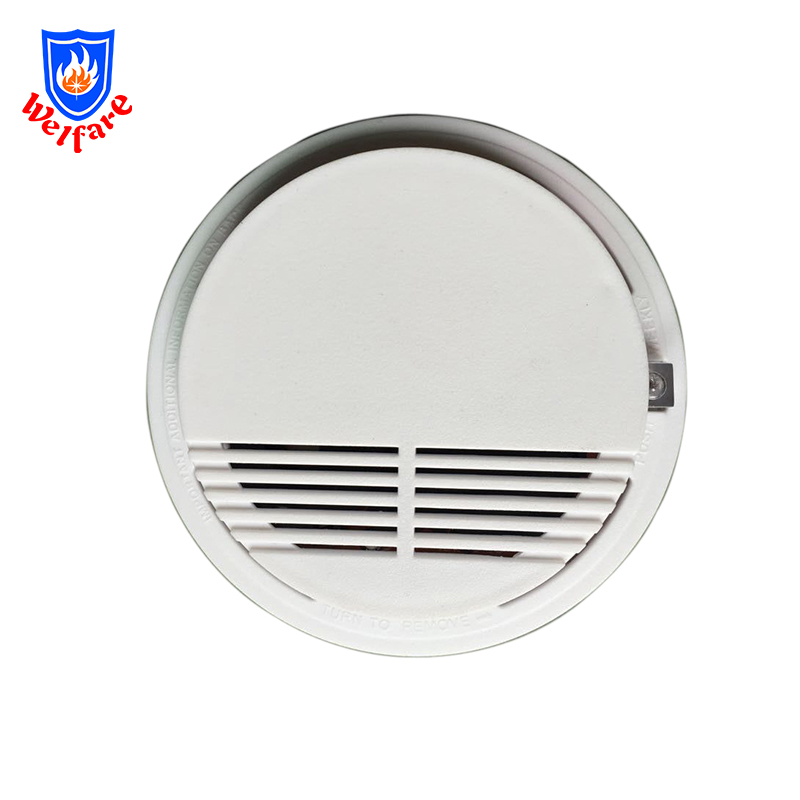

Photoelectric smoke alarm detector
General : Smoke alarms sound horn when they detect smoke.
everthing the smoke from reaching alarm obastructs an early alarm
| Specification: |
| 1.work voltage:DC9V |
| 2.quiescent current:≤10uA |
| 3.alarm current:≤12mA |
| 4.alarm loudness:85dB |
| 5.working temperature:-10℃~+60℃ |
| 6.working humidity:≤95%RH |
| 7.overall dimensions:100*30mm |
| 8.weight:0.16kg |
| 9.mount type:ceiling installation |
| How to install? | ||||||||||||
| 1.Attach the mounting bracket to the ceiling or wall; | ||||||||||||
| 2.Install the battery(included).Match the terminals on the end of the battery with the terminals on the unit | ||||||||||||
| Match"+" to "+"and "-" to "-".Push the battery in until it snaps in securely and cannot be shaken loose | ||||||||||||
| 3.Attach the smoke alarm to the mounting bracket.Turn the smoke alarm clockwise(right) until it snaps into place | ||||||||||||
| 4.Check immediately after finishing the installation that the smoke detector works properly by pressing the test | ||||||||||||
| button for at least 2seconds. |
