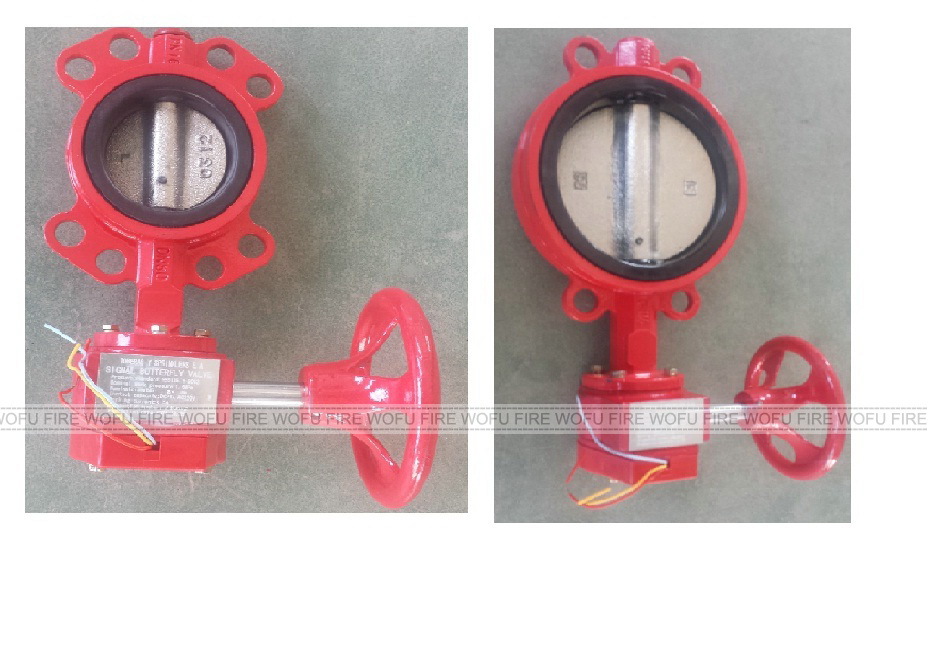

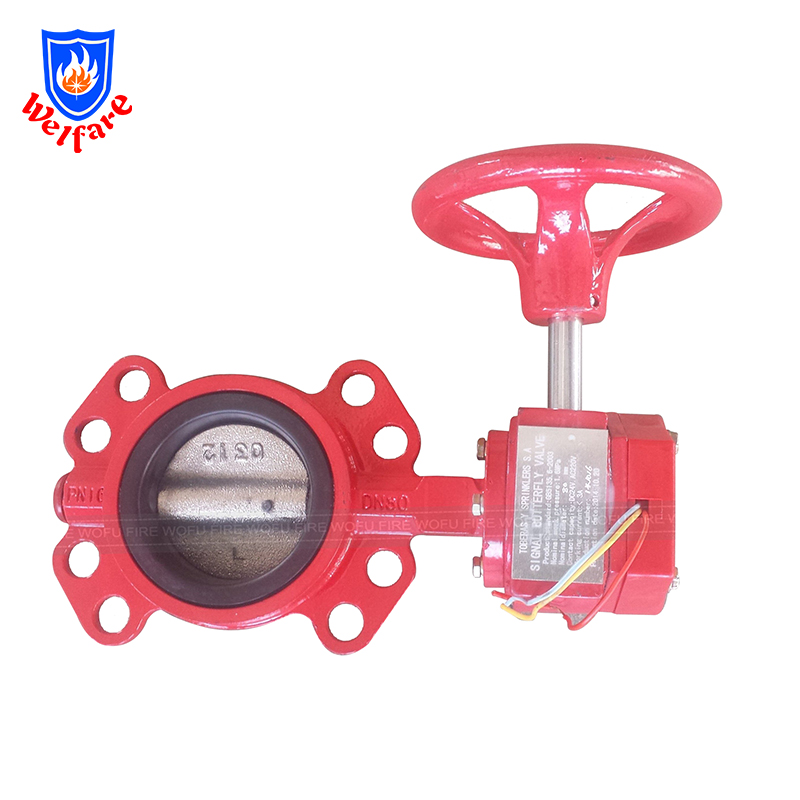

economic price for fire fighting electric signal butterfly valve, worm type signal butterfly valve
butterfly valve
It is one of the necessary accessories for automatic sprinkler system, as ZS automatic sprinkler control valve, a valve position signals transmit to control management, so as not to cause wrong operation, improve security, is the fire fighting water supply and drainage pipeline control valves.
Details of butterfly valve
1.Electrical power: DC 24V<3A
2.Working temp.: -40°C~+70°C
3.Working pressure: 1.2Mpa
4.Test pressure: 2.4Mpa
Butterfly valve main technical parameters:
| Model | Nominal diameter | Pressure | Switch capacity | A | B | C | D |
| ZSXF-50-D | DN50 | 1.6MPa | DC24V 1A | 275 | 204 | 165 | 125 |
| ZSXF-65-D | DN65 | 1.6MPa | DC24V 1A | 200 | 204 | 165 | 145 |
| ZSXF-80-D | DN80 | 1.6MPa | DC24V 1A | 330 | 215 | 165 | 160 |
| ZSXF-100-D | DN100 | 1.6MPa | DC24V 1A | 357 | 215 | 165 | 200 |
| ZSXF-125-D | DN125 | 1.6MPa | DC24V 1A | 387 | 235 | 165 | 220 |
| ZSXF-150-D | DN150 | 1.6MPa | DC24V 1A | 415 | 245 | 165 | 250 |
| ZSXF-200-D | DN200 | 1.6MPa | DC24V 1A | 555 | 340 | 128 | 295 |
