hfc-227ea Fire extinguishing system with all accessories
| 1.hfc-227ea fire extinguishing system breif introduction: |
HFC-227ea is a clean extinguishing agent, which would completely vaporized in the air, and well insulated. Its total flooding mode is applicable to electric fire, liquid fire or fusible solid fire, solid surface fire, gas fire which gas supply is cut before extinguishing. And it is able to protect computer rooms, communication rooms,substation rooms, hi-tech device rooms, generator rooms, gasoline storerooms, combustible chemical storerooms, libraries, data rooms, archives, treasuries, etc. We manufacture HFC-227ea system that is well structured, reliable, and widely applied to computer rooms, archives, program control exchange engine room, TV broadcast center, financial organizations and government departments.

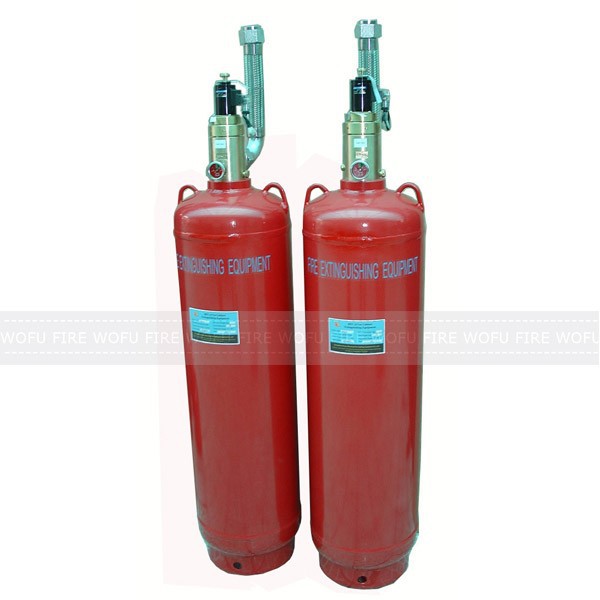

| 2.hfc-227ea fire extinguishing system single cylinder design: |

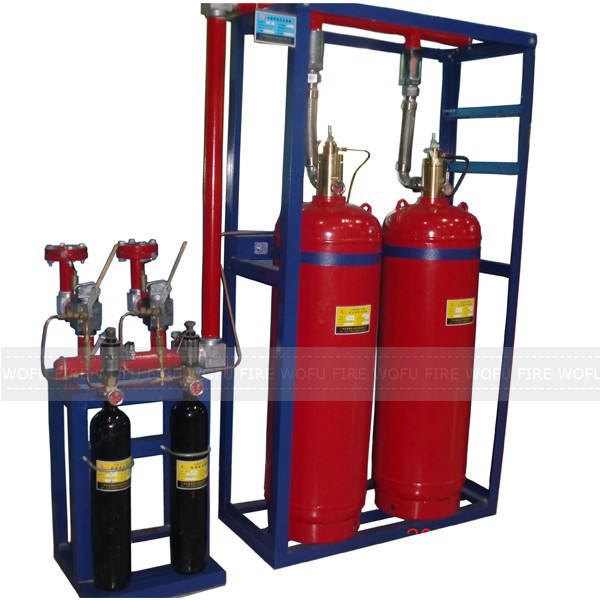

| 3.hfc-227ea fire extinguishing system all accessories: |
All components made up hfc-227ea system:cylinder with valve,electrical actuator,flexible hose,liquid one way valve,manifold pipe,pressure switch,safety valve,cylinder racket,elbow,flange,pilot cylinder,check gas pipe,no return valve,nozzle,etc...and fire alarm parts.
| 4.hfc-227ea fire extinguishing system order instruction: |
HFC-227ea Fire Suppression system is one of Special Design and Manufacture products .
Before we make offer , we need your detailed information support to calculate the qty of Cylinder , weight of gas ,pipe size, nozzle ...
if the system you requested need design or not ?we design them free charges ,
We need following information to make design for your engineer projected
1>,What’s your protected subject :
Telecommunication Facilities________
Computer operations _______
Control rooms __________
Shipboard (marine )system ________
Rare book Libraries ____________
University and Museum _____________
Art Galleries _________________
Petrochemical installations _________
Medical Facilities and Pharmaceutical________
2>,do you have room "s layout or drawing
yes ( if yes please send us your attachment )
2. no (if no please tell us below protection status)
A room size : length(X width(m)X height ( m) (M)
B raise floor(can not greater than 30mm): _______(M ), or NO _____
C ceiling , height ____ (M) , or .no need consider
3>do you need a pressure release device ,yes .
4> storage cylinder must be placed in a separate room and towards the door opening direction
5> . HFC-227ea system select
A , Dependable system one system protect a single room(no need flow check valve)
B. Muliti-hazard system (One system protect multiple rooms(use selection valve)_________
6>.do you need fire alarm products ( control panel ,detectors , gas lamp ) yes no
7>.do you need pipe net yes no
8 >.do you need coupling and pipes yes . no
9>.do you need nozzle yes no
If nozzle requested please fill blew
Size: 1” 1.5” 2” 2.5”
Thread : Male female
Nozzle holes number-------PCS ,holes diameter ____mm
