Home > Products > 10LBS 4.5KG CO2 Carbon Dioxide Fire Extinguisher with big horn

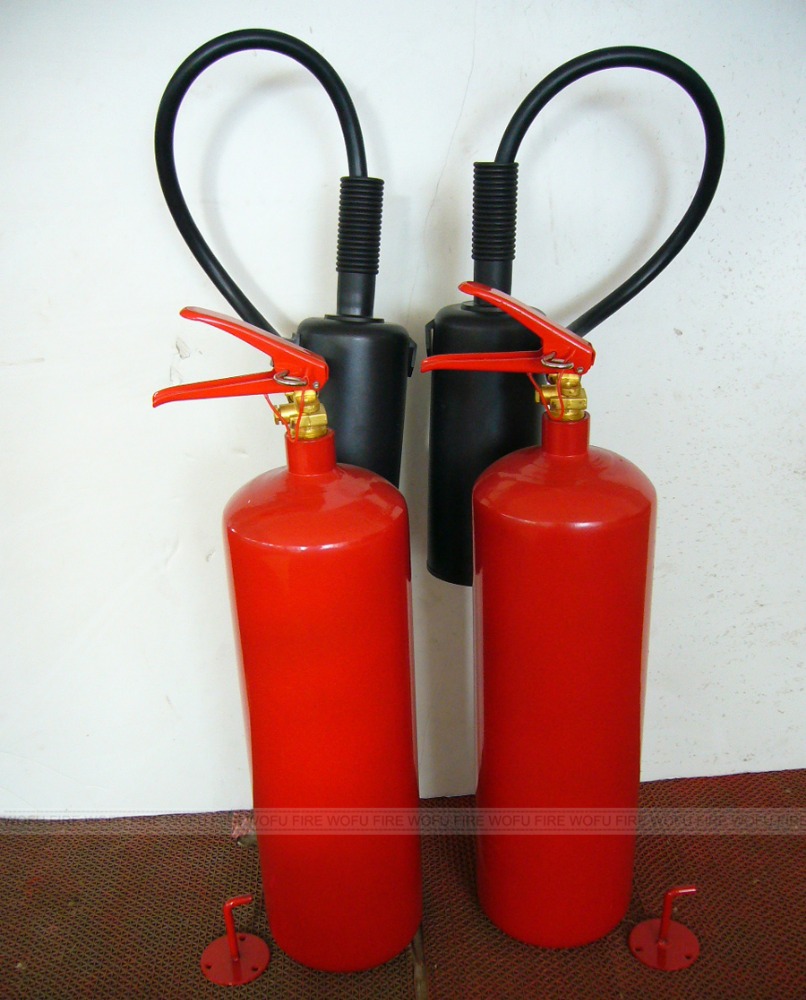

10LBS 4.5KG CO2 Carbon Dioxide Fire Extinguisher with big horn
Click on the image to view the original image
Product： views：210LBS 4.5KG CO2 Carbon Dioxide Fire Extinguisher with big horn
Branch： Welfare
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:08
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Welfare
Model Number:
10lbs
Cylinder Size:
D152*520mm
Cylinder thread:
PZ27.8
Thickness ::
5mm
Material:
carbon steel CK45
Valve:
Brass body, red handle
Hose:
black rubber hose with big horn
Siptube:
M10*1*460mm
Parts:
Red round hook
Color:
Red 7325 , or Black
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
export standard package
Port
ningbo

10LBS 4.5KG CO2 Carbon Dioxide Fire Extinguisher



Type of Portable Carton steel 10lbs CO2 Fire Extinguisher ,cylinder color in  Black or red ,Valve in PZ27.80 or PZ25.40.   The material , we normally use carbon steel CK45

Hot sale in South American



1. 10lbs CO2 fire extinguisher main specification:

AGENT99% pure CO2 gas
CYLINDER SIZE: DIA*HEIGHTD152*520mm
CYLINDER THREADPZ 27.8
THICKNESSCK45-5.0mm
VALVEbrass body with red middle handle, with hanger loop, thread: W21.7
HOSEblack rubber hose, with big horn
SIPHON TUBEM10*1*460mm
BRACKETred round hook
CYLINDER PAINTING7325 Red Painting
TEMPERATURE RANGE -10°C~+55°C
WORKING PRESSURE150Bar
TEST PRESSURE250Bar
DISCHARGE TIME≥ 9S
DISCHARGE RANGE≥ 2M



2.10LBS co2 fire extinguisher accessories:

brass valve with red middle handle,outlet thread W21.7

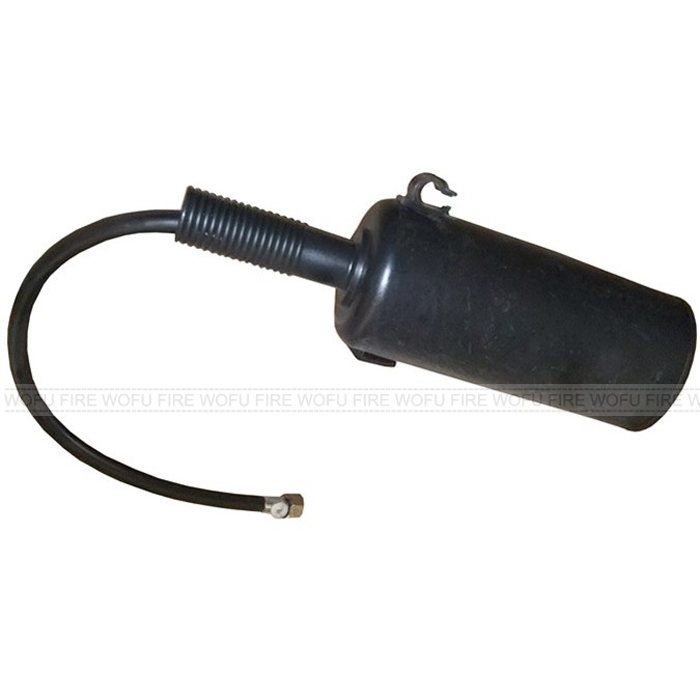

Rubber hose with horn
Siphon tube, PVC, thread M10*1, length:460mm
Red round hook
Red plastic sealing

3.10LBS co2 empty fire extinguisher packing details:

QTY/CTNN.W./CTNG.W./CTNCBM/CTNCTN SIZE
1PC11.00KG11.60KGS0.025M363.5*25*16CM

4.Operation instruction for co2 Fire Extinguisher:

1. Should wear a glove when using to avoid the skin touch horn and hose, to prevent frostbite;
2. Quickly take extinguisher at a site where 5 meters away from the fire;
3. Lay down the cylinder, pull out the safety pin;
4. Hold the handle with one arm and push the pressing handle with the other;
5. Aim the nozzle of the fire, sweep side to side;
6. Keep upright position during use, do not lying, upside down

5.Loading and Shipment of Fire Extinguisher:

Fire extinguisher are dangerous goods under IMO 1044 class 2.2 by international sea bureau so all the shipment must shipped as DG cargo.
1. All cartons must stick IMO green label.
2. All container must pull green net
3. Danger shipping mark "1044"
