- Place of Origin:
- Zhejiang, China
- Brand Name:
- weifare
- VALVE:
- Brass
- N.W./CTN:
- 23KG
- Neck Ring thread::
- PZ 27.8
- Hose thread ::
- W21.8*14
- Siphon Tube thread ::
- M10*1
- Supply Ability:
- 30000 Piece/Pieces per Quarter
- Packaging Details
- 50 pcs/ctn
- Port
- NING BO

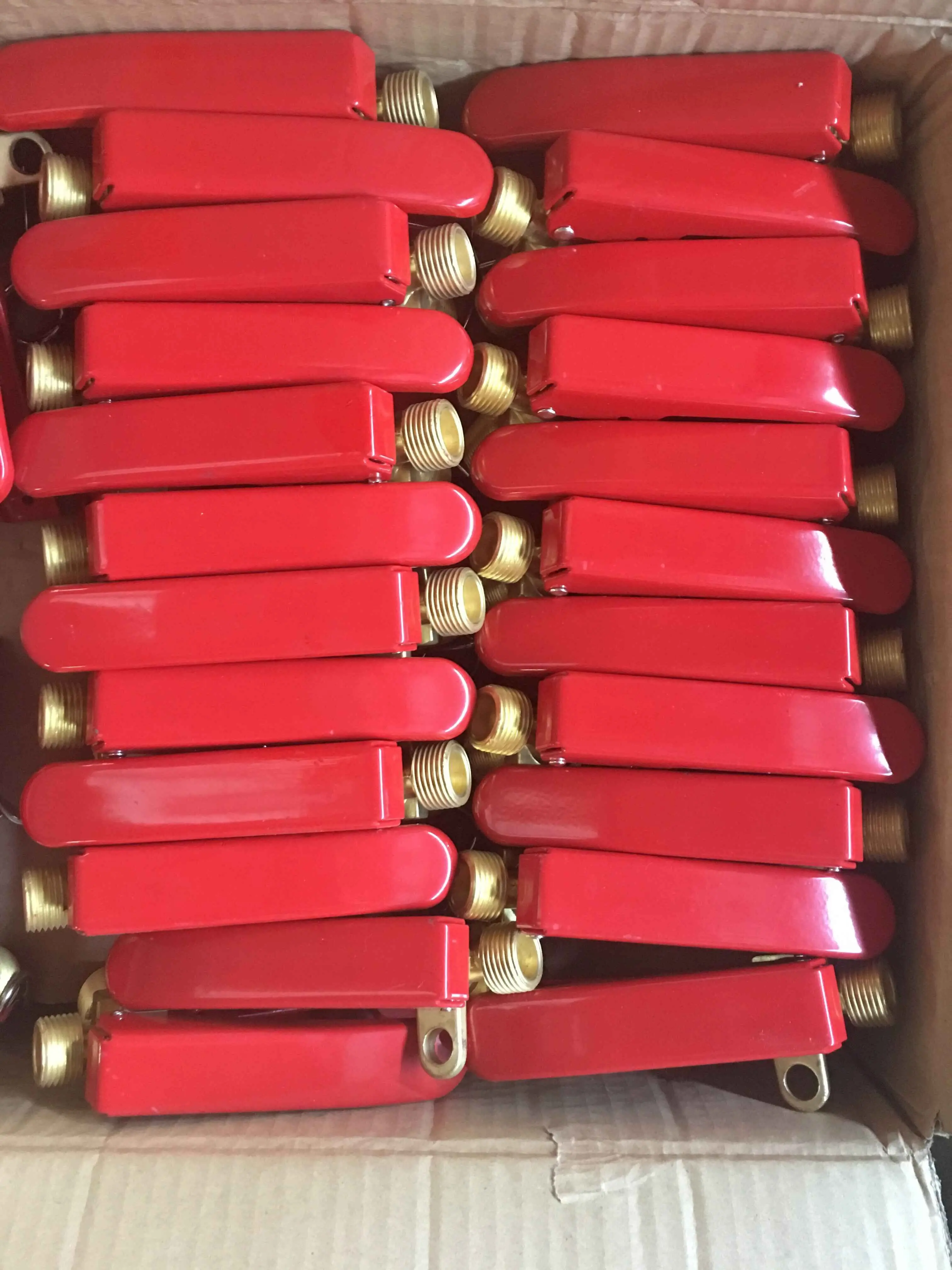

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 15 To be negotiated

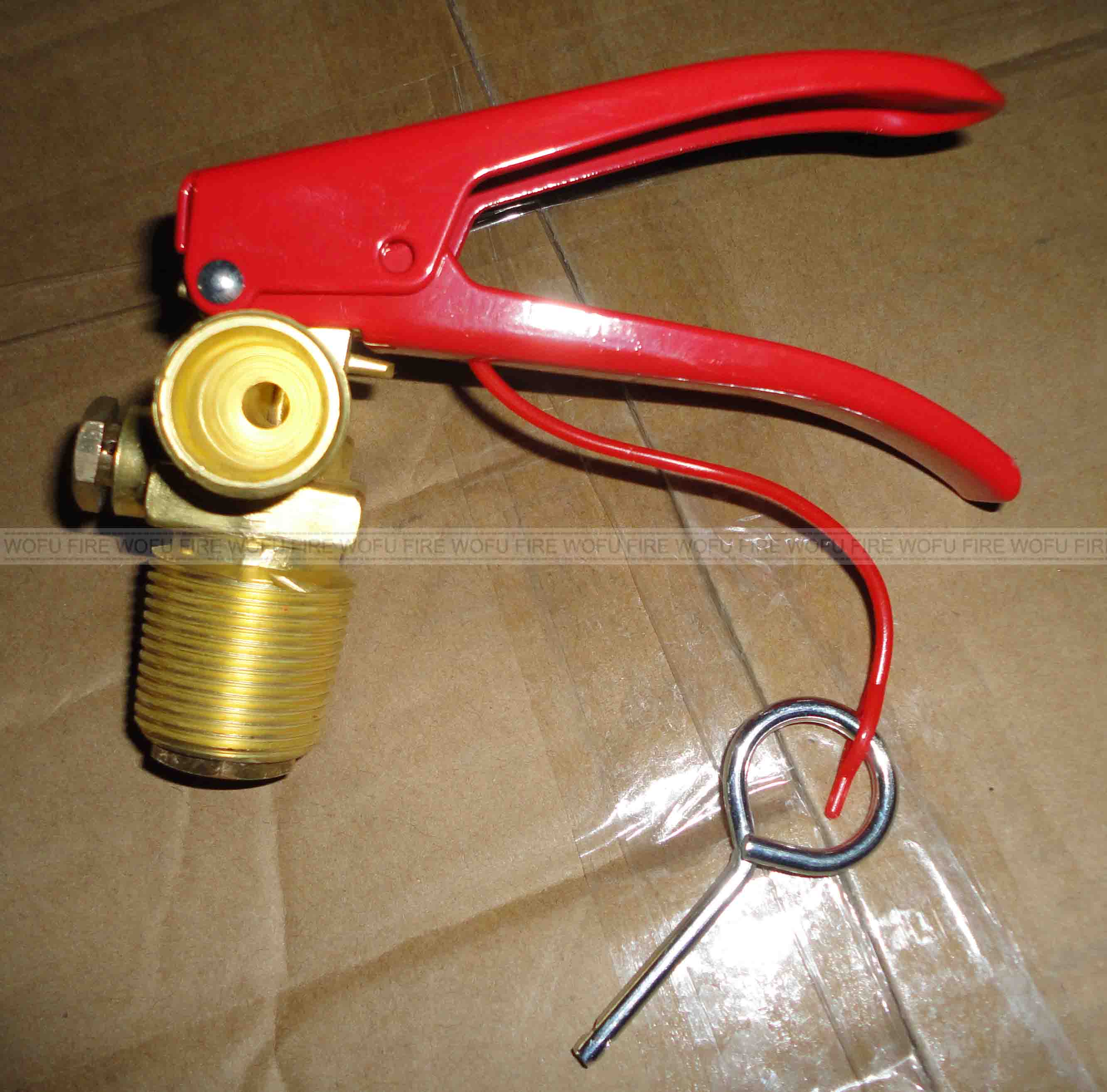

| CO2 Valve PZ 27.8 for 5KG CO2 Fire Extinguisher |
Valve Function :
Filled, sealed inside gas and powder of fire extinguisher
carry fire extinguisher when be used
Main Spefication :
Material : Brass body with hanger loop
Handle : Red steel middle size
Safety Pin : Galvanized iron
Cord : Red rubber
Working Pressure : 150Bar
Test Pressure : 250Bar
Other Specification :
Neck Ring thread: PZ 27.8
Hose thread : W21.8*14
Siphon Tube thread : M10*1
Packing information :
50PCS/CTN
N.W : 19.5KG
G.W : 20KG
Carton size : 45*27*25cm
Why need one Quality Valve ?
if any leakage will cause gas leakage
Whole fire extinguisher can not use
How to choose one Quality Valve ?
1. FIND THE GOOD SEALED , RUBBER , AVOID RUBBER LEAKAGE
2. WEIGHT DECIDE THE PRICE , IN NORMALLY CONIDATION , MORE HEAVY DUTY , MORE STRONGE MORE EXPENSIVE
3. VALVE MUST TESTED BEFORE INSTALLATION
4. HOW TO TEST , AFTER FILLED GAS , DIPINTO WATER , THERE ARE NO BULB GAS COME OUT IF NECK RINGOT
Other information about price :
The valve price normally from the weight
if client want cheaper price , the weight can be reduce a little
But must meet standard and working pressure testing

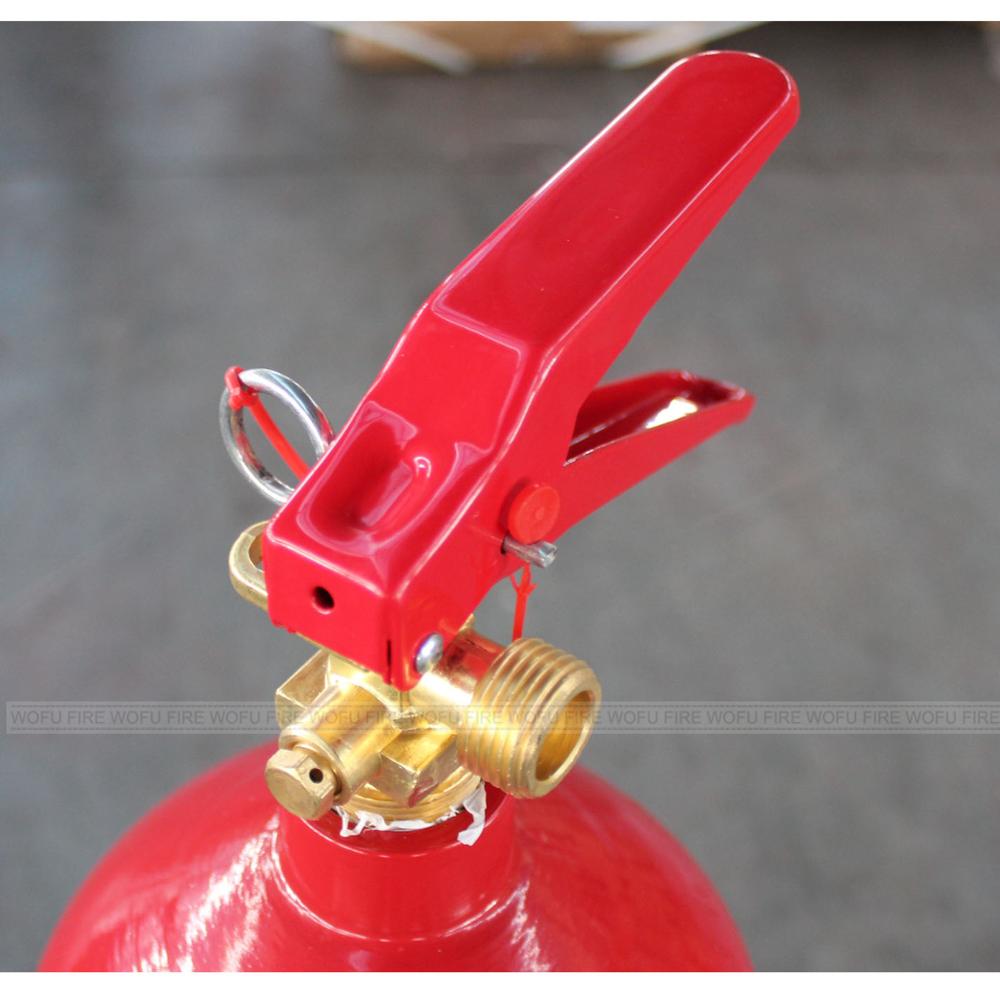

Details Picture and other information for CO2 Valve PZ 27.8
