- Place of Origin:
- Guangdong, China
- Brand Name:
- WELFARE
- cylinder size:
- D360*1400mm
- cylinder stored pressure:
- 25bar or 42bar
- Valve size:
- 2"
- Materical:
- manganese steel
- Discharge time:
- less 10s
- Filling desity:
- ≤950kg/m3
- Polit valve Power:
- 6.0±1.0 Mpa(20℃)
- working power:
- AC 220VDC 24V 1A
- Working Temperature:
- -10 Cto 55C
- Working means:
- manual , auto, eletrical
- Supply Ability:
- 100 Set/Sets per Month
- Packaging Details
- Wooden case(Non fumigation)
- Port
- Guangzhou
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 10 To be negotiated

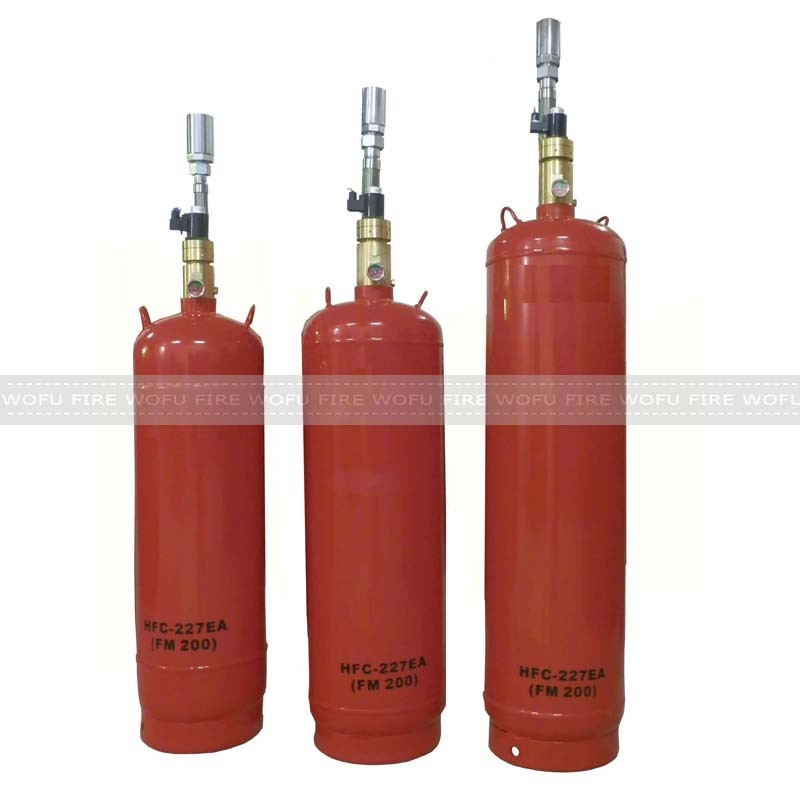

1.120L HFC-227EA cylinder main specification: |
1 Storage of cylinder: 120L
2.Main parts:cylinder with valve,electrical actuator,flexible hose,liquid one way valve
3.Storage Pressure: 2.5MPa/4.2MPa(20℃)
4.Maximum Working Pressure (50℃): 3.4MPa/5.3MPa
5.Operating Method: electromagnetic starter; emergency mechanical starter
6.Nitrogen pressure of the electromagnetic driving device: 6.0±1.0MPa (20℃)
7.Starter power of the electromagnetic driving device: DC24V/1.5A
8.Extinguishing agent filling density: ≤1150kg/m3
9.Extinguishing agent spurting time: ≤8s
10.Protective Area Temperature: 0℃~50℃
11.Cylinder spurting allowance: ≤2kg/bottle
12.Cylinder-room temperature requirement: -10℃~50℃

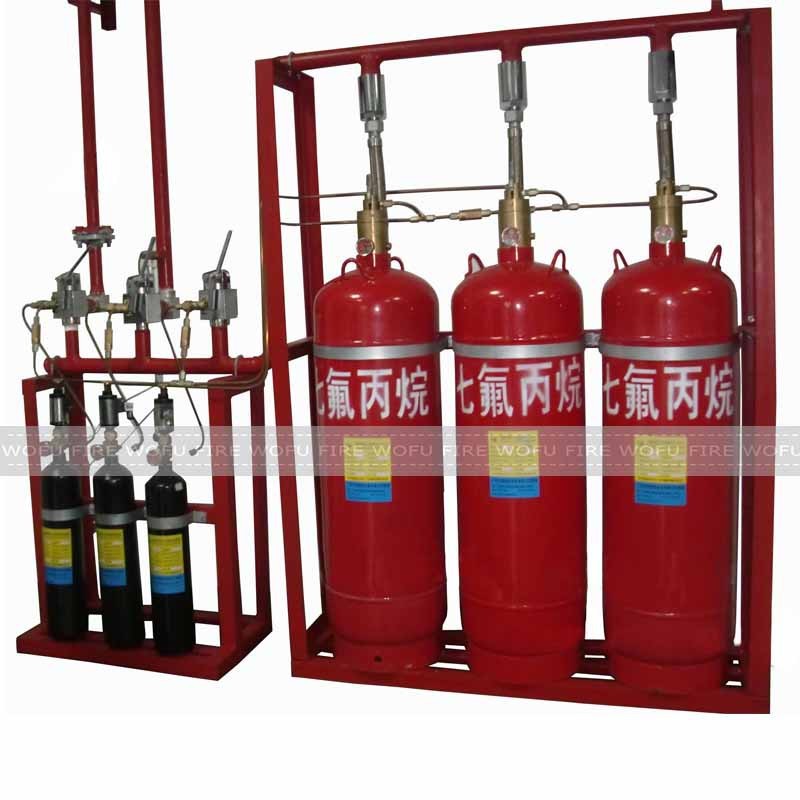

2.HFC-227EA fire system main parts: |
Red cylinder with valve, solenoid valve, gauge, flexible hose, liquid one way valve, manifold pipe, pilot cylinder, check gas pipe, check valve, safety valve, pressure switch, selector valve, elbow, flange etc.
| 3.HFC-227ea fire system shipping details: |
| Name | Qty | Valve size | Cylinder outsize(mm) | Cylinder weight(kg) | Weight (cylinder+valve+hose) | Wooden case size(mm) | Wooden case weight | Total weight |
| 120LTR HFC-227ea Cylinder+valve+solenoid valve+gauge+diptube+high pressure flexible hose | 1 | 2” | 360*1400*6 | 68 | 78 | 1800*410*500 | 31 | 111.5 |

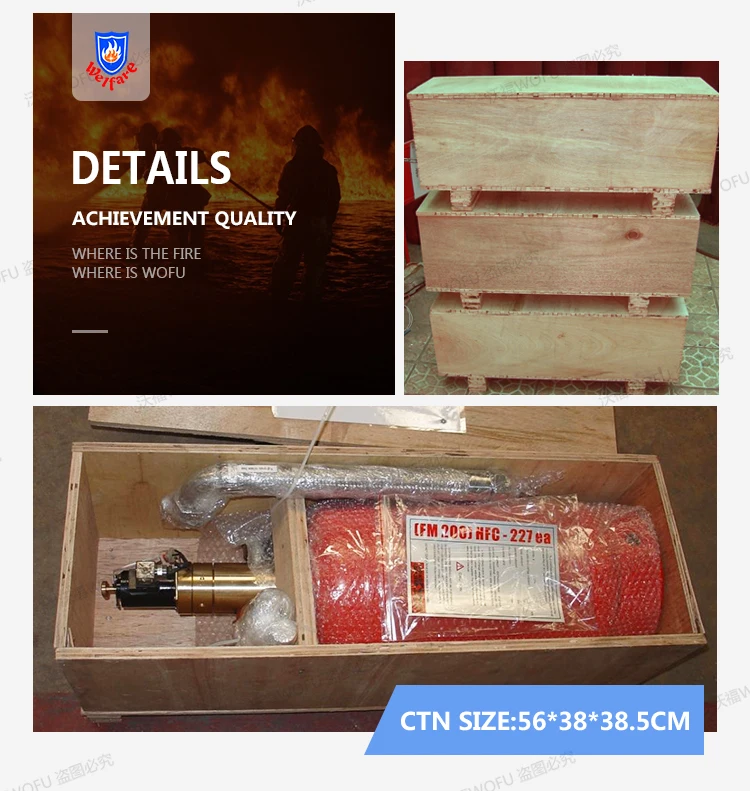

1.How the be packing
Use Fumigation-free wooden Case
NOTED: if filled gas, the shipment should Under IMO terms, as Dangerous cargo shipping
