1.TECHNICAL DATA :

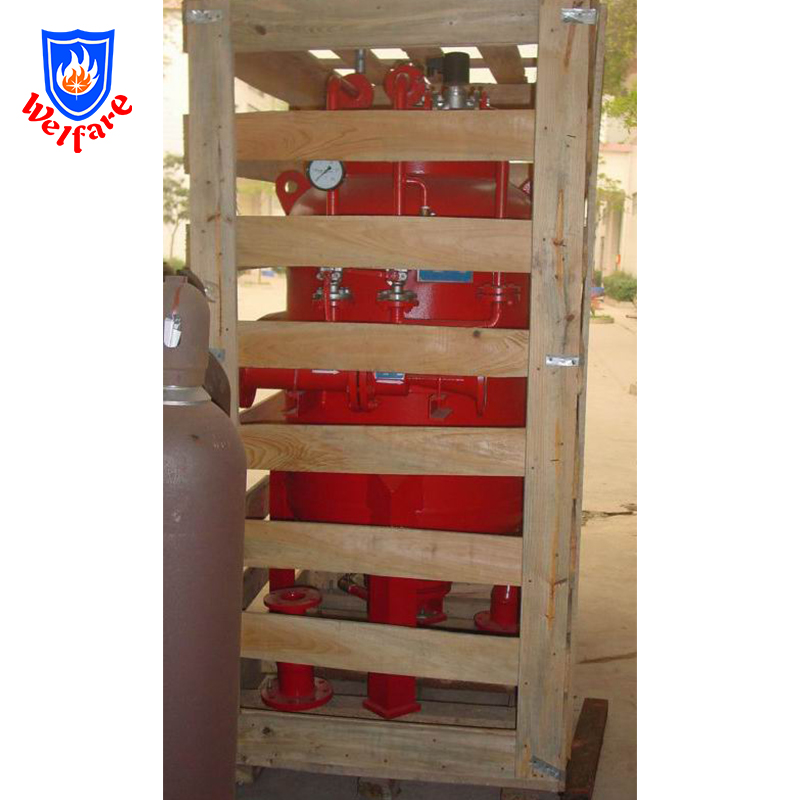

TANK MOUNTING TYPE Vertical or Horizontal
CONCENTRATE For Vertical Tank :
STORAGE 500 litres to 5000 litres.
CAPACITY (200 TO 1320 Gallons(US))

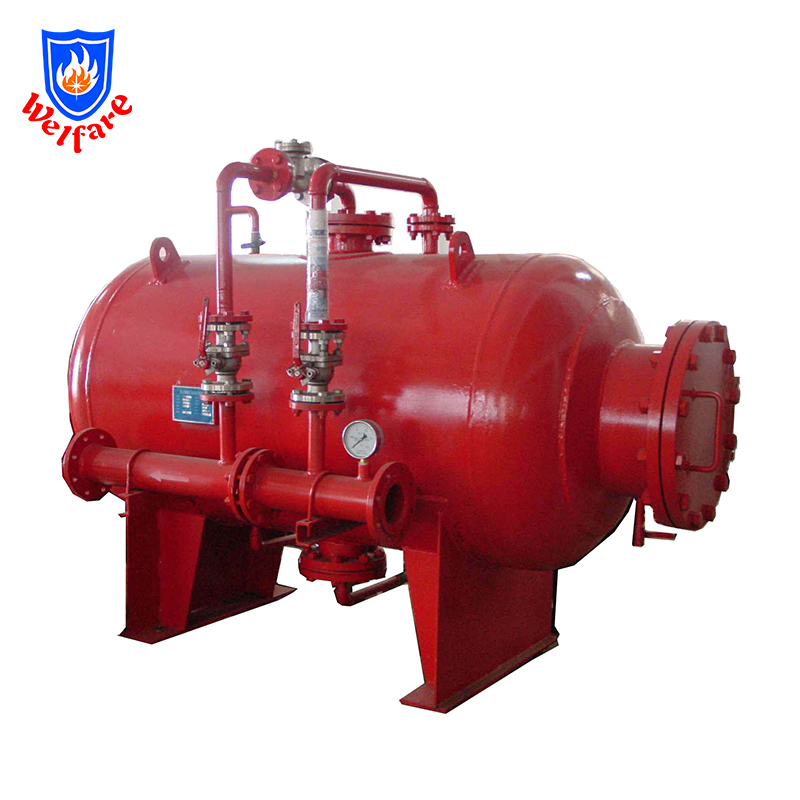

For Horizontal Tank :
500 litres to 10000 litres.
(200 to 2640 Gallons (US))
RATED PRESSURE (0.3mpa—1.2mpaI)
FACTORY TEST 18 Bar (261 PSI)
PRESSURE
VESSEL Carbon steel as per ASME
CONSTRUCTION Code Section VIII for unfired
pressure vessels.
BLADDER Thermo Plastic,Mullen burst
presure +800 PSI.
Thickness 1.44 + 0.127 mm
CENTRE TUBE PVC
EXTERNAL PIPING Water side: Carbon steel seamless pipe sch 40.
Foam concentrate side: SS sch 40
VENT AND DRAIN Ball valve (Bronze / SS )
OPTIONAL Sight gauge with shut off and drain valve, ladder and
concentrate supply control valve.
FINISH Epoxy red painted.
2.APPLICATION
The Bladder Tank Foam Proportioning System utilises
the water pressure to inject foam concentrate into a
water supply and automatically proportions foam
concentrate over wide range of flow and pressure, with
very low pressure drop. This system does not require
concentrate supply pump.
