Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- NONE
- material:
- maganest Steel
- valve:
- brass 1"
- color:
- Red Epoxy polyster or red polyster coating
- volume:
- HFC-227ea40L
- cylinder size:
- h:1200mmd:250mmthickness:6mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1350X320X320 cm
- Single gross weight:
- 200.0 kg
- Package Type:
- Wooden Case

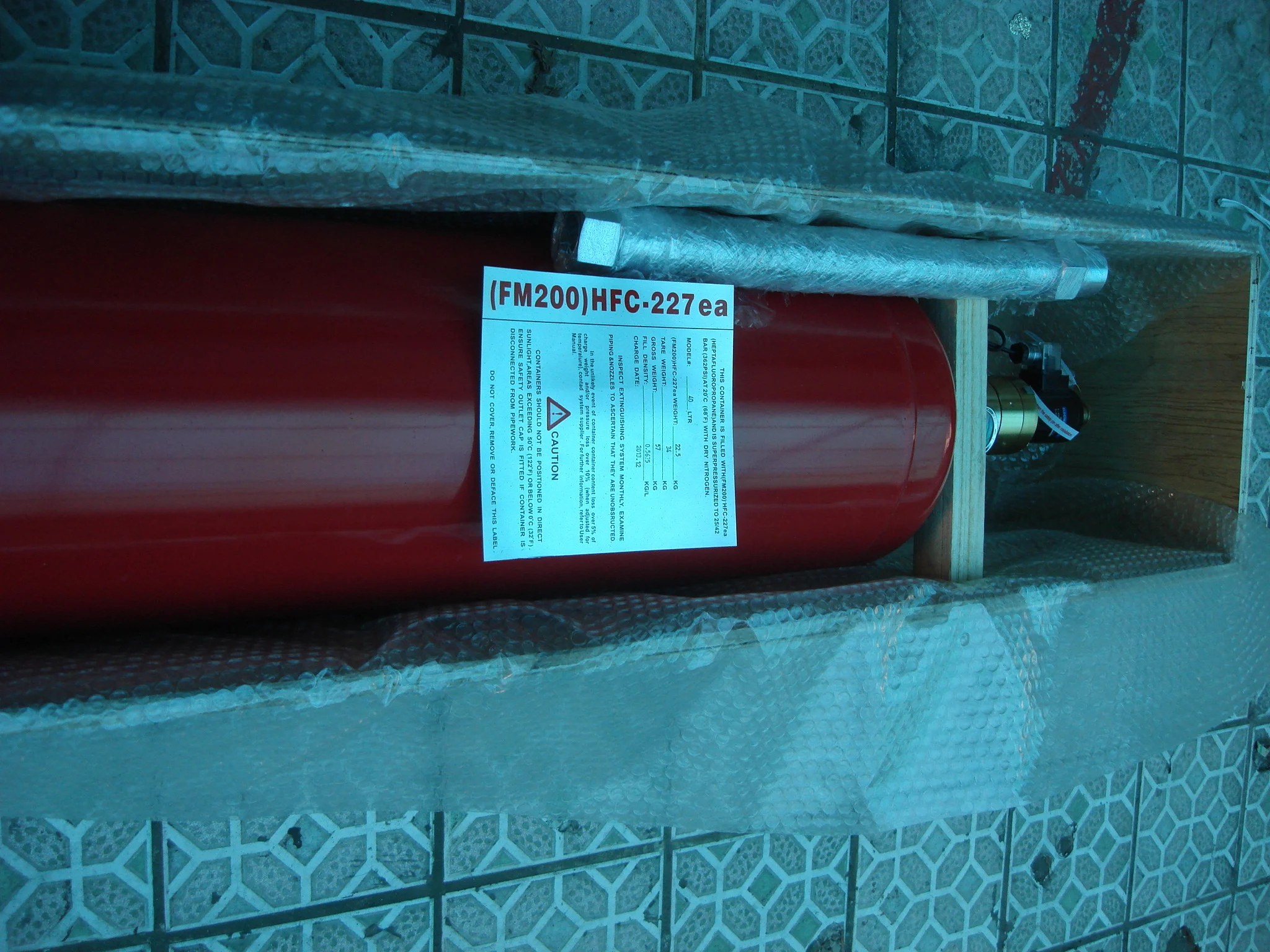

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 10 To be negotiated

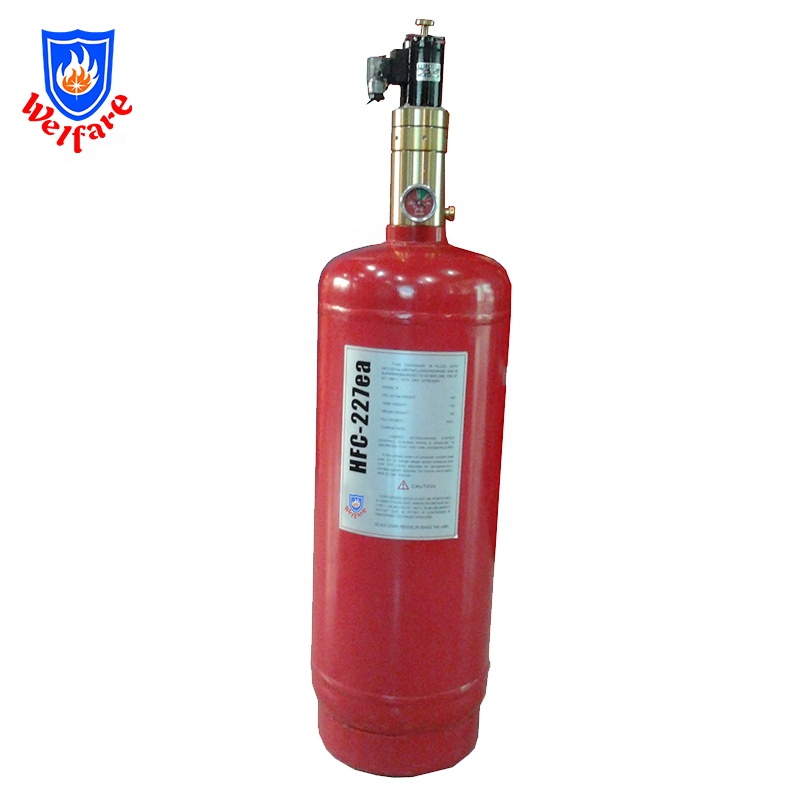

40ltr HFC-227ea fire extinguishing system cylinder
1.HFC-227EA Gas fire extinguishing system introduction: |
HFC-227ea is a clean extinguishing agent, which would completely vaporized in the air, and well insulated. Its total flooding mode is applicable to electric fire, liquid fire or fusible solid fire, solid surface fire, gas fire which gas supply is cut before extinguishing. And it is able to protect computer room, communication room, substation room, hi-tech device room, generator room, gasoline storeroom, combustible chemical storeroom, libraries, data room, archives, treasuries, etc. We are manufacture HFC-227ea system that is well structured, reliable, and widely applied to computer rooms, archives, program control exchange engine rooms , TV broadcast center, financial organizations and government departments.
2.HFC-227EA Gas fire extinguishing system main technical parameters: |
2.1 Storage of cylinder: 40L/70L/100L/120L/150L/180L
2.2 Storage Pressure: 2.5MPa/4.2MPa(20℃)
2.3 Maximum Working Pressure (50℃): 3.4MPa/5.3MPa
2.4 Operating Method: electromagnetic starter; emergency mechanical starter
2.5 Nitrogen pressure of the electromagnetic driving device: 6.0±1.0MPa (20℃)
2.6 Starter power of the electromagnetic driving device: DC24V/1.5A
2.7 Extinguishing agent filling density: ≤1150kg/m3
2.8 Extinguishing agent spurting time: ≤8s
2.9 Protective Area Temperature: 0℃~50℃
2.9 Cylinder spurting allowance: ≤2kg/bottle
2.10 Cylinder-room temperature requirement: -10℃~50℃
