Wofu Fire & Security Equipment Co., Ltd. (Yongzhou City)

1.Design According to following Standard:

CHINA GB795. GB79G , GB410, GB14104 , NFPA-2001(U.S.A)

GA400-2002  "Testing Way and Performance of extinguishing system Parts "

Inside Gas : EX6288 describle NFPA2001

2.HFC-227ea is a clean extinguishing agent, which would completely vaporized in the air,

and well insulated. Its total flooding mode is applicable to electric fire, liquid fire or fusible

solid fire, solid surface fire, gas fire which gas supply is cut before extinguishing. And it is

able to protect computer rooms, communication rooms, substation rooms, hi-tech device

rooms generator rooms, gasoline storerooms, combustible chemical storerooms, libraries,

data rooms, archives, treasuries, etc. We manufacture HFC-227ea system that is well

structured, reliable, and widely applied to computer rooms, archives, program control exchange

engine rooms, TV broadcast center, financial organizations and government departments.

1. Storage of cylinder: 20L~450L

2. Storage Pressure: 2.5MPa/4.2MPa(20℃)

3. Maximum Working Pressure (50℃): 3.4MPa/5.3MPa

4. Operating Method: electromagnetic starter; emergency mechanical starter

5. Nitrogen pressure of the electromagnetic driving device: 6.0±1.0MPa (20℃)

6. Starter power of the electromagnetic driving device:  DC24V/1.5A

7. Extinguishing agent filling density: ≤950kg/m3

8. Extinguishing agent spurting time: ≤8s

9. Protective Area Temperature: 0℃~50℃

10. Cylinder spurting allowance: ≤2kg/bottle

11. Cylinder-room temperature requirement: -10℃~50℃

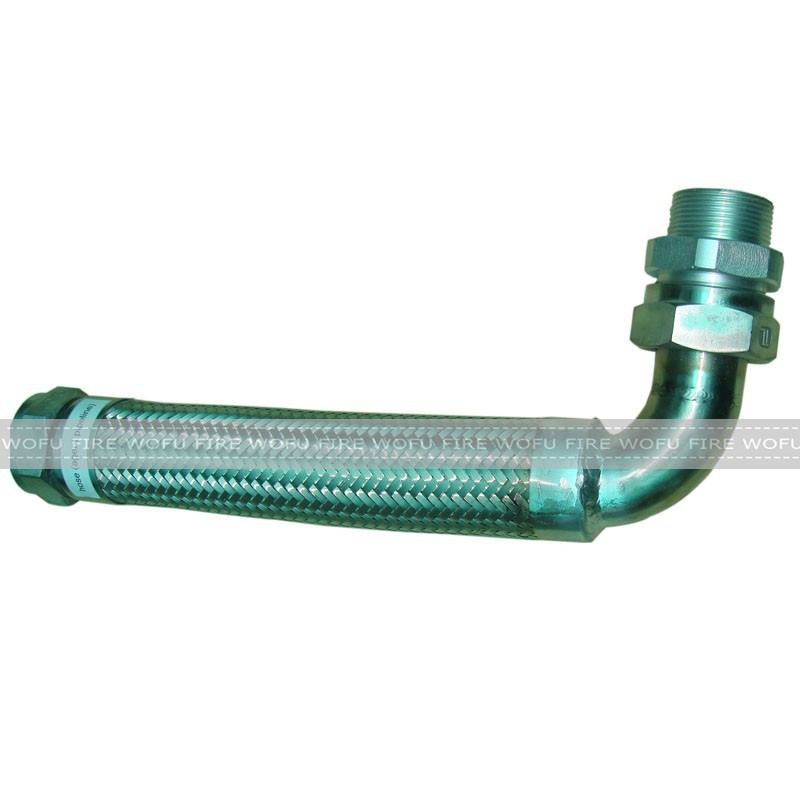

cylinder with valve, gauge, actuator, flexible hose, liquid one way valve, manifold pipe, safety valve, pressure switch, flange, elbow ,pilot cylinder etc...

 Use wooden case to packing,protect cylinder to avoid impact.

HFC-227ea Fire Suppression system is one of Special Design and Manufacture products .

Before we make offer, we need your detailed information support to calculate the qty of Cylinder, weight of gas ,pipe size, nozzle ...

if the system you requested need design or not ?we design them free charges ,

We need following information to make design for your engineer projected

1>,What’s your protected subject :

Telecommunication Facilities________

Computer operations _______

Control rooms __________

Shipboard (marine )system ________

Rare book Libraries ____________

University and Museum _____________

Art Galleries _________________

Petrochemical installations _________

Medical Facilities and Pharmaceutical________

2>,do you have room "s layout or drawing

yes ( if yes please send us your attachment )

2. no (if no please tell us below protection status)

A room size : length(X width(m)X height ( m) (M)

B raise floor(can not greater than 30mm): _______(M ), or NO _____

C ceiling , height ____ (M) , or .no need consider

3>do you need a pressure release device ,yes .

4> storage cylinder must be placed in a separate room and towards the door opening direction

5> . HFC-227ea system select

A , Dependable system one system protect a single room(no need flow check valve)

B. Muliti-hazard system (One system protect multiple rooms(use selection valve)_________

6>.do you need fire alarm products ( control panel ,detectors , gas lamp ) yes no

7>.do you need pipe net yes no

8 >.do you need coupling and pipes yes . no

9>.do you need nozzle yes no

If nozzle requested please fill blew

Size: 1” 1.5” 2” 2.5”

Thread : Male female

Nozzle holes number-------PCS ,holes diameter ____mm
