| Concealed Fire Sprinkler |
The reliable concealed sprinkler uses a proven quick response fusible element in a standard style sprinkler frame with a drop-down deflector. This assembly is recessed into the ceiling and concealed by a flat cover plate assembly. The flat cover plate is attached to the skirt using either 135°F (57°C) or 165°F (74°C) ordinary temperature classification solder. When the ceiling temperature rises, the solder holding the flat cover plate melts, the flat cover plate released thus exposing the sprinkler inside to the rising ambient temperature. The subsequent fusing of the element opens the waterway and causes the deflector to distribute the water. Any secure engagement between the cover plate and cup will assure that the drop-down deflector is properly located below the ceiling.
Flow Rate: 80 +/- 4
Material: Brass, Chrome plated
Thread: R 1/2" , R 3/4"
Buld Diameter: 3mm, 5mm
Response Temp.: 57, 68, 79, 93°C
Response Speed: Standard response
Type: Concealed
Glass Bulb Color: Orange, Red, Yellow, Green, Blue
Cover Color: White
Working Pressure: 1.2Mpa
Test Pressure: 3.0Mpa

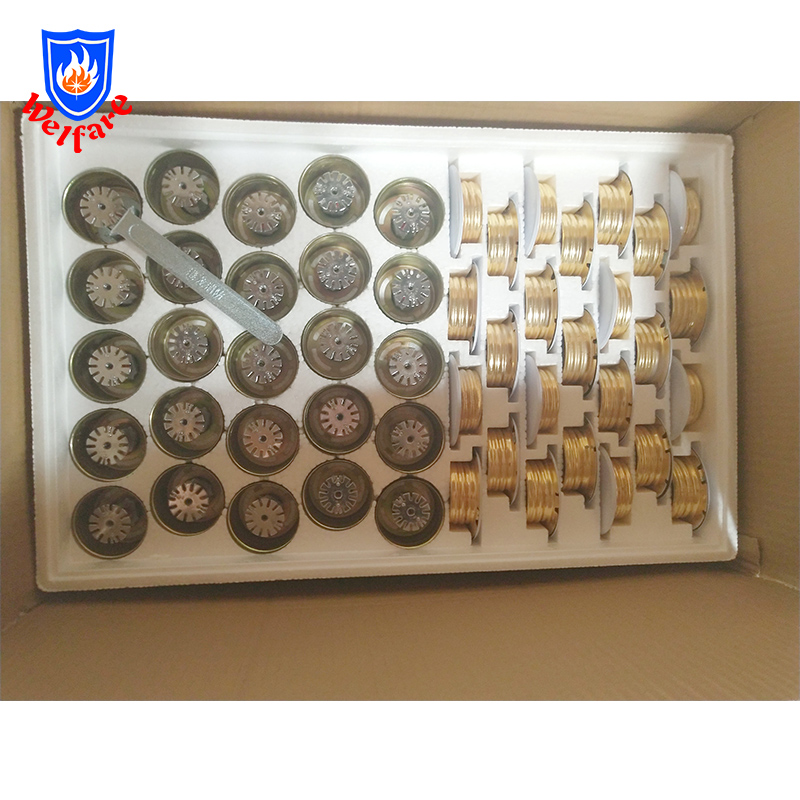

Packaging Details :
Packed with standard export carton box
Carton size: 48*48*28cm
1,000PCS/CTN
G.W: 16.5KG
