hfc-227ea cabinet fire protection system
| 1.HFC-227EA Cabinet fire protection system introduction: |
HFC-227ea fire extinguishing agent is a clean, low toxic, isolated, effective product which makes
no damages to the ozonosphere, it is a successfully developed gaseous fire extinguishing
agent until present. HFC-227ea has already been used in Europe and America and it is the fine
replacement for the Halon fire extinguishing-agents.
HFC-227ea is effective with fully-immersing way to put out electrical fire, flammable liquid or
soluble solid fire, solid surface fire, and gas fire which supply can be cut down before
extinguishing. It is to be used in place with people working or gathering. HFC-227ea leaves no
residua and is conducting medium free, these features make HFC-227ea irreplaceable in
locations such as computer room, telecom machine room, power transmission room, Precision
apparatus room, power room, gas and oil terminal, flammable chemical and book storage,
document and file storage, gold vault, etc.

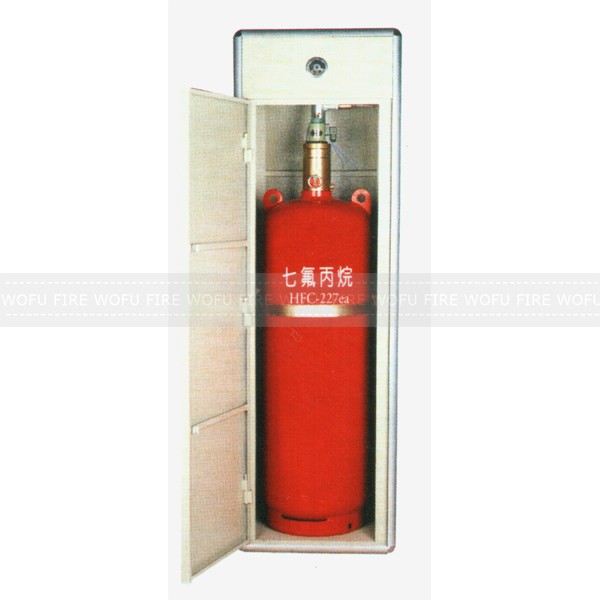

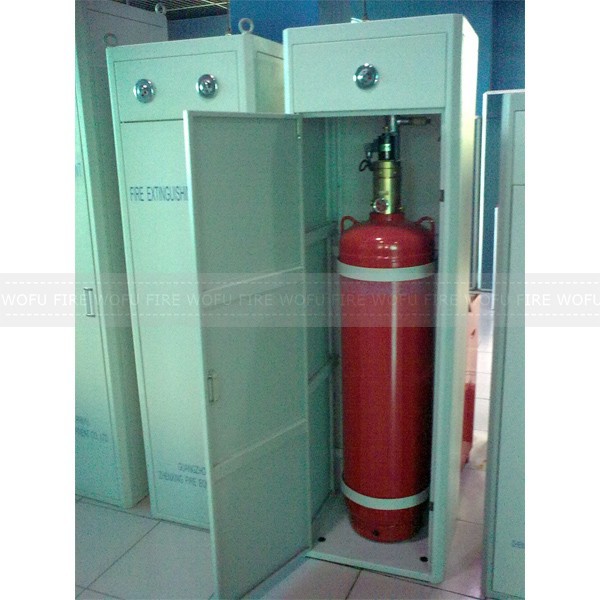

the HFC-227ea cabinet fire-extinguisher consists of container set, pipe, nozzle, signal feedback
parts, checkup parts, driving parts, and cabinet. HFC-227ea can be set up as the auto fire-extinguishing system together with the fire alarm and fire controller, it can be placed in the protecting area and its portable and easy to install.
| 2.HFC-227EA cabinet fire system main specification: |
Model | Max Capacity Kg | Size L×W×H (mm) | Store Pressure (20°C) | Pressure Releaser Working Pressure | Discharge Time | Startup Voltage/ Current | Operating Temperature | Max Operation Pressure |
GQQ20 | 23 | 430×380×1050 | 2.5MPa | 4.5 ± 0.225MPa | ≤8s | DC24V/1.2A | 0°C~50°C | 3.4MPa |
GQQ40 | 46 | 430×380×1500 | ||||||
GQQ70 | 80 | 480×450×1700 | ||||||
GQQ100 | 115 | 530×480×1700 | ||||||
GQQ120 | 138 | 530×480×1880 | ||||||
GQQ150 | 172 | 600×500×1880 |
| 3.HFC-227EA cabinet fire extinguishing system packing: |
Use no-fumigation wooden case to packing,good protect goods.
