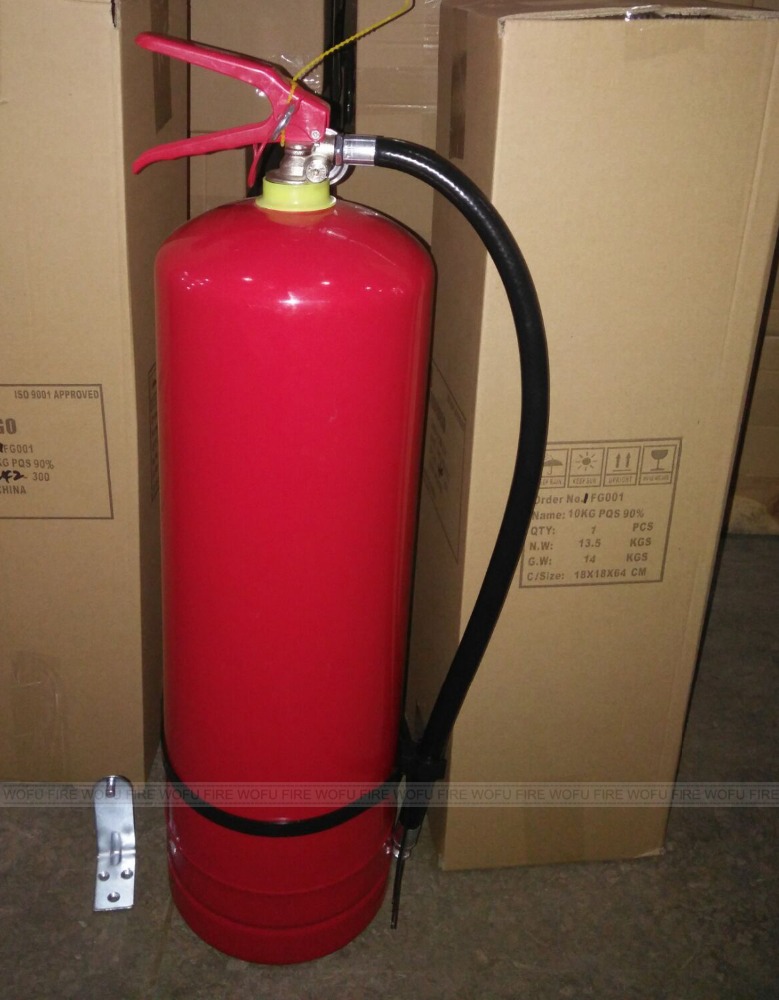

10kg abc dry powder fire extinguisher
Features and Applicated :
* Ammonium Phosphate Chemical powder ABC
* Sodium Bicarbonate Chemical powder BC
Made in China
Suitable for combating fires
Combustible Solids , Flammable Liquids and Gas, Live Electrical Equipment
easier clean up after fire
1.Main specification for 10kg abc fire extinguisher: |
| Thickness | 1.5mm |
| Bottom Shape | urls |
| Tamper Sealing | Yellow Plastic, Length: 250mm |
| Fluorescent Ring | Green Fluorescent Ring |
| Valve | Brass Body with Chrome Plated, with Hanger Loop, Middle Red Handle, Outlet Thread: M14*1.5, with Metal Nut |
| Gauge | Spring Gauge, Diameter: 37mm, Thread: M10*1-12.5, Surface: 0-10, 5-19 |

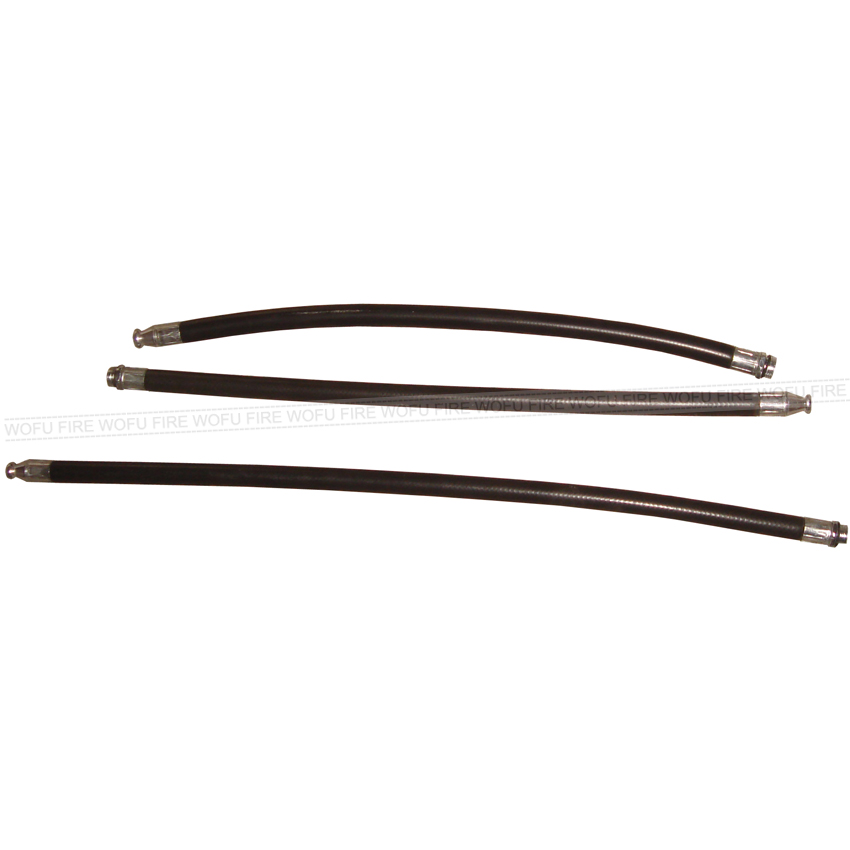

| Hose | M14*1.5*630mm, with Aluminum nozzle |
| Siphon Tube | M14*1.5*505mm, with Metal Siphon Tube |
| Hook | Big Steel Hook, with Black PVC Belt 700mm |
| Painting Color | Red-7325 |
2.Size and accessories of 10kg abc fire extinguisher: |
All accessories:
Red cylinder,Brass Body with Chrome Plated valve,Spring Gauge,pvc hose,big steel hook
3.Packing details for 10kg abc fire extinguisher: |
1pc in brown carton,size:18*18*64cm
4.Operating instruction for abc fire extinguisher: |
1. Quickly take extinguisher at a site where 5 meters away from the fire;
2. Turn it upside down before use, to loose the dry powder inside;
3. Take out the safety pin;
4. Hold the discharge hose with one arm and push the pressing handle with the other;
5. Keep upright position during powder spray, do not lying, upside down
