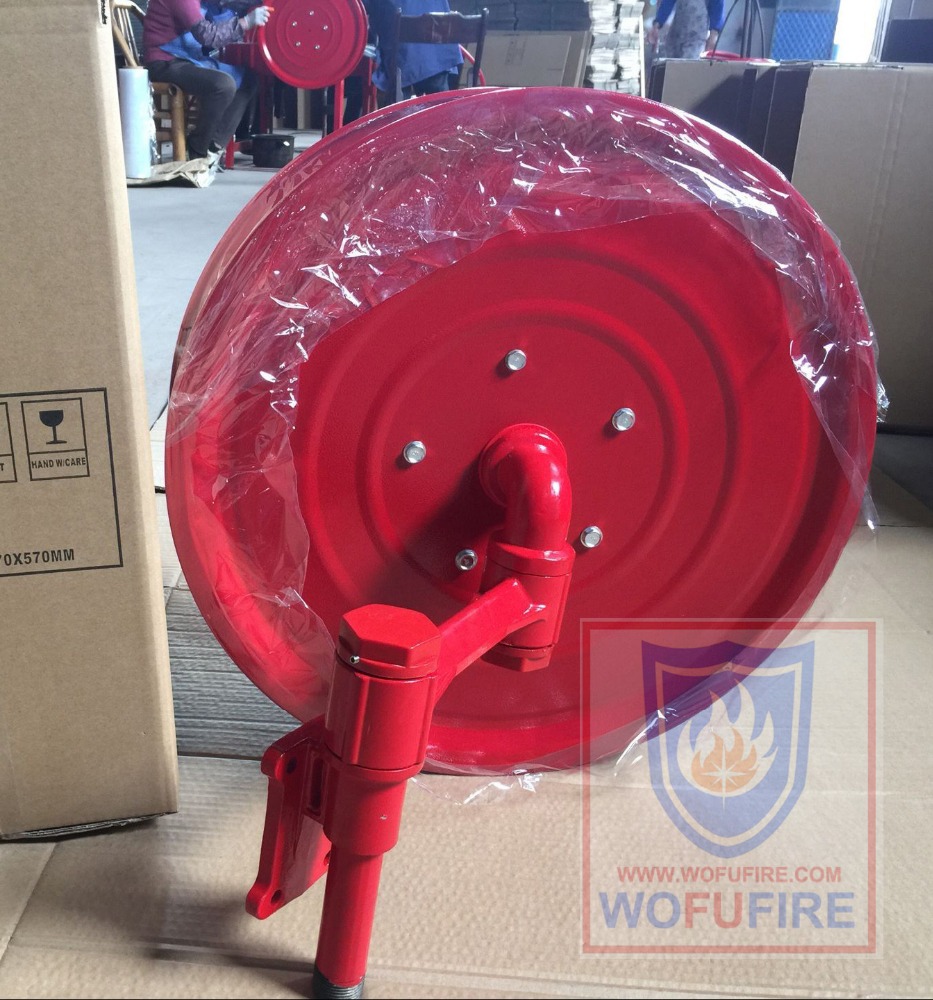

EN694 Standard Drum 550mm Fire Hose Reel
EN694 Red PVC hose
Size: 19mm(3/4") x 25Meters
Drum Diameter: 550mm
Parts: swing arm, gate valve, brass nozzle
1" x 30Meter Fire hose reel
Cabon steel shell, diameter 550mm
Brass swing jointer
Brass nozzle
Landing valve 1"
PVC hose
Working pressure: 12Bar
Cabinet size: 595*595*595mm
Thickness: 1mm
with glass window
Packing size: 60*60*32cm
G.W: 19KG
CBM: 0.115
QTY/CTN: 1Roll
Fire Hose Reel Drum Diameter:
450mm, 550mm and 600mm for your choose
Diameter 550mm, 1" x 30M Fire hose reel swing type price USD69.00
Diameter 600mm, 1" x 30M Fire hose reel swing type price USD72.00
Application and use :
Shopping mall, Hotel, Ware house, House etc.
Install at indoor fire hydrant cabinet
Apply to put out Class A fire
Fire hose reel PVC hose feature:
1. Thin, light weight, soft
2. high pressure resistant
3. high temperature resistant
4. corrosion resistant
5. abrasion resistant
6. aging resistant
Other parts of Fire Hose Reel :
1. Fire hose reel nozzle
2. Fire hose gate valve
3. Fire hose reel joint
4. Fire hose reel cabinet
below different types may attract your interested
Hose reel installation guidelines:
On receipt of consignment ensure that the carton and contents have not sustained visible damage and that all parts are supplied. Shortages or damage must be notified within 7 working days.
Store in a clean and dry place.
Prior to fitting ensure that the recess dimensions are correct and that the structure where hose reel is fitted to, has sufficient strength to support the hose reel.
Fire hose reels should be installed by a competent person in accordance with the instructions and contained within this guidance booklet and BS 5306 Part 1:1988 by a competent person. The installer must be familiar with this Standard. We do not accept any responsibility for improper installation resulting from the installer’s failure to meet the above standard or follow the installation instructions contained within this guidance booklet.
Minimum working pressure 2 bar (static)
Maximum working pressure 12 bar (static)
Pipeline work must be thoroughly flushed out before connection to the hose reel, to prevent damage or blockage by debris.
Warning: Fire hose reels are designed for first aid fighting purposes.
If they are to be used for purpose other than for which they are designed, then our advice should be sought before installation.
BS EN certificate for PVC hose and Fire hose reel
