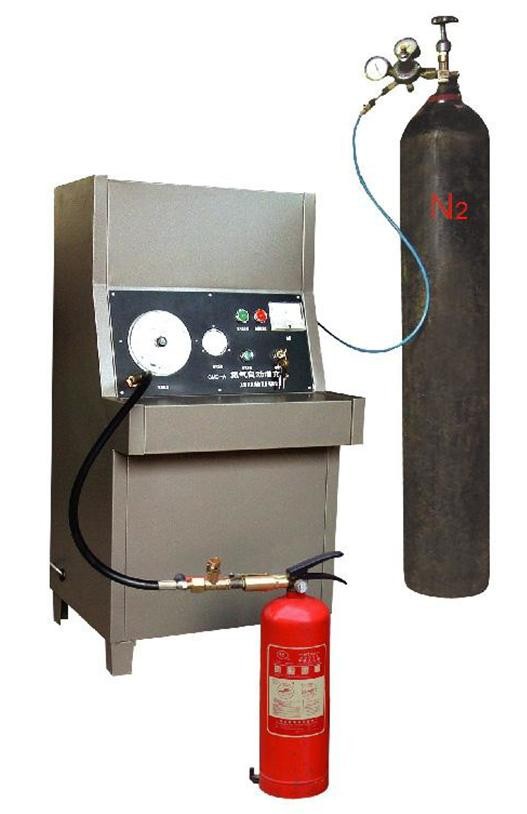

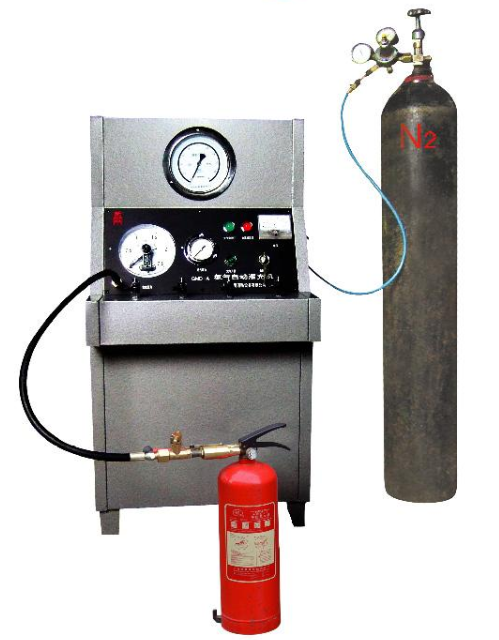

GMDX-A Nitrogen Gas Automatic Filling Machine
Nitrogen gas filling machine can be used for vast fire apparatus production and maintenance manufacturers to fill nitrogen to steel cylinder that needed to be pressurized by nitrogen gas.
The filling machine is built in a constant pressure controlled filling system. With advantages such as safe and reliable, easy to operate, high efficiency and high precision of charging pressure.
Specification of Nitrogen Gas Filling Machine :
1. Voltage: 220V / 50Hz
2. Power: 0.1KW
3. Net weight: 31KG
4. Volume: 510*550*1030mm
5. Pressure control range: 0.1MPa ~ 2.5MPa adjustable
6. Max. output pressure: 2.5Mpa
Operation Panel of Nitrogen Gas Filling Machine :
Packing details of Nitrogen Gas Filling Machine :
| QTY/CTN | N.W/CTN | G.W/CTN | CBM/CTN | CARTON SIZE |
| SET | KG | KG | M3 | CM |
| 1 | 31 | 55 | 0.404 | 118*59*58 |
Maintenance Notice :
1. The filling equipment must be maintained by qualified person and be inspected periodically;
2. The filling equipment must be installed in dry and ventilating site;
3. If the power cannot be switch on, open the back door of the cabinet and check for tripping of the leakage circuit breaker. If it has tripped, use mega meter to check whether 220V power lead insulation resistance to the casing is less than 10M Omega or not, and find the trouble position and clear the trouble before continuing filling;
4. Because the gas pressure in the pipeline is very high, if any leakage is found, tighten the joint of the pipeline immediately and make sealing treatment.
