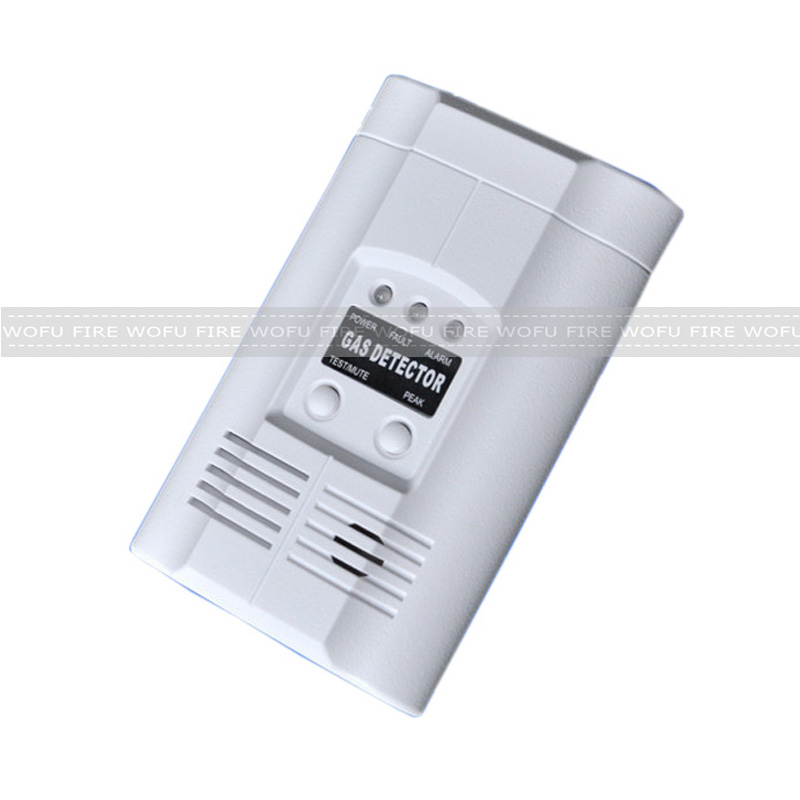

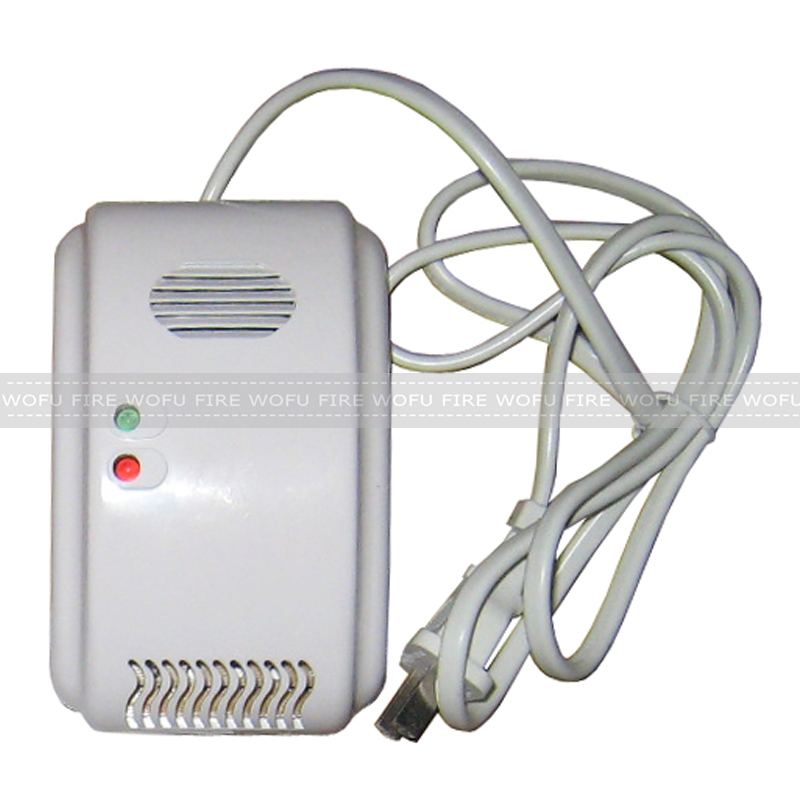

Gas leak detector
| 1.Gas detector features: |
Superior gas sensor with Japan technology is adopted for this product,suitable for household.The ignitable leakage gases can be detected by the method of light/soud alarm and driving the valve to remove the danger.
| Power source | 110V AC |
| Sensitivity | 10% LEL |
| Power consumption | 1.7W |
| Operating temperature | -10°C ~+50°C |
| Ambient humidity | Less than 95% RH |
| Horn level | 85 decibels |
| Weight | 270g |
| Type of gas sensed | 1.LPG(Butane,propane)used in normal and mini gas bottles;2.Gas from piping system(city gas) and natural gas(methane) |
| 2.Gas detector application: |
1.Mounted on the wall or cabinet,about 30cm above the ground for LPG or about 30cm below the ceiling for coal gas and natural gas use.
2.Ventilation slots should be installed down.
3.Connecting signal wire with auto-valve by matching the same colored wires.
4.The equipment needs 3-5 minutes for starting up sensor.The green LED on in normal mode.
5.When the ignitable gas is detected,the red indicator shall be flashed with "di-di-di" alarm sound until the ignitable gas disappears.
6.If the sensor is invalid,the red indicator will be flush and with "di-----"sound continues.
| 3.Gas detector connection: |
1.Connect to main panel(if any):
| P1 | P2 | Out 1 | Out 2 | SIG 1 | SIG 2 |
ι———NC(to panel)———ι ι ——AC220V ——ι
2.Connect to valve/fan(if any):
| P1 | P2 | Out 1 | Out 2 | SIG 1 | SIG 2 |
ι Fan ι ι———+ Valve ———ι ι ——AC220V ——ι
| 4.Gas detector attention: |
1.Install firmly to avoid impact and drop;
2.Don"t let dust and oil block the ventilation slots;
3.Don"t install product near hot,humid and oiling sources.Don"t install it near window or fan,where leakage gas can be quickly disappeared.
4.Monthly checking if equipment can work well by pushing a little gas from a cigar lighter near the ventilation slots.
5.Inform to the supplier for warranty if there"s something wrong with the equipment.Don"t repair or dismantle by unprofessional persons.
| 5.Gas detector packing pictures: |
1pc into white box,100pcs into brown carton.
