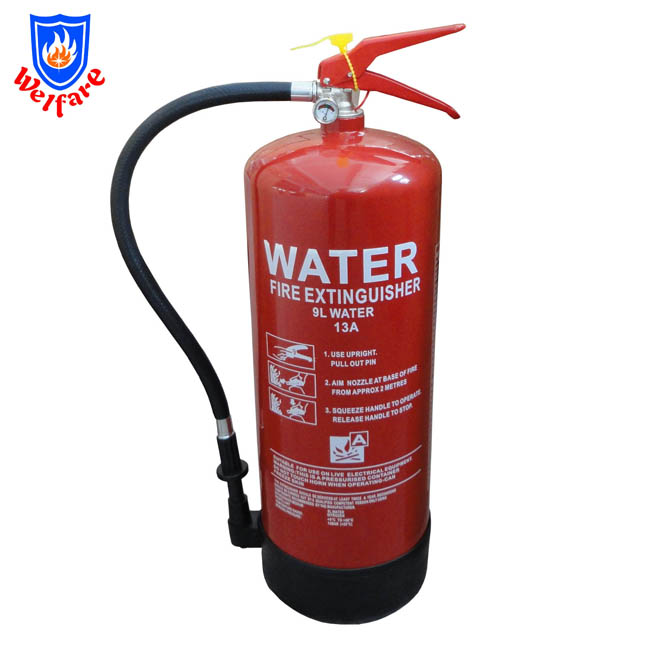

9ltr CE water fire extinguisher
Technical Data :
Capacity : 9+0.05kg
Discharge Time : > 18s
Discharge Range : > 5m
Temperature Range : -20°C ~ +55°C
Fire Class : 43A / 244B C
Working Pressure : 17Bar
Test Pressure : 27Bar
Certificate : ISO, CE Approval
How many CE fire extinguisher we have?
Capacity: 1KG, 2KG,4KG, 6KG, 9KG, 12KG
Below available types decide the defferent price.
Main description for 9ltr CE water fire extinguisher:
| Cylinder size: D182*H510MM |
| Cylinder material: Carbon steel |
| Max working pressure:17bar |
Max test pressure:27bar |
| Fire class: Class A fire |
Cylinder size of 9Ltr CE fire extinguisher:
Diameter 182mm, Height 510mm
Accessories details of CE fire extinguisher 9ltr:

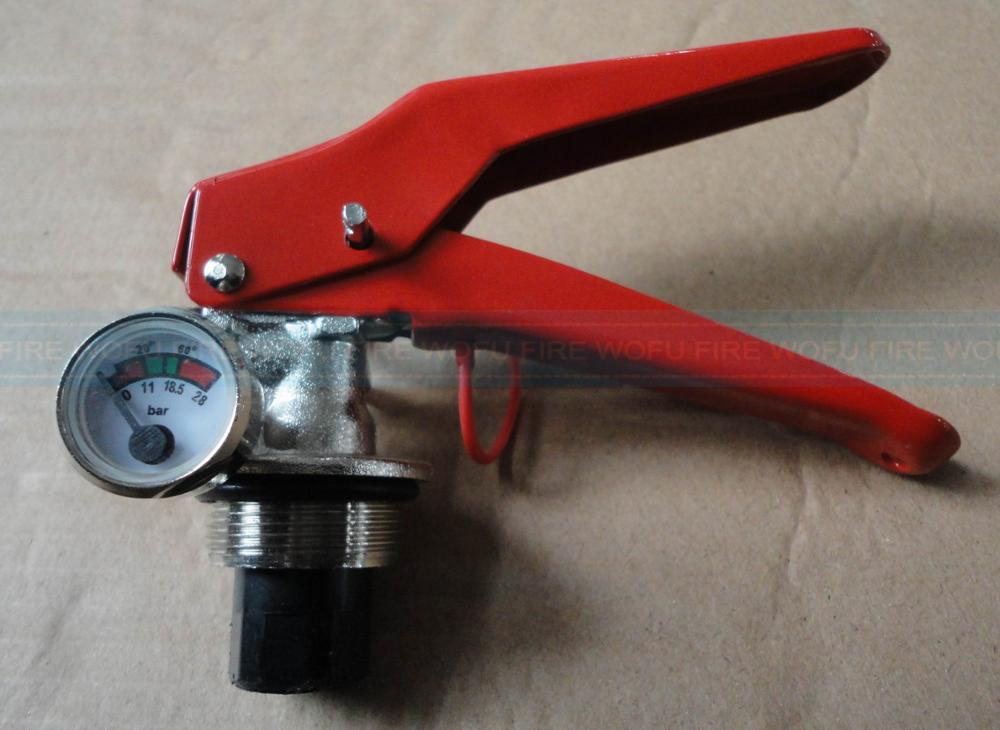

included discharge hose, CE valve, wall hook,
gauge, teamper sealing and siphon tube, bottom base
Packing and loading details CE fire extinguisher:
| Kindly Reminder: |
| Fire Extinguisher are dangerous cargo under IMO 1044 Class 2.2 by international sea bureau, so all the shipment must shipped as DG cargo |
| 1. All cartons must stick IMO green label |
| 2. All container must pull green net. |
| 3. Danger shipping mark "1044" |
Packing with Export carton: 1pc/carton,
G.W.: 14.5KGS/ctn,
CBM/CTN: 0.022CBM
More production detail pictures for reference:
every time we send production pics to customer for checking before loading after finished goods.
Do you know how many processes for produce Fire Extinguisher?
One small Fire Extinguisher has hundreds of processes and artwork. Now we attached below mainly processes for your reference, if lack any of one, you will meet bad quality problems. Trust WOFU, see how we manufacture them(only part of them): |
Our customer come from all over the world.
| South American: Ecuador, Panama, Costa Rica, Peru, Mexico, Columbia and so on. |
| The Middel east: Kuwait, Saudi Arabia, UAE, Oman, Eqypt, Riyadh, Bahrain and so on. |
| Europe and American: Australia, Netherlands, the United States, England and so on. |
| Asian: Pakistan, Philippines, Sri Lanka, Singapore, Malaysia, Lebanon and so on. |
| Africa: Kenya, Nigeria, Uganda, West Africa, The Republic of Guinea and so on. |
