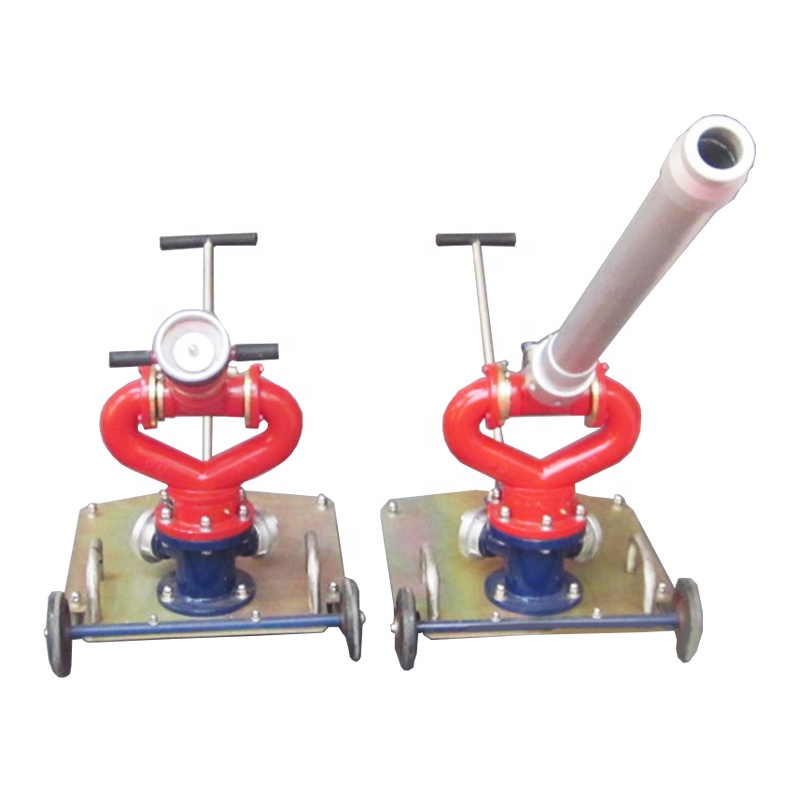

Mobile fire water foam monitor
| 1.Foam monitor introduction: |
The PLY series fire water monitor can be used in areas that are far from the water source or in
locations where a fire engine can not gain access.It is used to put out solid material fires and oil
fires.This kind of product is multifunctional.thin.of good-character,simple operating,convenient,
and is the perfect match for fire engines,oilers,and wharf facilities.This kind of product has
two KY65 fire interfaces and can be used with 2 sources of 65 fire zone and fire engines or foam hydrants,and with 2 support legs,it can be deployed and used at many various angles for optimal performance.
| 2.Foam monitor main parameters: |
Model | PLY24-40 | ||
Flow L/S | 24 | 32 | 40 |
Rated working pressure Mpa | ≤1.0 | ||
Range m | ≥40 | ≥45 | ≥50 |
Elevation° | 30~70° | ||
Level roation angle° | 90° | ||
Foaming rate at 20℃ | ≥6 | ||
25% drainage time minimum at 20℃ | ≥2.5 | ||
The water inlet interface models x number | KY 65 X 2 | ||

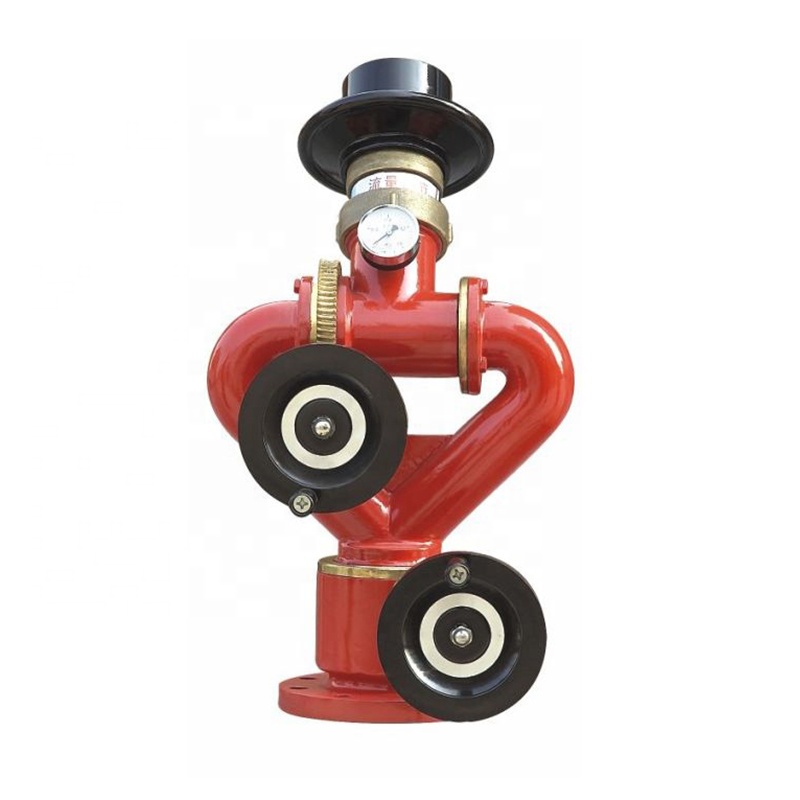

Structure: Body, Grease Nipple, Horizontal Rotation Hand-wheel, Vertical Rotation Hand-wheel, Water/foam Nozzle.
Capacity: 50L/s~200L/s
Throw range: 70~120meters.
With water jet/spray nozzle or low expansion foam pipe.
Material: Body: stainless steel, low expansion foam pipe: stainless steel.S
Horizontal rotation: 360o,Vertical rotation: -70o~+70o.
