Car used 1KG mini Fire Extinguisher
1. small size and easy to handle, suitable for car
Types 1KG fire extinguisher for your choose:
2. Specification of 1KG Car Fire Extinguisher
Cylinder Size: Diameter 90mm, Height 240mm
Thickness: 0.9mm
Neck Ring: M30*1.5

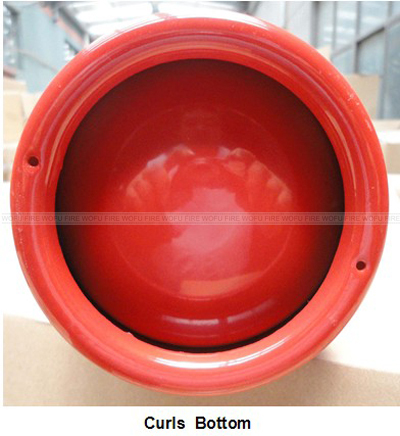

Bottom Shape: Curls base
3. Component of 1KG Car Fire Extinguisher
White nylon nozzle, Brass valve with small red handle, Pressure gauge,
Steel bracket, PVC siphon tube.
4. Packing Detail of 1KG Car Fire Extinguisher
10PCS/CTN
Carton size: 47*19*33cm
G.W: 19.5KG
CBM: 0.029
5. Loading and Shipment of 1KG Car Fire Extinguisher
Fire extinguisher are dangerous goods under IMO 1044 class 2.2 by international sea bureau so all the shipment must shipped as DG cargo.
1. All cartons must stick IMO green label
2. All container must pull green net
3. Danger shipping mark "1044"
6. Some other accessories you might interested
| Fire Extinguisher Operation Instruction |
1. Quickly take extinguisher at a site, extend to 7 meters away to the fire;
2. Shaking cylinder up and down before use, to loose the inside powder;
3. Take out the discharge hose, then safety pin;
4. Hold the hose with one arm, aim the nozzle of the fire;
5. Push the handle, sweep side to side;
6. Keep upright position during powder spray, do not lying, upside down.
| Fire Extinguisher Maintenance |
1. Fire extinguisher is pressure vessel, should prevent collision during the transportation;
2. Should placed within reach and in a dry and ventilated place at a temperature of -10°C~+45°C;
3. Preventing damps, solarization;
4. The parts in good installed, check it frequently;
5. Regularly check if inside powder is caking, replace if yes;
6. Regularly check if gauge pointed in green area, to find lower or overcharge gas, refill them by the pointer"s condition;
7. Recharge immediately after complete or partial use;
8. Cylinder should be Hydraulic Tested every 5 years, qualified them can be used.
