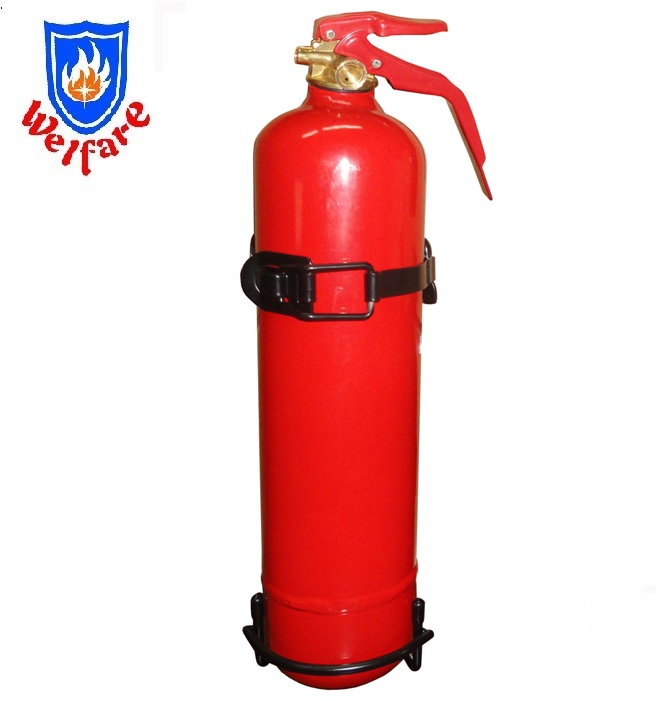

1KG DCP Portable Empty Fire Extinguisher
Features and Applicated :
Ammonium Phosphate Chemical powder ABC
Hot sell in Brazil,3"size
suitable for combating fires:
Common Combustibles, Flammable Liquid and Gas, Live Electrical Equipment, Combustible Metals, easier clean up after fire.
| 1. Main specification of 1KG portable DCP fire extinguisher: |
Capacity: 1KG
Cylinder Size: Diameter 77mm, Height 290mm
Thickness: 1.2mm
Neck Ring: 7/8-20

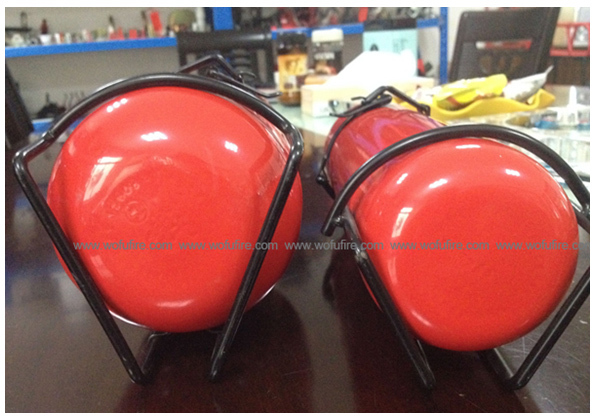

Bottom Shape: Flat base
| ITEM | 3"" | ||||||
| CYLINDER SIZE: DIA*HEIGHT | Welding, D77*H290mm | ||||||
| NECK RING | Special thread 7/8-20 | ||||||
| BOTTOM SHAPE | Flat base | ||||||
| THICKNESS | 1.2mm | ||||||
| VALVE | Brazil brass valve without hanger loop | ||||||
| SIPHON TUBE | PVC | ||||||
| BRACKET | Steel Black Bracket | ||||||
| CYLINDER PAINTING | 7325 Red Painting | ||||||
| TEMPERATURE RANGE | -20°C~+55°C | ||||||
| WORKING PRESSURE | 14Bar | ||||||
| TEST PRESSURE | 27Bar | ||||||
| DISCHARGE TIME | ≥ 8S | ||||||
| DISCHARGE RANGE | ≥ 3M |
| 2.Packing and details for 1KG empty fire extinguisher: |
Packing size: 39*39*30cm
QTY/ctn: 25PCS
G.W/ctn: 14.5KG
CBM/ctn: 0.046
| 3. Fire Extinguisher Operation Instruction |
1. Quickly take extinguisher at a site, extend to 7 meters away to the fire;
2. Shaking cylinder up and down before use, to loose the inside powder;
3. Take out the discharge hose, then safety pin;
4. Hold the hose with one arm, aim the nozzle of the fire;
5. Push the handle, sweep side to side;
6. Keep upright position during powder spray, do not lying, upside down.
| 4. Fire Extinguisher Maintenance: |
1. Fire extinguisher is pressure vessel, should prevent collision during the transportation;
2. Should placed within reach and in a dry and ventilated place at a temperature of -10°C~+45°C;
3. Preventing damps, solarization;
4. The parts in good installed, check it frequently;
5. Regularly check if inside powder is caking, replace if yes;
6. Regularly check if gauge pointed in green area, to find lower or overcharge gas, refill them by the pointer"s condition;
7. Recharge immediately after complete or partial use;
8. Cylinder should be Hydraulic Tested every 5 years, qualified them can be used.
| 5. Types of all fire: |
| 5. Other models of 1kg fire extinguisher: |
The price will be negotiate without notice.
| 6. Suitable place for fire extinguisher: |
| 7. Do you know how many processes for produce Fire Extinguisher? One small Fire Extinguisher hDo you know how many processes for produce Fire Extinguisher? One small Fire Extinguisher has hundreds of processes and artwork. Now we attached below mainly processes for your reference Trust WOFU, see how we manufacture them(only part of them): |
| 8. We have CE and CNAL approval, we give some of certificates and Approval for your reference contact us by more details |
