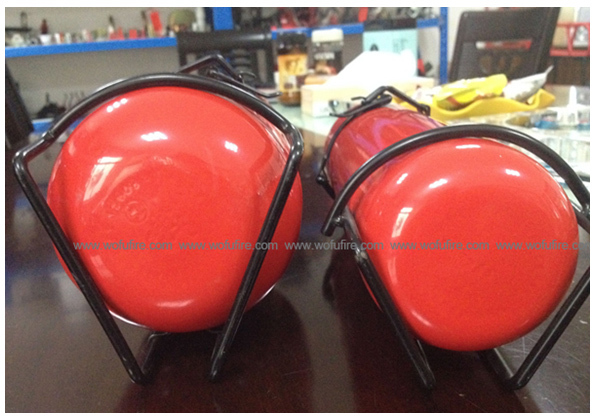

1KG DCP Empty Cylinder Car ABC Fire Extinguisher
Features and Applicated :
* Ammonium Phosphate Chemical powder ABC
* Sodium Bicarbonate Chemical powder BC
suitable for combating fires,Common Combustibles , Flammable liquids and gases, Live electrical equipment, Combustible metals , easier clean up after fire
1. Specification of 1KG Empty Cylinder Fire Extinguisher
Hot sell in Brazil 4"
Cylinder Size: Diameter 102mm, Height 175mm
Thickness: 1.2mm
Neck Ring: 7/8-20
Bottom Shape: Flat base
| ITEM | 4"" | ||||||
| CYLINDER SIZE: DIA*HEIGHT | Welding, D102*H175mm | ||||||
| NECK RING | Special thread 7/8-20 | ||||||
| BOTTOM SHAPE | Flat base | ||||||
| THICKNESS | 1.2mm | ||||||
| VALVE | Brazil brass valve without hanger loop | ||||||
| SIPHON TUBE | PVC | ||||||
| BRACKET | Steel Black Bracket | ||||||
| CYLINDER PAINTING | 7325 Red Painting | ||||||
| TEMPERATURE RANGE | -20°C~+55°C | ||||||
| WORKING PRESSURE | 14Bar | ||||||
| TEST PRESSURE | 27Bar | ||||||
| DISCHARGE TIME | ≥ 8S | ||||||
| DISCHARGE RANGE | ≥ 3M |
2. Packing and details of 1KG Empty Cylinder Fire Extinguisher:
Accessories :
Brass valve without hanger loop, small red handle
Steel black bracket
PACKING:
50PCS/CTN
Size: 51*51*36cm
G.W: 29.5KG
CBM: 0.094
3. Load and Shipment of 1KG Empty Cylinder Fire Extinguisher
Fire extinguisher are dangerous goods under IMO 1044 class 2.2
by international sea bureau so all the shipment must shipped as DG cargo.
1. All cartons must stick IMO green label.
2. All container must pull green net
3. Danger shipping mark "1044"
4. DCP Fire Extinguisher Operating Instruction:
1. Quickly take extinguisher at a site where 5 meters away from the fire;
2. Turn it upside down before use, to loose the dry powder inside;
3. Take out the safety pin;
4. Hold the discharge hose with one arm and push the pressing handle with the other;
5. Keep upright position during powder spray, do not lying, upside down
5.Fire Extinguisher Maintenance:
1. Should placed within reach and in a dry and ventilated place;
2. Preventing damps, solarization;
3. The parts in good installed, check it frequently, be recharged once be used;
4. Regularly check if the dry powder is caking, replace immediately if yes;
5. Cylinder should be Hydraulic Tested every 5 years, qualified them can be used
Where to use:
6.Fire Extinguisher Produce Process:
7.Quality Problems:
1. quality problem from the shipping company
pls check the cargo quality once you discharge the container. any humidity damage from the shipping company must take photo and send within 5days when your get cargo, or before unload them
2. quality problem from WOFU
within 2month after get container, the supplier must send pictures or videos to WOFU, we would reply buyer within 2days, about the reason be caused and solution means.
if 10% quality problem, WOFU can retired the cargo in the fee from WOFU.
if only some parts problem, WOFU can discuss with buyer if client agree to accept by discount or by cash. if not, client can return or rechange the cargo by WOFU"s fee.
8.Fire Extinguisher Certificate:
