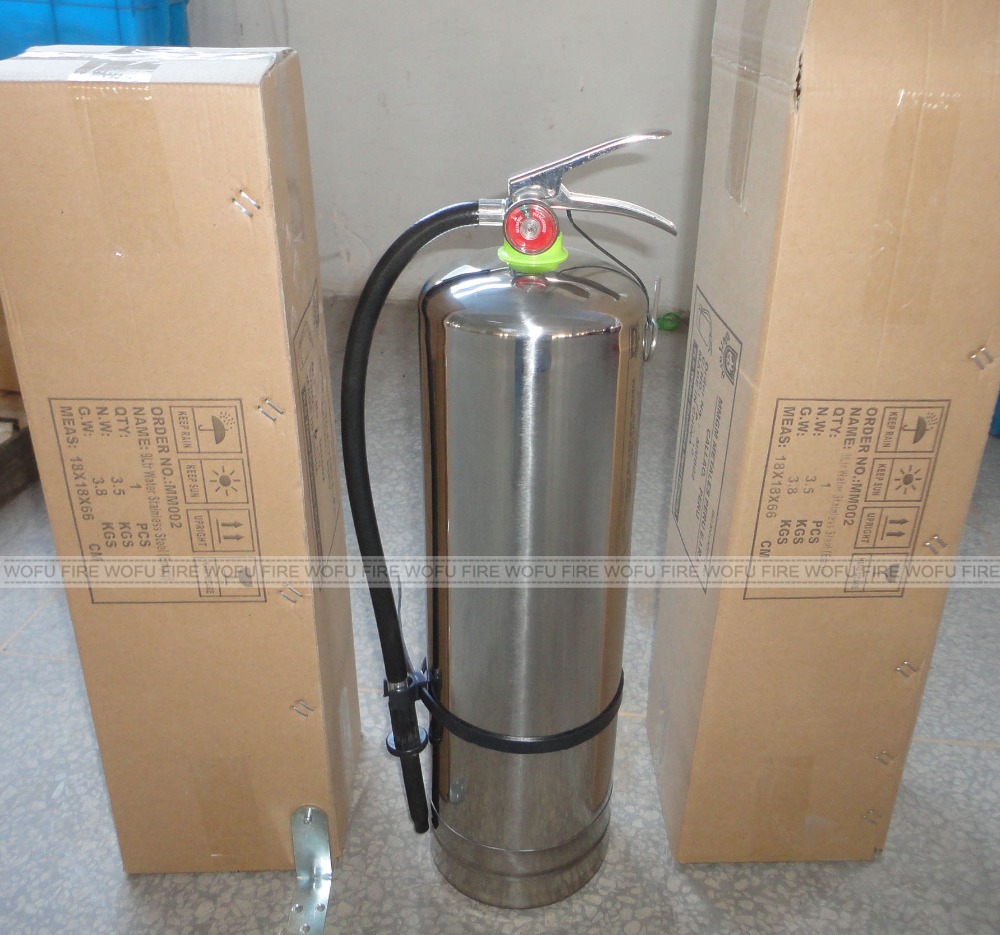

WOFU Fire special produce all stailness steel empty fire extinguisher cylinder and fire extinguisher parts
Stainless steel cylinder spefifcation and price here :
| Capacity | Material | Cylinder Size | Thickness | Burst Pressure | FOB Ningbo |
| 1Ltr Empty Cylinder | SUS304 | Φ89*H254mm | 1.0mm | ≥ 5.5Mpa | $6.57 |
| 2Ltr Empty Cylinder | SUS304 | Φ114*H295mm | 1.0mm | ≥ 5.5Mpa | $9.95 |
| 3.5Ltr Empty Cylinder | SUS304 | Φ127*H462mm | 1.0mm | ≥ 5.5Mpa | $17.39 |
| 6Ltr Empty Cylinder | SUS304 | Φ160*H456mm | 1.0mm | ≥ 5.5Mpa | $20.58 |
| 9Ltr Empty Cylinder | SUS304 | Φ180*H538mm | 1.2mm | ≥ 5.5Mpa | $26.12 |
| 25Ltr Empty Cylinder | SUS304 | Φ256*H775mm | 2.0mm | ≥ 5.5Mpa | $85.28 |
| 50Ltr Empty Cylinder | SUS304 | Φ360*H825mm | 2.5mm | ≥ 5.5Mpa | $145.88 |
| 100Ltr Empty Cylinder | SUS304 | Φ360*H1160mm | 2.5mm | ≥ 5.5Mpa | $277.40 |
Specifications of Stainless Steel Empty Fire Extinguisher Cylinder :
Material: Stainless steel SUS304
Thickness: 1.0mm to 2.5mm
1-2-3.5-6Ltr: 1.0mm
9Ltr: 1.2mm
25-50Ltr: 2.0mm
100Ltr: 2.5mm
above thickness is indeed to make sure pressure security
some clients want cheaper price to buy thickness weak
it not a safety idea.
Check below DCP Fire Extinguisher Cylinder you might interested in:
Empty Fire Extinguisher 1KG, 2KG, 3KG, 4KG, 5KG, 6KG, 8KG, 9KG,12KG
Empty Fire Extinguisher Ball 6KG, 8KG, 9KG, 12KG
Empty Trolley Fire Extinguisher 25KG, 35KG, 45KG, 50KG, 100KG
CO2 Fire Extinguisher 2KG, 3KG, 5KG, 7KG, 9KG
above thickness is indeed to make sure pressure security
some clients want cheaper price to buy thickness weak
it not a safety idea.
Empty cylinder bottom shape: curls and point or straight as per clients requested
Empty cylinder neck ring: M24*1.5 and M30*1.5
all cylinder before painting must dip into chemical acid pool pickling and phosphating the surface
of the cylinder, prevent oxidized and corrosion, as well it is use time would be around 10 year at least, otherwise, some factory cylinder one or two year are in corrosion.
