WOFU CO2, DCP, Stainless Steel Fire Extinguisher Cylinder Price
All Empty Fire Extinguisher Cylinder and Fire Extinguisher Parts
| Name | Cylinder Size | Thickness | QTY/CTN | G.W/CTN | FOB Ningbo |
| 1KG DCP Empty cylinder | Φ90*H240mm | 0.9mm | 10pcs | 8.50 | $1.25 |
| 2KG DCP Empty cylinder | Φ110*H310mm | 1.2mm | 6pcs | 8.00 | $1.85 |
| 3KG DCP Empty cylinder | Φ130*H355mm | 1.2mm | 2pcs | 3.60 | $2.49 |
| 4KG DCP Empty cylinder | Φ130*H410mm | 1.2mm | 2pcs | 4.50 | $3.02 |
| 5KG DCP Empty cylinder | Φ150*H430mm | 1.2mm | 2pcs | 5.00 | $3.56 |
| 6KG DCP Empty cylinder | Φ160*H430mm | 1.2mm | 2pcs | 6.50 | $3.93 |
| 8KG DCP Empty cylinder | Φ162*H495mm | 1.5mm | 2pcs | 7.20 | $5.31 |
| 9KG DCP Empty cylinder | Φ175*H550mm | 1.5mm | 2pcs | 5.00 | $5.83 |
| 12KG DCP Empty cylinder | Φ182*H650mm | 1.5mm | 2pcs | 10.00 | $7.33 |

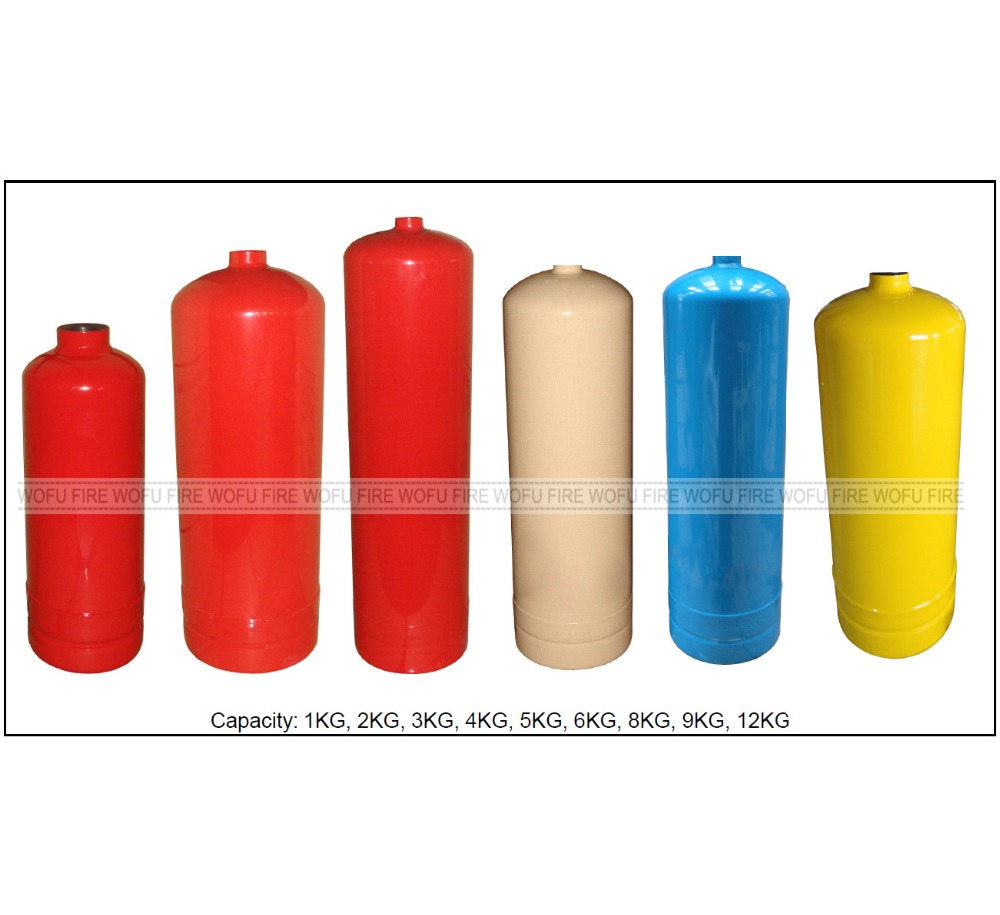

Empty DCP Fire Extinguisher 1KG, 2KG, 3KG, 4KG, 5KG, 6KG, 8KG, 9KG,12KG
Empty CO2 Fire Extinguisher 2KG, 3KG, 5KG, 7KG... 12KG
Empty Trolley Fire Extinguisher 25KG, 35KG, 45KG, 50KG, 100KG
Empty Stainless Steel Fire Extinguisher 1Ltr... 6Ltr, 9Ltr
Specifications of DCP Empty Fire Extinguisher Cylinder :
Material: cold roll steel
Thickness: 0.9mm to 1.5mm
1KG: 0.9mm
2KG: 1.0mm
3-8KG: 1.2mm
9-12KG: 1.5mm
above thickness is indeed to make sure pressure security
some clients want cheaper price to buy thickness weak
it not a safety idea.
Empty cylinder bottom shape: curls and point or straight as per clients requested
Empty cylinder neck ring: M24*1.5 and M30*1.5
all cylinder before painting must dip into chemical acid pool pickling and phosphating the surface
of the cylinder, prevent oxidized and corrosion, as well it is use time would be around 10 year at least, otherwise, some factory cylinder one or two year are in corrosion.
other Empty Fire Extingusiher plz find our :
CO2 Empty Fire Extinguisher
Trolley Empty Fire Extinguisher
Stailess Steel Empty Fire Extinguisher
Fire Extinguisher Ball Empty Fire Extinguisher
5. Loading and Shipment of Fire Extinguisher
Fire extinguisher are dangerous goods under IMO 1044 class 2.2 by international sea bureau so all the shipment must shipped as DG cargo.
1. All cartons must stick IMO green label
2. All container must pull green net
3. Danger shipping mark "1044"
| Fire Extinguisher Operation Instruction |
1. Quickly take extinguisher at a site, extend to 7 meters away to the fire;
2. Shaking cylinder up and down before use, to loose the inside powder;
3. Take out the discharge hose, then safety pin;
4. Hold the hose with one arm, aim the nozzle of the fire;
5. Push the handle, sweep side to side;
6. Keep upright position during powder spray, do not lying, upside down.
| Fire Extinguisher Maintenance |
1. Fire extinguisher is pressure vessel, should prevent collision during the transportation;
2. Should placed within reach and in a dry and ventilated place at a temperature of -10°C~+45°C;
3. Preventing damps, solarization;
4. The parts in good installed, check it frequently;
5. Regularly check if inside powder is caking, replace if yes;
6. Regularly check if gauge pointed in green area, to find lower or overcharge gas, refill them by the pointer"s condition;
7. Recharge immediately after complete or partial use;
8. Cylinder should be Hydraulic Tested every 5 years, qualified them can be used.
| What is the difference of Dry Powder Fire Extinguisher |
1. The cylinder thickness very important
2. Some factory no phophating treatment, the service time can not up to 8 years, one year would be in rusty
3. The painting powder in Red 7325, if use cheaper painting, easy to fade the color under sun
