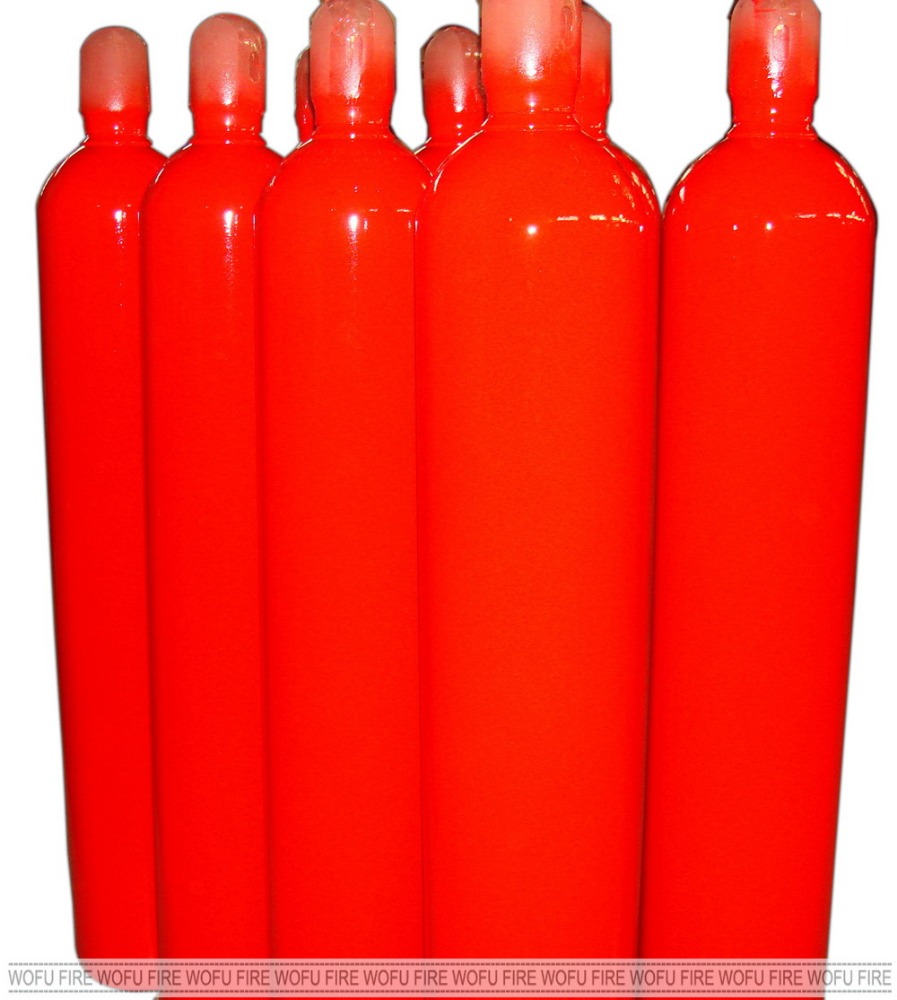

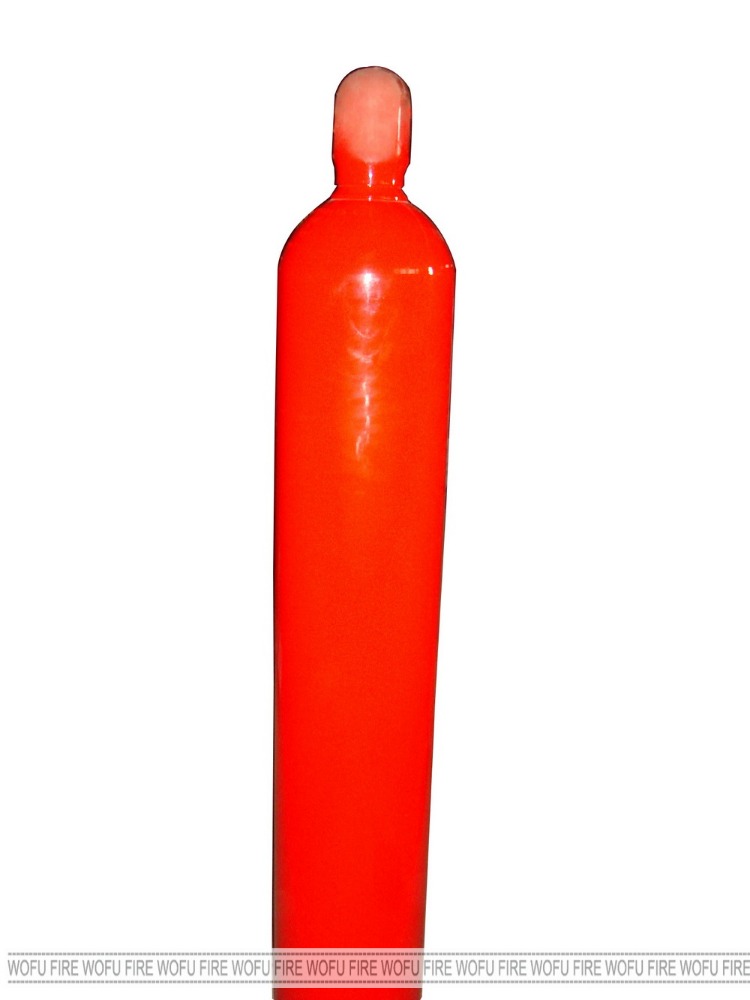

70L carbon dioxide cylinder of co2 fire protection system
Model:WGA267-68-15
Capacity:70L Fire extinguishing agent in cylinder: 99% pure co2 gas
Size(dia.*height):D267*1540H mm,thickness:6.5mm
Working pressure:15Mpa
Weight:76kgs
Connect valve thread:PZ39
Connect discharge hose thread:M22*1.5
Connect start tube thread:M14*1.5
Specification:
1.Cylinder material:37Mn steel,hydraulic test 22.5Mpa
2.Valve material:brass alloy,inside stem of valve:1CR18NI9TI,and sealing O ring material is Polytetrafluoroethylene
Application:
To store the carbon dioxide agent, it has the function of sealing, releasing, filling, discharging for over pressure
Assemble it to CO2 fire suppression system
Structure:
Consist of valve, siphon tube, steel container.
1) Steel container is the red epoxy-painted steel seamless vessels which allow to recharge.
2) Container valve is consisted of valve body, starter device, piston, relief device, etc.
It was connected with siphon tube and installed at the top of the cylinder, the valve can be opened pneumatic or manually to release agent.
Packing information:
Use wooden case packing it,good protect.
| NAME | QTY/CTN | N.W/CTN | G.W./CTN | CBM/CTN | CTN SIZE |
| PCS | KG | KG | M3 | CM | |
| 70L co2 cylinder | 1 | 126 | 150 | 0.225 | 177×31×41 |
Carbon dioxide fire extinguishing system price list,pls see below:
pls note the price will be changed by time and quantity.
