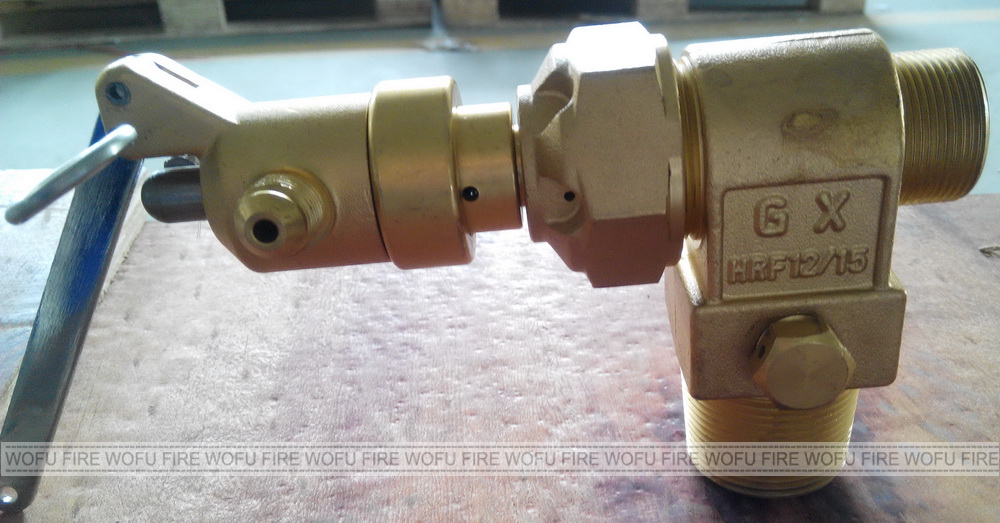

High pressure co2 cylinder brass valve
| 1.CO2 fire extinguishing system breif introduction: |
The carbon dioxide is liquidized by high pressure and stored in cylinders, when spraying the carbon dioxide is expending sharply and absorbing a large quantity of heat, thus to
reduce the temperature of the fire scene and dilute the oxygen level of the protected
zone so as to put the fire out. Carbon dioxide is a inert gas, which is inexpensive, non-polluted, dissipated, and traceless. The carbon dioxide fire extinguishing system is able to put gas fire out after the gas supply source is cut, and it is also able to put out
liquid fire, solid fire of fusible materials such as paraffin and asphalt, solid surface fire, deep-seated solid fire such as wincey, fabric, and paper, and electric fire, etc.
The system is applicable to libraries, archives, database, bulk storages of liquid,
computer rooms, communication rooms, generator rooms, substation rooms, oil
immersionslots, mechanical mills, drying devices, and lacquer product lines. Note that
carbon dioxide causes asphyxiation and the system shall be used where no people are
involved. If the system takes effect in working places appropriate measures shall be taken to ensure safety.
The system puts out fires in a sealed room in a total flooding mode, it also works in a local application mode to put out non deep-seated fire of protected objects where sealed
rooms are not required. The local application mode uses special nozzles which allow the
extinguishing agent acts fully on combustion object directly, the system keeps supplying extinguishing agent on the combustion object for a certain time and intensity in order to put out the fire.
| 2.CO2 fire extinguishing system main accessoires: |
1. Cylinder:
Volume: 70LTR N.W :78KG
Diameter * height: 267*1700mm
Thickness: 5.7mm to 6.3mm
Working pressure: 15MPa,
Material: 37Mn

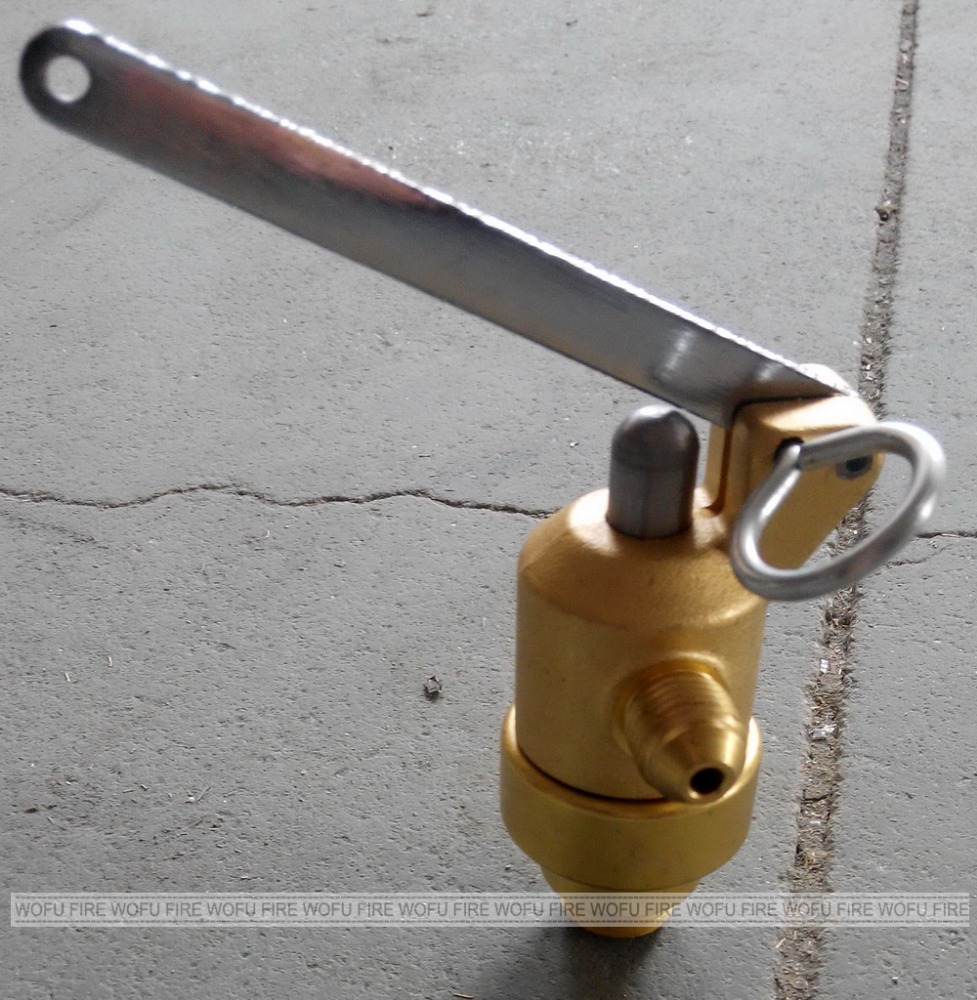

2. Cylinder valve:
| DESC. | MODEL | INLET THREAD | OUTLET THREAD | MAX.W.P | SAFETY ACTION | SIPHON TUBE THREAD |
| CO2 VALVE | 2HRF12/15 | PZ39 | M30*1.5 | 17.2MPa | 23±1.15MPa | G1/2" |
3. Hose pressure hose: Dia: 12mm, working pressure: 15 MPa, thread G5/8, length:450 mm
4. Liquid one way valve: be used between manifold pipe and high pressure hose, prevent gas flow back to storage cylinder. Working pressure:15 MPa, valve actuated pressure: ≥0.15 MPa,
thread: M27/ G5/8.
Scale device gas loss: if less than 4kgs, output by signal, powder DC 24 V, rate voltage:1.5A
Manifold pipe: combinate all the stored cylinder, be installed cylinder racket.
Material: steel 20#, thread M27/M16, max working pressure: 15MPa
Safety release valve: be installed on manifold pipe, for release high pressure exceed the requested gas release:15± 0.75MPa, thread:M16
5. Selective valve: be used in combination system.
6. Pressure switch: be installed on manifold pipe (for independent system )
If selective installed on select outlet, when the gas are discharge, output on signal to control panel center actuated:0.2MPa, power:24DCV, rated voltage:1.5A
7. Pipe and connection: not supplier
8.Total flooding nozzle: terminal end of the pipe, discharge mouth for the agent with cover total flooding nozzle and no cover flooding nozzle, or side working nozzle dependent the designation.
