- Place of Origin:
- Zhejiang, China
- Brand Name:
- welfare
- Design pressure:
- 0.8Mpa
- Work pressure:
- 0.2-0.4Mpa
- Water inlet size:
- RC1-1/4,height 1520MM
- Water outlet size:
- RC1-1/4,height 90MM
- Shower nozzle flow rate:
- 120-180L/min
- Eye wash nozzle flow rate:
- >12L/min
- Supply Ability:
- 1000 Set/Sets per Month
- Packaging Details
- brown carton
- Port
- Ningbo,China

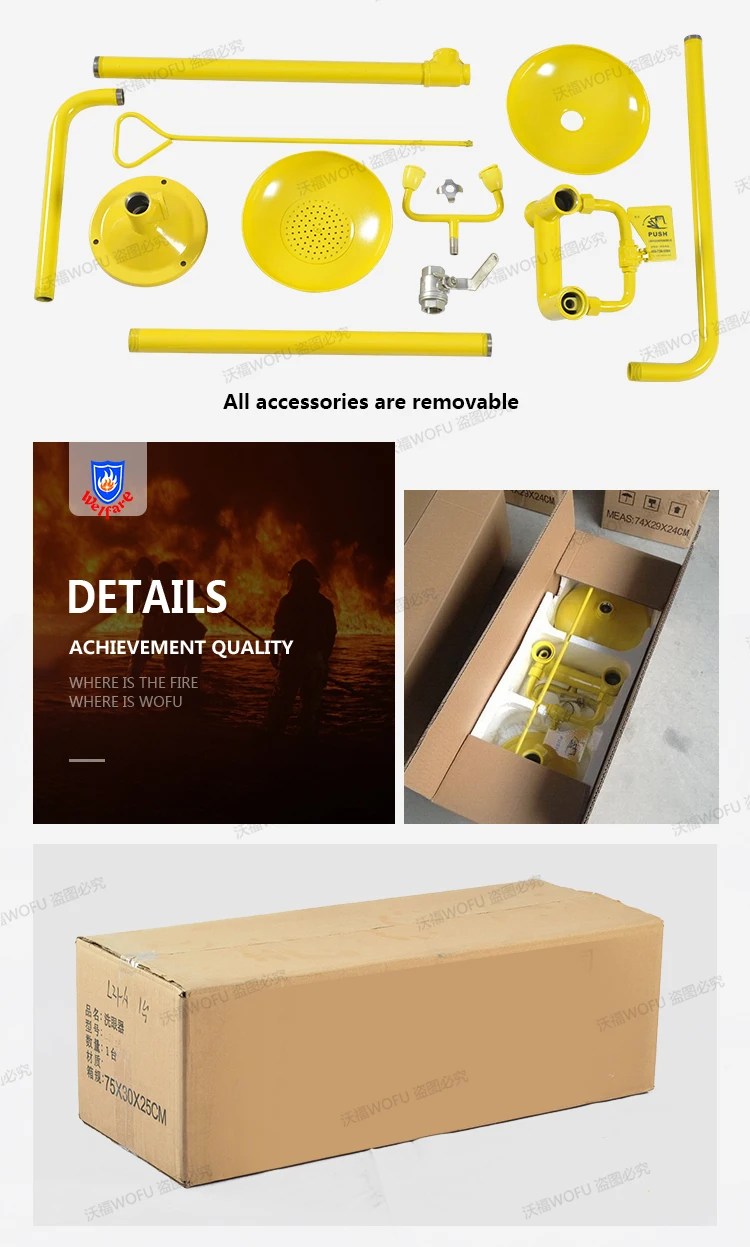

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 100 >100 Est. Time(days) 30 To be negotiated
Packing details:use polyron packing,good protect,then 1set inton brown carton.
| NAME | QTY/CTN | N.W/CTN | G.W/CTN | CBM/CTN | CTN SIZE |
| DESCRIPTIONS | pcs | kg | kg | M3 | cm |
| compound type emergency safety eye wash | 1 | 12.00 | 13.00 | 0.052 | 74*29*24 |
Switch mode: manual, this product can be equipped with other high-performance pedals,hands and feet, operation more convenient and quick) when using the function of eye just push push valve with handle gently, clean water from washing the eye automatic sprinkler, sprinkler peripherals dust cover, when used with flow automatically. The dust cover with good after reset. Use shower function just down gently with the hand shake handshandle pull rod, drench water from the shower nozzle jet, quickly with good nudging upwards after shower rod, close the shower switch.
Switch structure: eye and drench switch used two chip cock ball valve, the valve stem is
equipped with independent sealing device, than ordinary switch longer service life and
maintenance more convenient.
Eye nozzle built-in double filter, filter impurities in water, the other use slow pressure
principle makes the water flow into foamy water, effectively prevent to the injured eye due
to water flow ultra secondary damage nerve and the injured area. Relative to the traditional
eye bath, wash the eye effect is better, safer!
This product is suitable for use in indoor or temperature above 0 ℃ environment, should pay
attention to below 0 degrees and environment freeze protection of pipes.
Application places: widely used in nuclear power, power plants, pharmaceutical, medical, chemical,
petrochemical, shipbuilding, electronics, metallurgy, smelting, printing, dyeing, education and
scientific research units, etc.
