- Place of Origin:
- Zhejiang, China
- Brand Name:
- Customized
- Name:
- Fire Hose
- Size:
- 1.5", 2", 2.5" etc
- Length:
- 15M, 20M, 30M etc
- Jacket:
- Double, Single
- Linner:
- EPDM, Rubber, PVC etc
- Working Pressure:
- 10Bar, 14Bar, 17Bar etc
- Coupling:
- Brass, Aluminum
- Supply Ability:
- 1000 Roll/Rolls per Month
- Packaging Details
- standard export carton package
- Port
- Ningbo
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Rolls) 1 - 1000 >1000 Est. Time(days) 15 To be negotiated

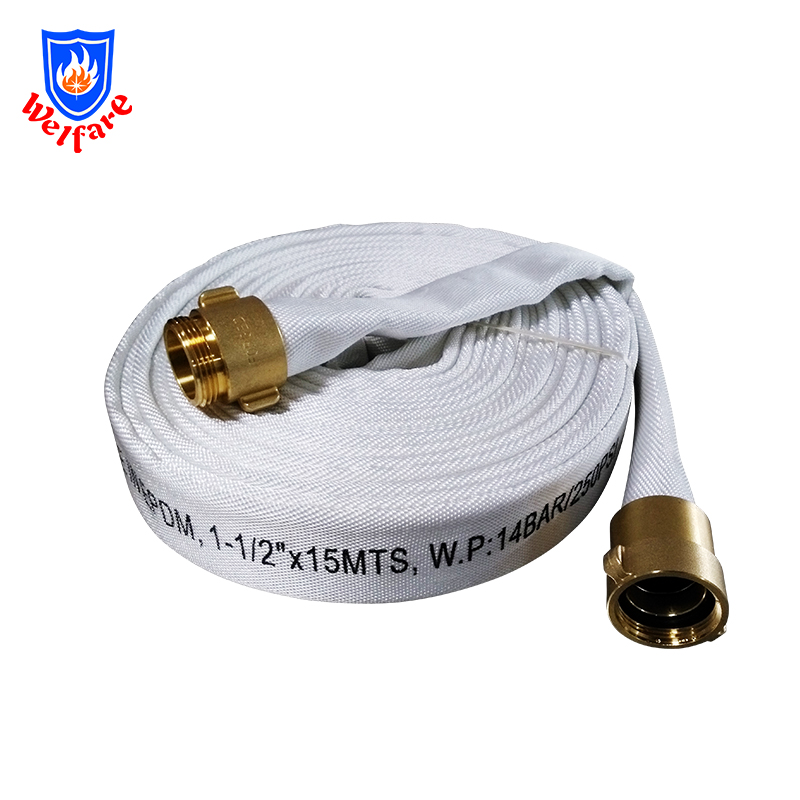

| 14Bar Double Jacket EPDM Linner Fire Resistant Hose use with Fire Hydrant |
14Bar Double Jacket fire hose is liner with EPDM(ethylene propylene diene monomer(M-class) rubber), a type of synthetic rubber. The main properties of EPDM are its outstanding heat,
ozone and weather resistance. The resistance to polar substances and steam are also good.
The maximum service temperature is 100-120℃, while the minimum service temperature is -54℃.
Main Specification of Fire Hose :
Double Jacket
Working Pressure: 14Bar / 200Psi
Size:1-1/2"
Length: 30Meters
Coupling: 1-1/2" NST American Type Brass coupling
Liner Material: EPDM Linner
Construction :
Polyester outer +Polyester inner + EPDM linner
Color: White
size:1.5"*30m
size:1.5"*15m
Below different kinds of COUPING for customer choose :
1. British style John Morris coupling
2. American style coupling
3. Storz style coupling
4. Russian syle coupling
Fire Hose Feature :
1. Long service life
2 .Special corrosion resistance
3. Aging resistance
4. Resistance to high pressure
5. Excellent resistance to sea water,UV and ozone
6. Suitable also for hot water
7. Abrasion resistantance
8. Higher Working pressure
Fire Hose Application :
1. Commercial construction and engineering
2. Mining
3. Fire fighting
4. Liquid transportation
5. Industrial and municipal fire brigades
6. Farming
7. Construction Pumps
8. Ships and factories
Fire Hose Packing information :
if 15Meters, 2Rolls in one carton
Carton size: 41*40*18.5cm
N.W: 10.5KG
G.W: 11KG
CBM: 0.03
Price list of 14Bar Double jacket fire hose 1.5*15Mts, Liner EPDM, with American type coupling :
(Note: the price maybe change by negotiated)
| ORDER QTY | UNIT PRICE |
| 50 Rolls | USD25.00 |
| 100 Rolls | USD23.00 |
| 200 Rolls | USD22.80 |
| 500 Rolls | USD20.60 |
if 30Meters, 2Rolls in one carton
Carton size: 56*56*18cm
N.W: 20KG
G.W: 21KG
CBM: 0.056
Price list of 14Bar Double jacket fire hose 1.5*30Mts, Liner EPDM, with American type coupling :
(Note: the price maybe change by negotiated)
| ORDER QTY | UNIT PRICE |
| 50 Rolls | USD45.50 |
| 100 Rolls | USD44.00 |
| 200 Rolls | USD43.20 |
| 500 Rolls | USD43.00 |
Construction:
Single jacket or double jacket,the waft is polyester silk,the warp could be polyester yarn or polyester silk.As for the weaving two options are available:plain and twill.liner:EPDM
Standard length:
It is upon customer’s request, the standard length are 15m, 20m, 25m, 30m, 40m
Couplings available:
National standard,German standard,American standard,Japanese standard&British standard couplings can also be provided.
Characteristics :
Its inner lining is the finished cure EPDM hose with non-osmotic.Between the lining and out jacket is the special solid or liquid adhesive,so the adhesion strength is very high.EPDM fire hose has good oil resistance,acid,alkali,aging and ozone proof,anti-ultraviolet and corrosion.Commonly used for fire prevention place and high temperature liquid transportation of petroleum or chemical products in developed countries.
Technical Reqirement | |||
Size(Inch/mm) | Working pressure(Bar/Psi) | Burst pressure(Bar/Psi) | |
1” | 25 | 10/150,14/200,17/250,21/300 | 30/450,42/600,51/750,63/900 |
1-1/2” | 38 | 10/150,14/200,17/250,21/300 | 30/450,42/600,51/750,63/900 |
1-3/4” | 45 | 10/150,14/200,17/250 | 30/450,42/600,51/750 |
2” | 52 | 10/150,14/200,17/250 | 30/450,42/600,51/750 |
2-1/2” | 65 | 10/150,14/200,17/250 | 30/450,42/600,51/750 |
3” | 75 | 10/150,14/200 | 30/450,42/600 |
