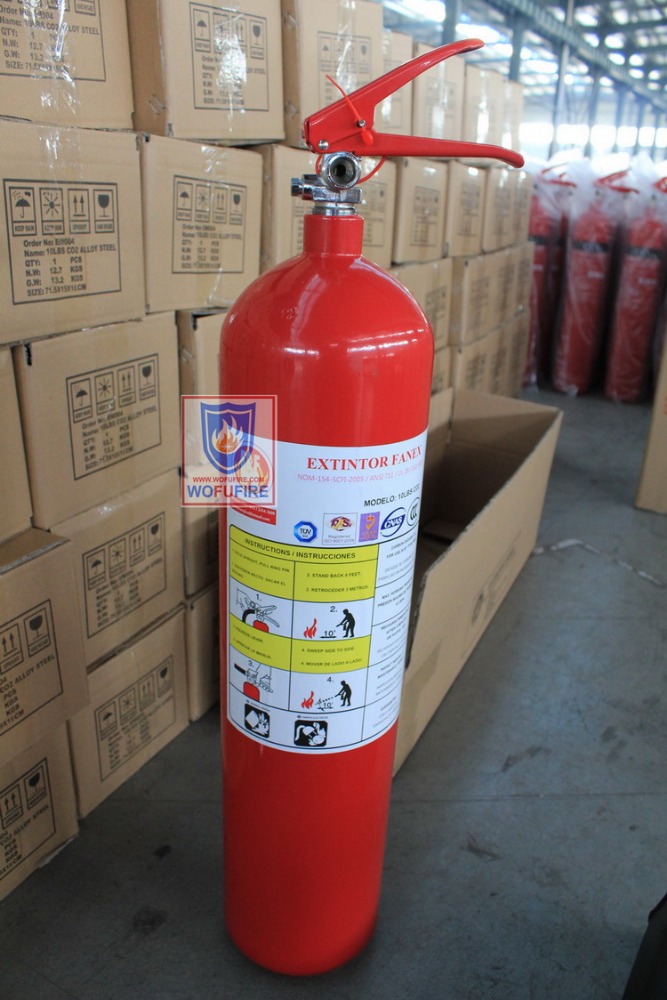

10LBS Alloy steel CO2 FIRE EXTINGUISHER
MODEL: MT10LBS
Features and Applicated :
Clear idea , low toxic , quick extinguishing .no residual ,
For Initial Fire Caused by Liquid ,gas , and electrial equipment
Safe for use on clothing ,equipment , valuable document and foold
Technical Data :
Capacity : 4.5+0.05kg
Cylinder material: alloy steel
Agent: 99% pure co2
Cylinder size: D136*H600mm
Cylinder thread: PZ27.8
Thickness: 4.5mm
Temperature Range: -20oC ~ +60oC
Discharge time: ≥ 9S
Discharge range: ≥ 2m
Working pressure: 150bar
Test pressure: 250bar
Accessories :
Brass in chrome plating valve,with ear,red middle handle,CE,side
outlet,W21.8*14

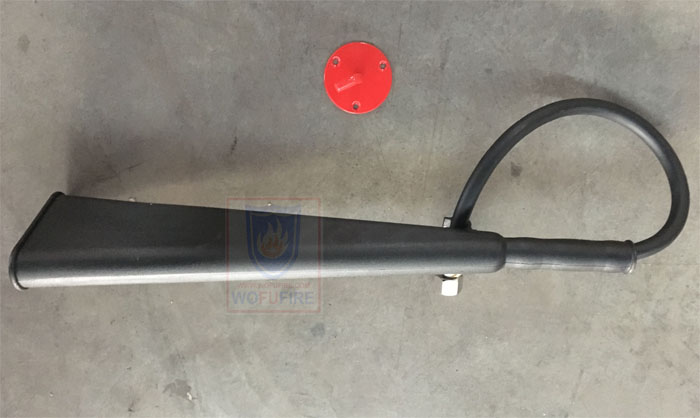

Black rubber hose,with horn,length 110cm
Red round hook
Packing :
1pc per carton G.W: 13.2KG size: 71.5*19*16cm
Operator Instruction :
1. Should wear a glove when using to avoid the skin touch horn and hose, to prevent frostbite;
2. Quickly take extinguisher at a site where 5 meters away from the fire;
3. Lay down the cylinder, pull out the safety pin;
4. Hold the handle with one arm and push the pressing handle with the other;
5. Aim the nozzle of the fire, sweep side to side;
6. Keep upright position during use, do not lying, upside down
Maintenance :
1. Should store it in a cool, dry and ventilated place, keep away from the fire;
2. Check the weight by the weighing method every half a year;
3. Cylinder should be Hydraulic Tested every 5 years, qualified them can be used
4. Fire extinguisher maintenance and refill, should the qualified professional Fire
Maintenance Department be responsible for.
Min Order 200pcs; Delivery time: 20-30Days
Loading and Shipment of Fire Extinguisher
Fire extinguisher are dangerous goods under IMO 1044 class 2.2 by international sea bureau so all the shipment must shipped as DG cargo.
1. All cartons must stick IMO green label.
2. All container must pull green net
3. Danger shipping mark "1044"
Quality Problems
1. quality problem from the shipping company
pls check the cargo quality once you discharge the container. any humidity damage from the shipping company must take photo and send within 5days when your get cargo, or before unload them
2. quality problem from WOFU
within 2month after get container, the supplier must send pictures or videos to WOFU, we would reply buyer within 2days, about the reason be caused and solution means.
if 10% quality problem, WOFU can retired the cargo in the fee from WOFU.
if only some parts problem, WOFU can discuss with buyer if client agree to accept by discount or by cash. if not, client can return or rechange the cargo by WOFU"s fee.
