Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Welfare
- Material:
- brass body
- Branch pipe:
- 1" diameter
- Length:
- 700mm
- inlet:
- 2.5" British aluminum joints male
- outlet:
- 2.5" female
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 43X34X20 cm
- Single gross weight:
- 13.0 kg
- Package Type:
- EXPORTING CARTON: CTN:1/PC NW12.50 GW13.00 CBM0.029 SIZE : 43*34*20

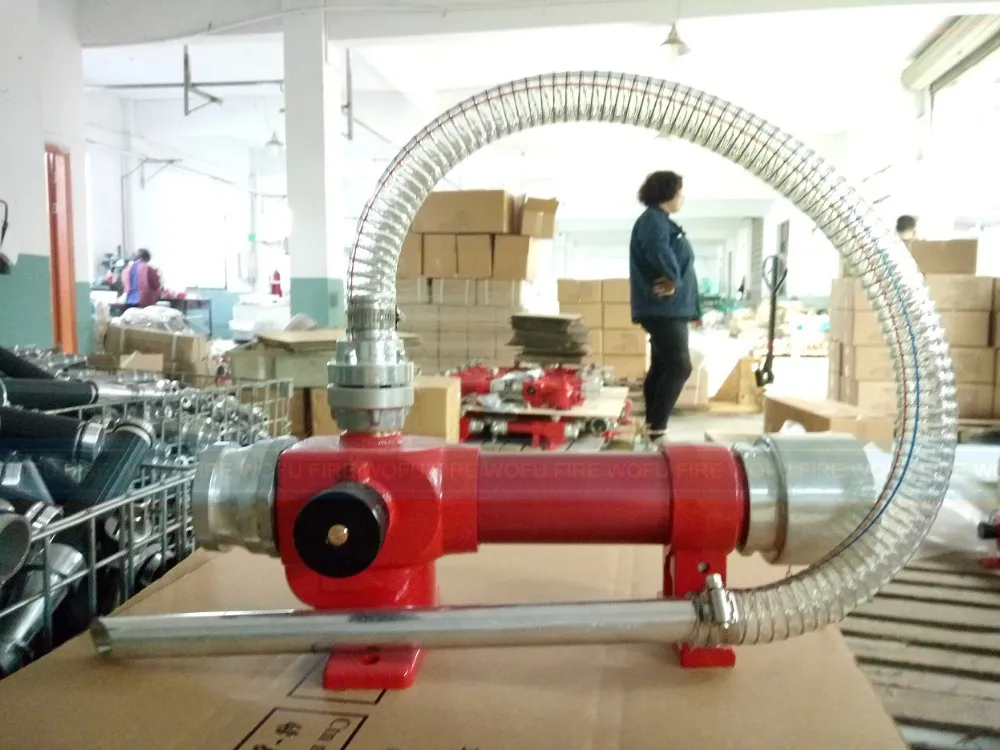

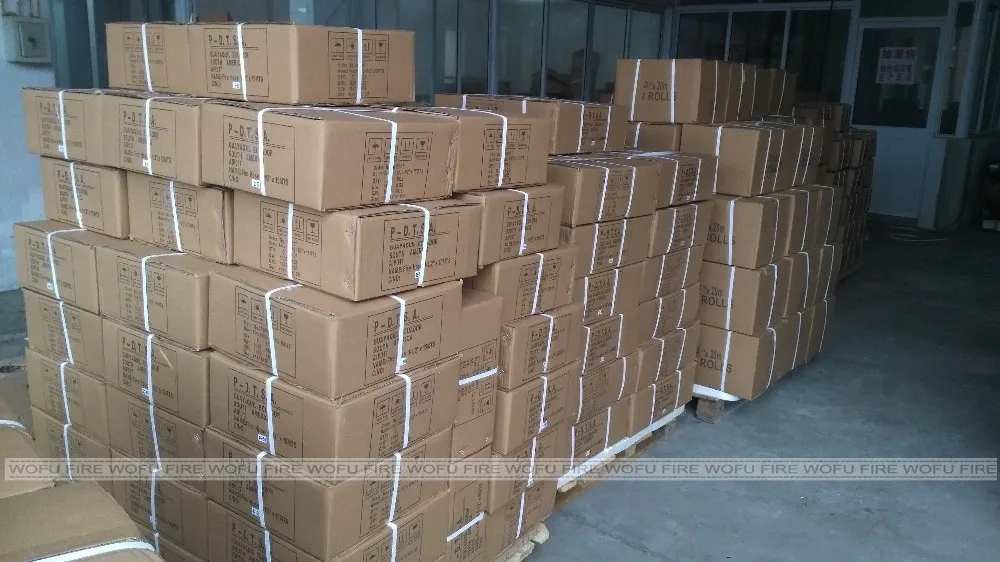

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Set) 1 - 200 >200 Est. Time(days) 1 To be negotiated

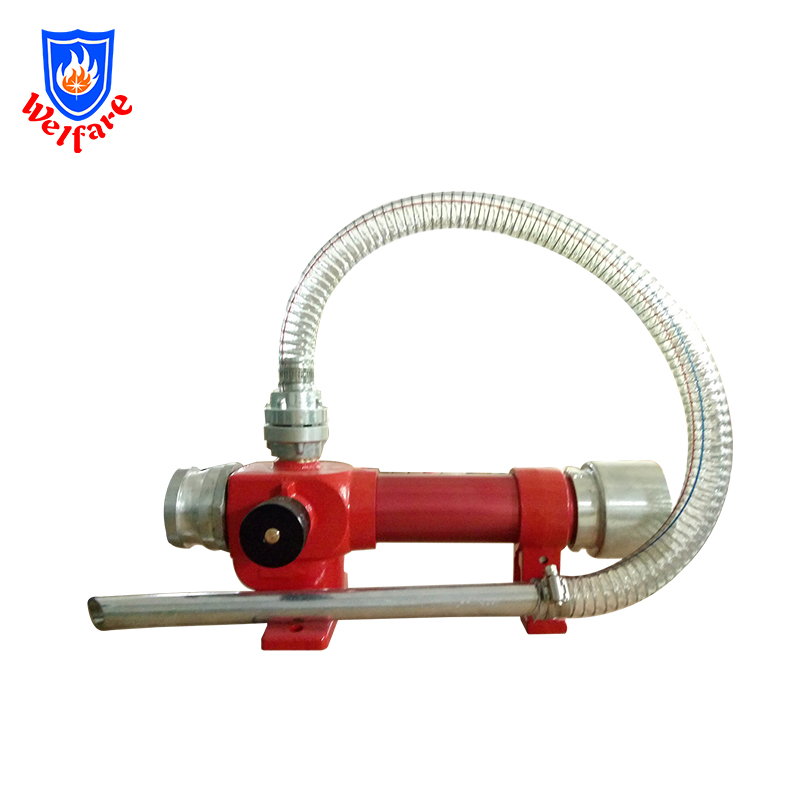

Foam proportioner , in-line foam inductor
Detail description of Foam profortioner/ foam inductor:
Be used in Foam extinguishing system , for mixture water , foam in certain pressure
foam inductor is when certain pressure water through the nozzle of growth, step-down, to form the nozzle exit negative pressure, under the action of atmospheric pressure, with pipettes inhaled foam liquid from foam liquid storage tank and into the negative pressure of foam
Within the inductor is mixed with water pressure in a certain proportion.The equipment is portable and local type foam fire extinguishing system equipment, suitable for high, medium and low expansion foam extinguishing system.
| Suitable for high , medium and low expansion foam | |
Products material : | main body is brass |
| Branch pipe: | 1" diameter , |
| Products length: | 700mm |
| body Inlet: | 2.5" British aluminum joints male |
| body outlet: | 2.5" female |
Foam Inductor : | BS336 2 " |
| female inlet: | outlet connection with pick up tube fitted with storz D/25 coupling |
| Export carton packing: | 1pcs/ctn, gross weight: 13.00kgs |
| Packing size: | 43*34*20cm |
Detail Quotation for Foam profortioner/ foam inductor :
More Detail of Foam profortioner/ foam inductor/ in-line foam inductor:
| Pipeline negative pressure foam proportioner Pipeline negative pressure foam proportional mixer is mainly used in foam fire hydrant boxes, mobile cart devices such as the proportion of mixture. |
| Working principle: Pressure water from imported into proportioner, most of the water spread via high-speed injection nozzle tube, form a negative pressure zone between nozzle and diffusion tube, foam liquid by suction inlet suction negative pressure zone, with the pressure of water into the diffusion tube at the same time, from export;Are there is a small part of the pressure water by diffusion through the regulating valve and pipe flow of liquid mixture mixed flow from exports.Swirl control valve handle (mixer) side to adjust the mixing ratio of mixture. |
| Structure features: 1 mixer for in-line mixer, negative pressure when water pressure reaches the pressure value, the mixer will foam liquid into a water supply pipeline. 2 mixer imported from KY65 type tube tooth interface connected to water supply pipeline, exports from KY65 type tube teeth output pipeline connected with the mixture. 3 on the mixer equipped with suction control foam fluid volume regulator, the regulator on the plate with foam liquid absorption ratio value. |
| foam inductor is when certain pressure water through the nozzle of growth, step-down, to form the nozzle exit negative pressure, under the action of atmospheric pressure, with pipettes inhaled foam liquid from foam liquid storage tank and into the negative pressure of foam Within the inductor is mixed with water pressure in a certain proportion.The equipment is portable and local type foam fire extinguishing system equipment, suitable for high, medium and low expansion foam extinguishing system. |
