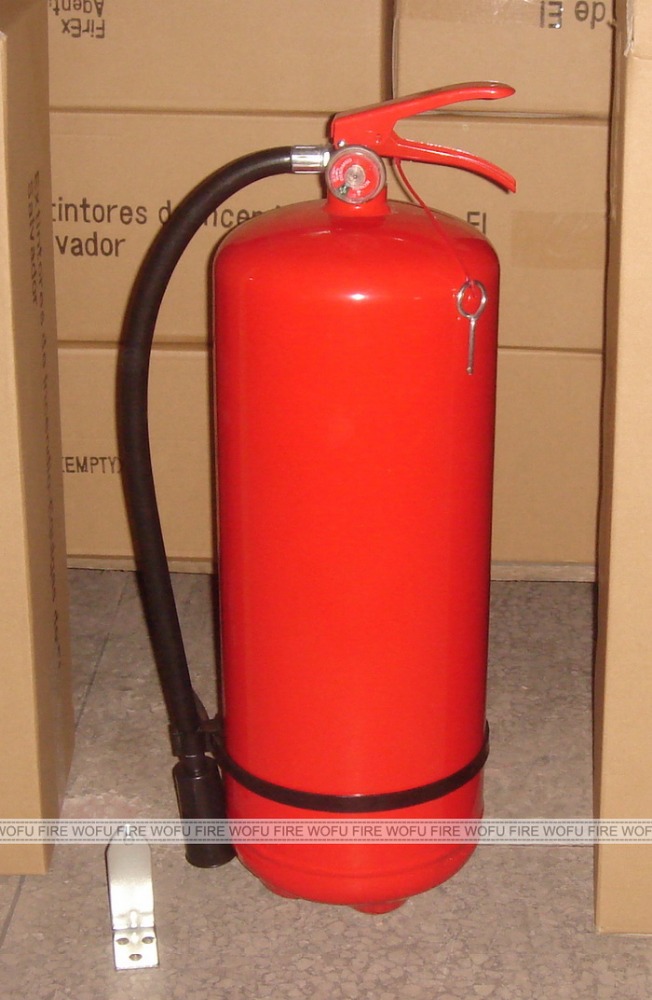

Portable fire extinguisher 20lbs extintor abc
Features and Applicated :
* Ammonium Phosphate Chemical powder ABC
* Sodium Bicarbonate Chemical powder BC
Suitable for combating fires
Combustible Solids, Flammable Liquids and Gas, Live Electrical Equipment
easier clean up after fire
| 1.Portable fire extinguisher 20lbs extintor main specification: |
| POWDER | EMPTY | |||||||
| CYLINDER SIZE: DIA*HEIGHT | Seamless, D182*H500mm | |||||||
| CYLINDER THREAD | M30*1.5 | |||||||
| BOTTOM SHAPE | CE point | |||||||
| THICKNESS | 1.4mm | |||||||
| VALVE | Brass body stamp "CE", with hanger loop, red middle handle | |||||||
| GAUGE | Dia 37mm, thread: NPT 1/8"", surface 13.71, 195psi | |||||||
| HOSE | PVC, Thread: M16*1.5, Length: 570mm | |||||||
| SIPHON TUBE | PVC, Thread: M16*1.5, Length: 470mm | |||||||
| WALL HANGER | Steel wall hanger | |||||||
| CYLINDER PAINTING | 7325 Red Painting | |||||||
| TEMPERATURE RANGE | -20°C~+55°C | |||||||
| WORKING PRESSURE | 14Bar | |||||||
| TEST PRESSURE | 27Bar | |||||||
| DISCHARGE TIME | ≥ 19S | |||||||
| DISCHARGE RANGE | ≥ 5M | |||||||
2.Extintor abc 20lbs details and accessories: |
Technical Data :
Capacity : 9+0.05kg
Discharge Time : > 19s
Discharge Range : > 5m
Temperature Range : -20°C ~ +55°C
Working Pressure : 14Bar
Test Pressure : 27Bar
Certificate : ISO, CE Approval
Accessories:
Red empty cylinder

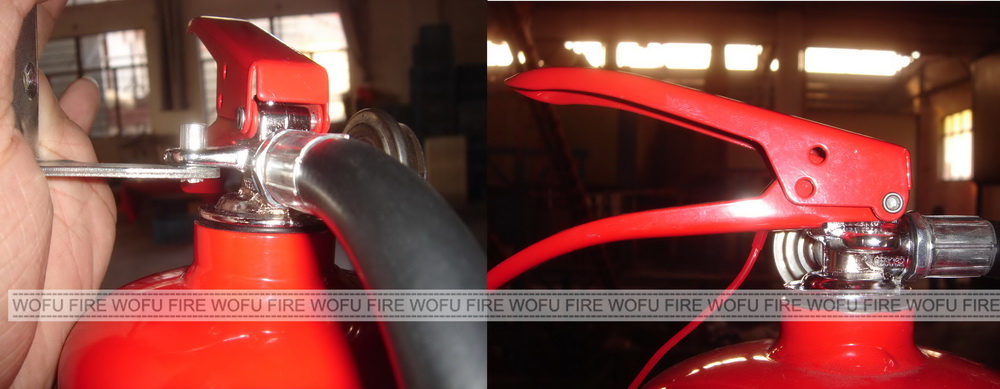

Red middle handle,chrome plated valve,with hanger,with the word of "CE"
PVC hos,thead M16*1.5,length 570mm
PVC siphon tube M16*1.5*470mm
Spring gauge,37mm type,thread NPT1/8,surface 13.71,195psi
Red plastic sealing
steel wall hanger
| 3.Portable fire extinguisher 20lbs extintor packing photos: |
Each fire extinguisher packing with PE bag,check all accessories before put into carton.
1pc per carton
G.W: 5KG
size: 19*19*59cm
| 4.Portable fire extinguisher quality problems: |
1. quality problem from the shipping company
pls check the cargo quality once you discharge the container. any humidity damage from the shipping company must take photo and send within 5days when your get cargo, or before unload them
2. quality problem from WOFU
within 2month after get container, the supplier must send pictures or videos to WOFU, we would reply buyer within 2days, about the reason be caused and solution means.
if 10% quality problem, WOFU can retired the cargo in the fee from WOFU.
if only some parts problem, WOFU can discuss with buyer if client agree to accept by discount or by cash. if not, client can return or rechange the cargo by WOFU"s fee.
