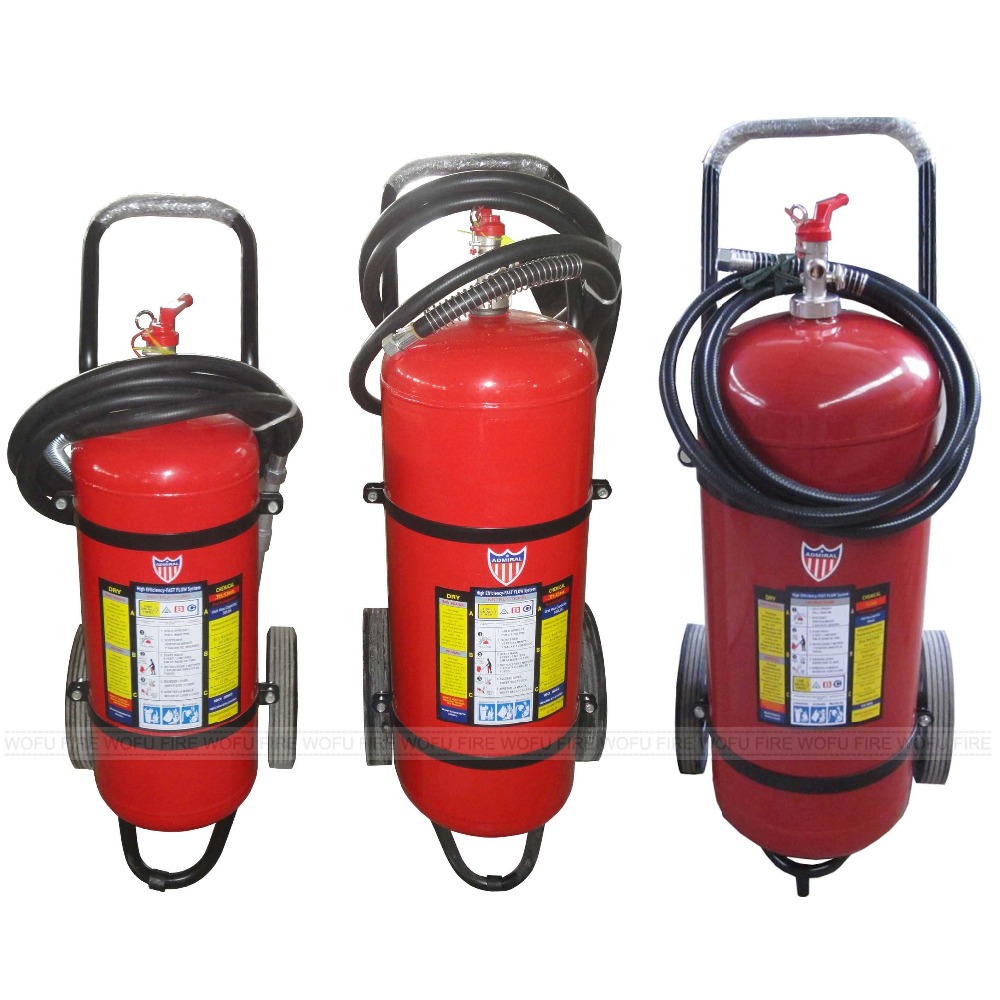

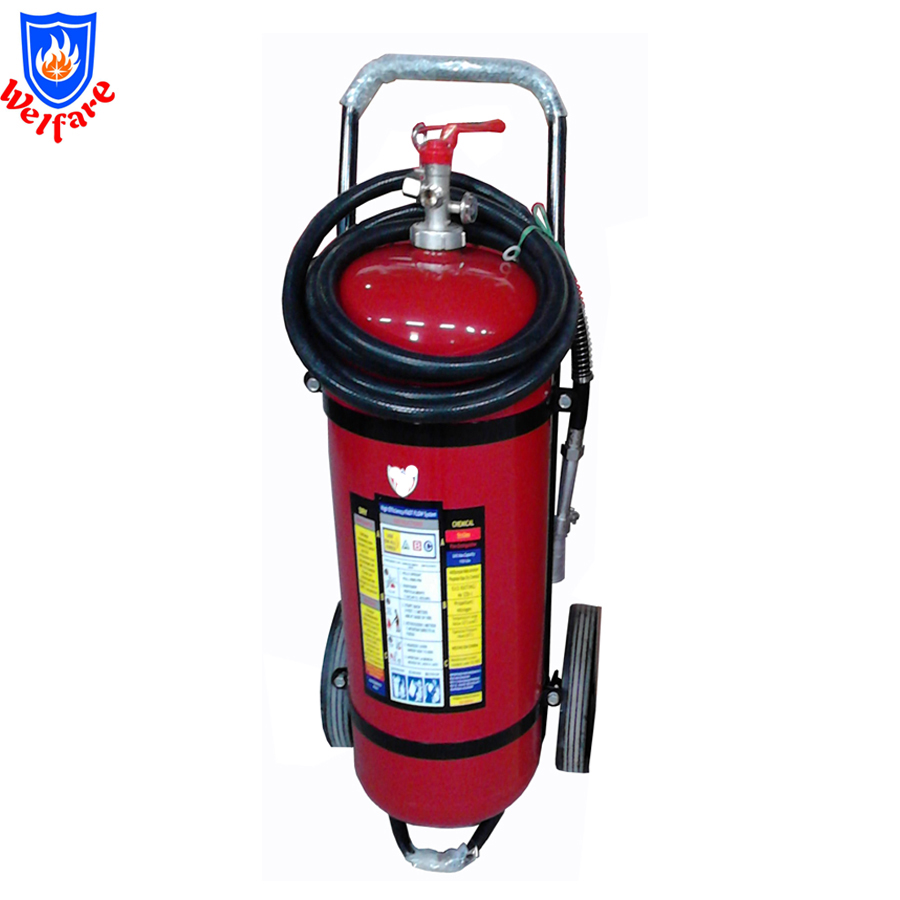

Wheeled 50kg/100lbs trolley dcp fire extinguisher
1. Specification of 100lbs dcp fire extinguisher:
Features and Applicated :
* Ammonium Phosphate Chemical powder ABC
* Sodium Bicarbonate Chemical powder BC
Suitable for combating fires
Combustible Solids , Flammable Liquids and Gas, Live Electrical Equipment
easier clean up after fire
Technical Data :
Capacity : 45+0.05kg
Discharge Time : > 40s
Discharge Range : > 12m
Temperature Range : -20°C ~ +55°C
Fire Class : 15A / 223B C
Working Pressure : 14Bar
Test Pressure : 27Bar
Certificate : ISO, CE Approval
Size: Diameter 300mm, Height 900mm
Thickness: 2.3mm
Neck Ring: G 2"
Bottom Shape: Flat base
Color: Red 7325 painting
2. Component of 100lbs abc 40% Fire Extinguisher:
Red cylinder,Chrome valve, Pressure gauge, PVC hose with gun, Tamper sealing,
Steel black wheel
3.Packing Detail of 100LBS ABC Trolley Fire Extinguisher:
1PC/CTN
G.W: 72KG
size: 112*45*39cm
4. How many models we have?
Capacity: 50LBS, 100LBS, 150LBS
Below available types might be decided the price and quality choices.
5. Loading and Shipment of Fire Extinguisher:
Fire extinguisher are dangerous goods under IMO 1044 class 2.2 by international sea bureau so all the shipment must shipped as DG cargo.
1. All cartons must stick IMO green label.
2. All container must pull green net.
3. Danger shipping mark "1044".
