| Technical Data : | |||||
| Capacity : | 150LBS | ||||
| Cylinder size : | D350 x H915mm | ||||
| Discharge times : | > 60s | ||||
| Discharge Range : | > 9m | ||||
| Temperature Range: | -20~60ºC | ||||
| Fire Class Rate : | 43A, 90B C | ||||
| Working Pressure : | 13.71Bar | ||||
| Accessories : | Brass valve with chrome plating | ||||
| Red handle, hose outlet G 3/4" | |||||
| Rubber hose with aluminum gun, 4M length | |||||

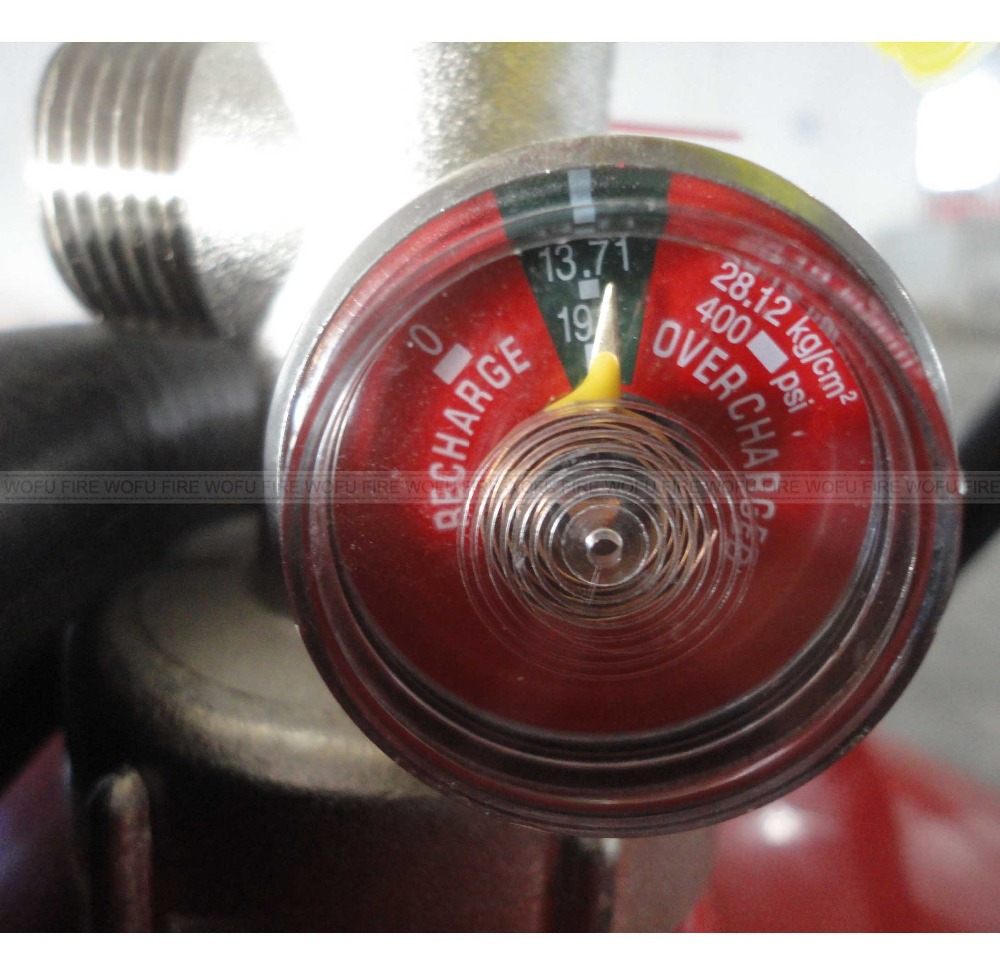

| Burden Gauge, Dia 25mm, thread: M10*1-12.5, 13.7 surface | |||||
| Yellow plastic sealing | |||||
| Packing : | 1pcs a carton G.W: 103KG size: 118x51x47cm | ||||
| Operator Instruction : Generally by two co-operation | |||||
| 1. Quickly take the trolley at a site where 10 meters away from the fire; | |||||
| 2. One person make sure the cylinder is stable; | |||||
| 3. Pull out of Safety pin at a very fast rate; | |||||
| 4. Another person take out discharge gun, pull out the rubber tube; | |||||
| 5. Hold the discharge gun with one arm and pulls the trigger with the other; | |||||
| 6. Aim the nozzle on flame roots, and put out the fire. | |||||
| Maintenance : | |||||
| 1. Check if wheel is loose, flexible and reliable. | |||||
| 2. Regularly check if the dry powder is caking, replace immediately if yes. | |||||
| 3. Periodically check the weight, refill immediately if is one-tenth reduction in weight. | |||||
| 4. Check the sealed product and safety valves, must fix if bad. | |||||
| 5. Cylinder should be hydraulic tested every 5 years, qualified them can be used | |||||
| Min Order 10pcs ; Delivery time : 10-20Days . | |||||
