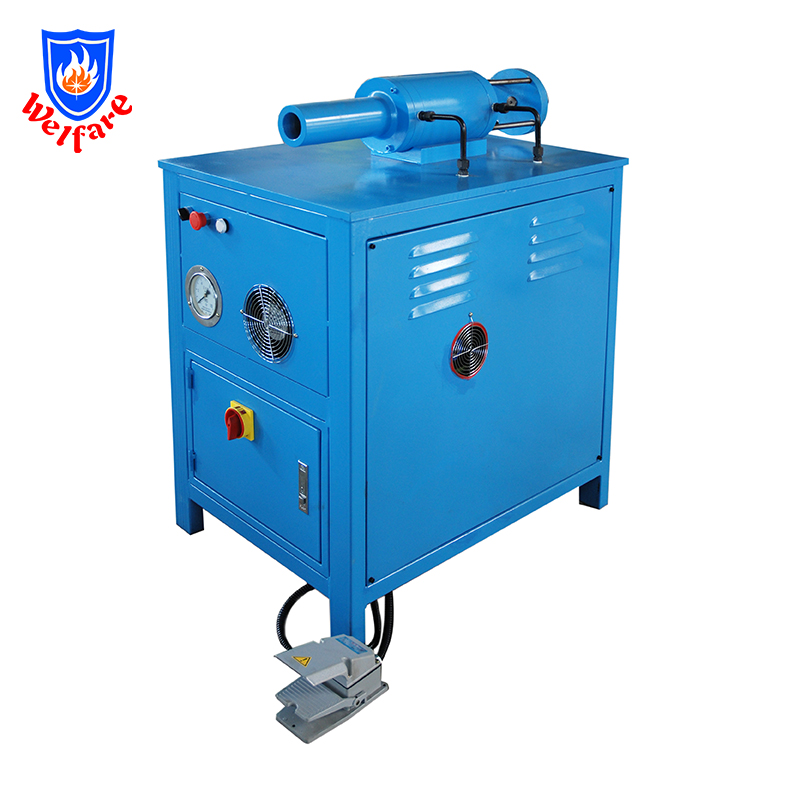

Hose mouth stretching equipment |
One, main characteristics:
1,Beautiful shape, compact structure, convenient installation, layout
2,Machine, hydraulic, electric control, convenient adjustment, simple operation, easy maintenance
3,The equipment is reliable, convenient replacement.
4,Easy to use little power, preparation of low operation cost, low processing cost.
5,Low noise, good working environment, low labor intensity of workers
6,High production efficiency, fully meet the requirements of mass production
Two, the main parameters:
1,Nominal pressure 3.5Mpa
2,The maximum pressure 4.5Mpa
3,Tension cylinder diameter 110mm
4,Die interface thread M58*2
5,Motor power 3kw
6,Cylinder stroke 150mm
7,Processing range 1.5 inch, 2.5 inch
8,The machine appearance dimension ( length * width * height ) 870*600*1100mm
Three, main functions and features:
Special equipment suitable for hose and fittings interface tension.
Four, operation mode:
The product is placed in a mould →press the pedal switch→cylinder backward→when proximity switch stop→start the return delay ( the time can be adjusted.) →the time to→cylinder automatic return→stop touching of proximity switch, ( near the adjustment according to the tightening degree switch ) →completion of jobs→remove the workpiece→and so
Five, the matters needing attention
1,In the process of operation, should notwear gloves
2,Pump after open, check the pump is the clockwise
3,The tension pressure can be adjusted according to the size of the product oil pressure, the maximum pressure is 4.5Mpa
