| POWDER | AFFF 3% | ||||||
| CYLINDER SIZE: DIA*HEIGHT | Seamless, D162*H436mm | ||||||
| NECK RING | M30*1.5 | ||||||
| BOTTOM SHAPE | Foot tripod base | ||||||
| THICKNESS | 1.5mm | ||||||

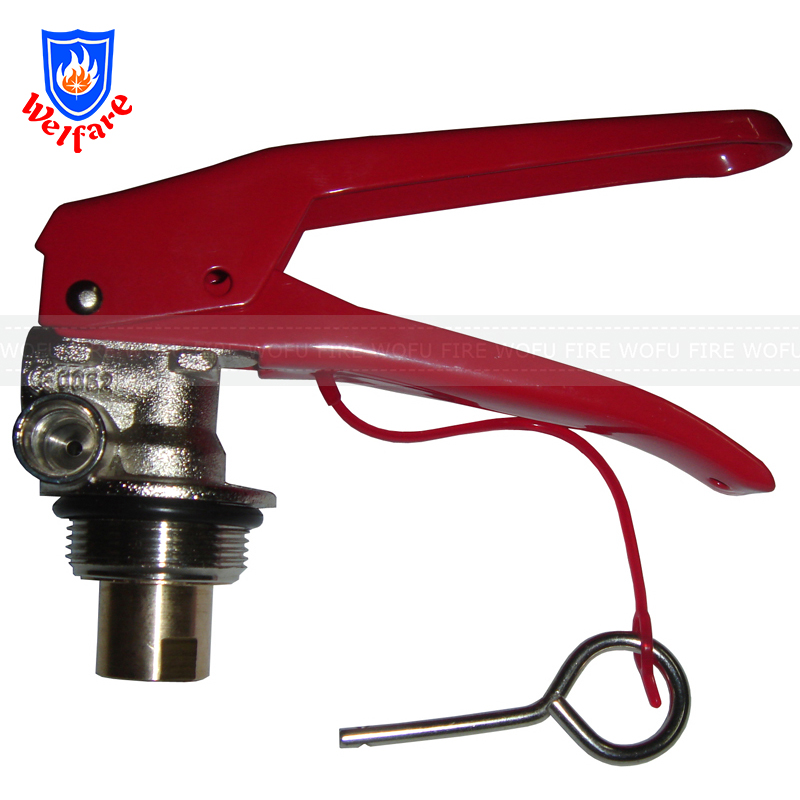

| VALVE | CE valve, Red handle wih nickel plated | ||||||
| GAUGE | Diameter: 25mm, Thread: M10*1-12.5 | ||||||
| NOZZLE | Hose with nozzle, Thread: G 1/4"", Length: 520mm | ||||||
| SIPHON TUBE | PVC, Thread: M16*1.5, Length: 480mm | ||||||
| BRACKET | Steel wall hanger | ||||||
| TAMPER SEALING | Yellow Plastic, Length: 250mm | ||||||
| CYLINDER PAINTING | 7325 Red Painting | ||||||
| TEMPERATURE RANGE | 0°C~+60°C | ||||||
| WORKING PRESSURE | 14Bar | ||||||
| TEST PRESSURE | 28Bar | ||||||
| DISCHARGE TIME | ≥ 16S | ||||||
| DISCHARGE RANGE | ≥ 5M |
Operating Instruction :
1. Quickly take extinguisher at a site where 5 meters away from the fire;
2. Turn it upside down before use, to loose the dry powder inside;
3. Take out the safety pin;
4. Hold the discharge hose with one arm and push the pressing handle with the other;
5. Keep upright position during powder spray, do not lying, upside down
Maintenance :
1. Should placed within reach and in a dry and ventilated place;
2. Preventing damps, solarization;
3. The parts in good installed, check it frequently, be recharged once be used;
4. Regularly check if the dry powder is caking, replace immediately if yes;
5. Cylinder should be Hydraulic Tested every 5 years, qualified them can be used
Min Order : 1,000pcs
Delivery Time : 10 ~ 20 days after prepaid
Loading and Shipment of Fire Extinguisher :
Fire extinguisher are dangerous goods under IMO 1044 class 2.2
by international sea bureau so all the shipment must shipped as DG cargo.
1. All cartons must stick IMO green label.
2. All container must pull green net
3. Danger shipping mark "1044"
Quality Problems :
1. quality problem from the shipping company
pls check the cargo quality once you discharge the container. any humidity damage from the shipping company must take photo and send within 5days when your get cargo, or before unload them
2. quality problem from WOFU
within 2month after get container, the supplier must send pictures or videos to WOFU, we would reply buyer within 2days, about the reason be caused and solution means.
if 10% quality problem, WOFU can retired the cargo in the fee from WOFU.
if only some parts problem, WOFU can discuss with buyer if client agree to accept by discount or by cash. if not, client can return or rechange the cargo by WOFU"s fee.
