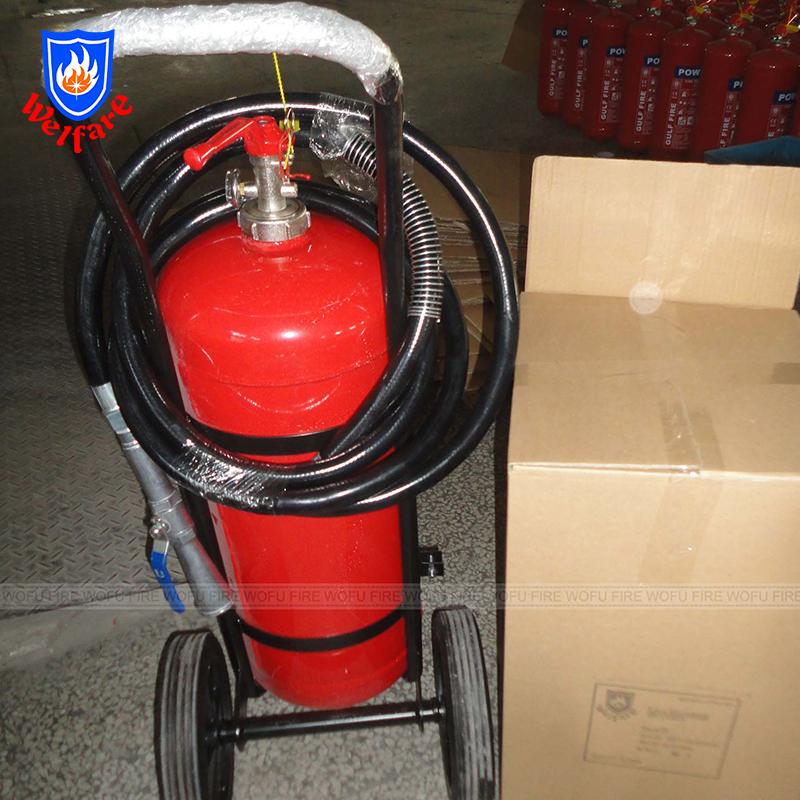

| 100KG Wheeled 40% ABC dry powder fire extinguisher |
Features and Applicated :
* Ammonium Phosphate Chemical powder ABC
* Sodium Bicarbonate Chemical powder BC
Suitable for combating fires
Combustible Solids, Flammable Liquids and Gas, Live Electrical Equipment
easier clean up after fire
Technical Data :
Capacity : 100kg
Cylinder size : D400*H1035mm
Discharge Time : ≥ 60s
Discharge Range : ≥ 6m
Temperature Range : -20°C ~ +60°C
Fire Class : 55A / 120B C
Working Pressure : 13.71Bar
Certificate : ISO, CE Approval
Accessories:

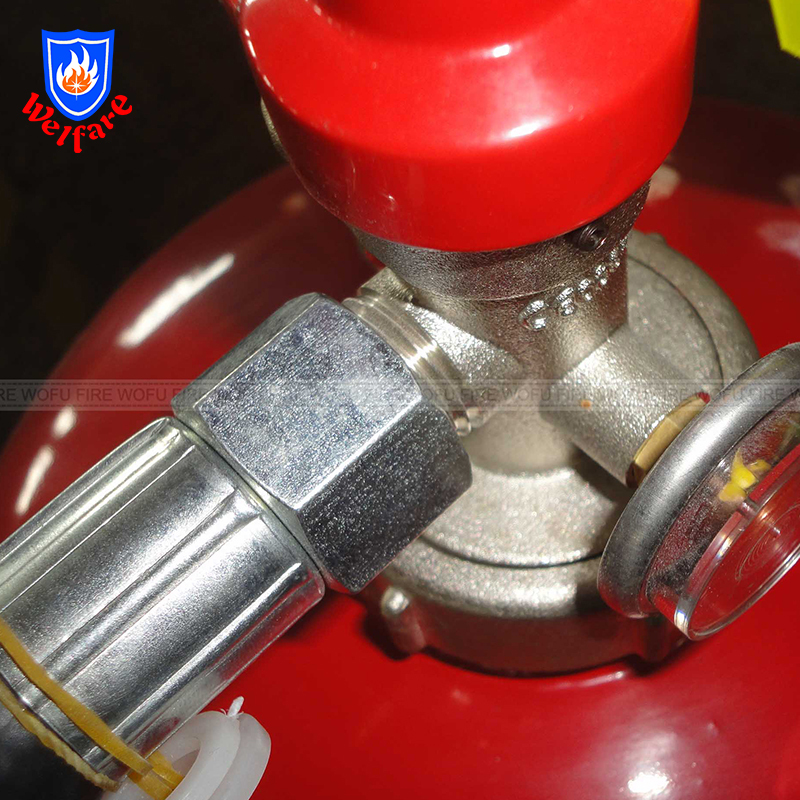

Brass valve with chrome plating red handle, hose outlet G 3/4"
rubber hose with aluminum gun, 4M length
Burden Gauge, Dia 25mm, thread:M10*1-12.5,13.7surface
Yellow plastic sealing
Packing Details :
1pcs a carton
G.W: 140KG
size: 120*55*47cm
Operating Instruction :
1. Quickly take the trolley at a site where 10 meters away from the fire;
2. One person make sure the cylinder is stable;
3. Pull out of safety pin at a very fast rate;
4. Another person take out discharge gun, pull out the rubber tube;
5. Hold the discharge gun with one arm and pulls the trigger wiht the other;
6.Aim the nozzle on flame roots, and put out the fire.
Maintenance :
1.Check if wheel is loose, flexible and reliable.
2.Regularly check if the dry powder is caking, replace immediately if yes.
3.Periodically check the weight,refill immediately if is one-tenth reduction in weight.
4.Check the sealed product and safety valves,must fix if bad.
5. Cylinder should be Hydraulic Tested every 5 years, qualified them can be used
Min Order : 1,0pcs
Delivery Time : 10 ~ 20 days after prepaid
Loading and Shipment of Fire Extinguisher :
Fire extinguisher are dangerous goods under IMO 1044 class 2.2
by international sea bureau so all the shipment must shipped as DG cargo.
1. All cartons must stick IMO green label.
2. All container must pull green net
3. Danger shipping mark "1044"
Quality Problems :
1. quality problem from the shipping company
pls check the cargo quality once you discharge the container. any humidity damage from the shipping company must take photo and send within 5days when your get cargo, or before unload them
2. quality problem from WOFU
within 2month after get container, the supplier must send pictures or videos to WOFU, we would reply buyer within 2days, about the reason be caused and solution means.
if 10% quality problem, WOFU can retired the cargo in the fee from WOFU.
if only some parts problem, WOFU can discuss with buyer if client agree to accept by discount or by cash. if not, client can return or rechange the cargo by WOFU"s fee.
