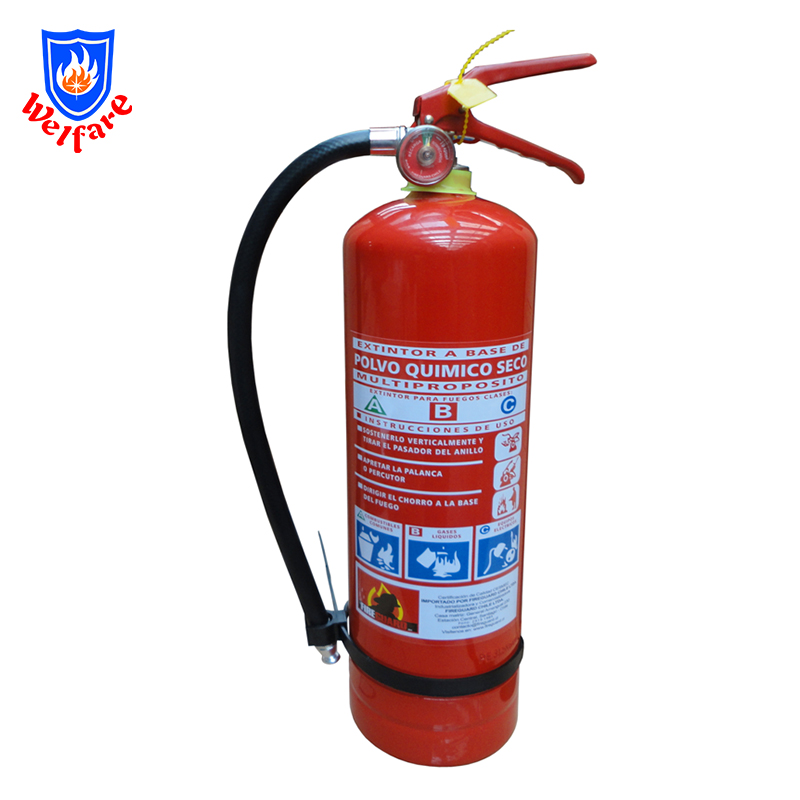

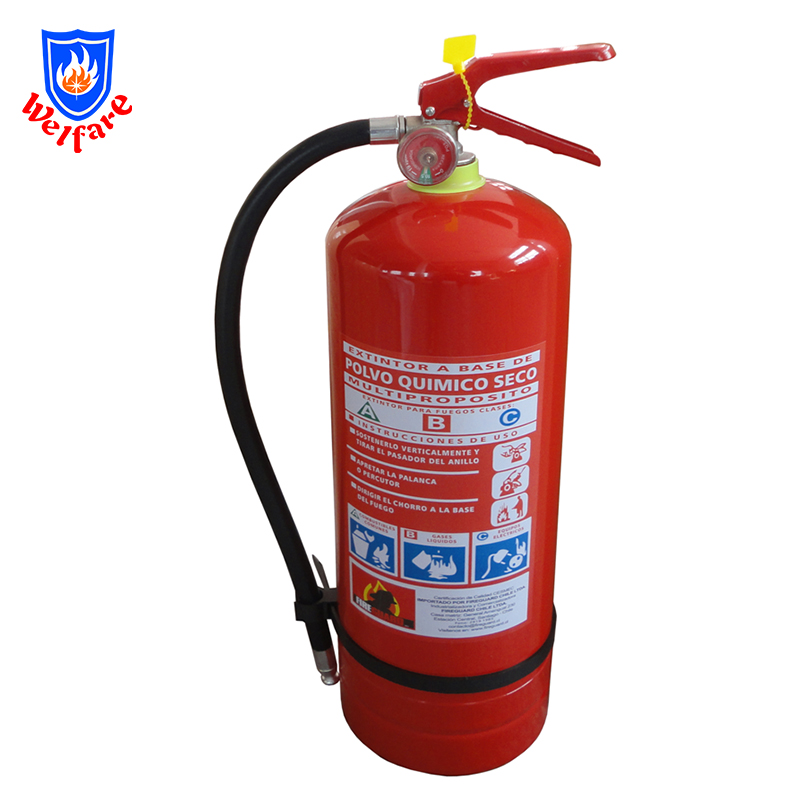

2kg abc 40% dry powder fire extinguisher
Features and Applicated :
* Ammonium Phosphate Chemical powder ABC
* Sodium Bicarbonate Chemical powder BC
Made in China
Suitable for combating fires
Combustible Solids , Flammable Liquids and Gas, Live Electrical Equipment
easier clean up after fire
1.Main specification for 2kg abc fire extinguisher: |
| Capacity | 2KG ABC |
| Cylinder Size | D110*H310mm |
| Thread | M30*1.5 |
| Thickness | 1.0mm |
| Bottom Shape | Curls Base |
| Tamper Sealing | Yellow Plastic, Length: 250mm |
| Fluorescent Ring | Green Fluorescent Ring |
| Valve | Brass Body without Hanger Loop, Small Red Handle, Outlet Thread: M16*1.5 |
| Gauge | Spring Gauge, Diameter: 37mm, Thread: M10*1-12.5, Surface: 0-10, 5-19 |
| Hose | White Nylon Nozzle |
| Siphon Tube | M16*1.5*275mm, PVC Siphon Tube |
| Hook | Steel Spring Bracket |
| Painting Color | Red-7325 |
| Packing Size | 34*24*40cm |
| QTY/CTN | 6PCS/CTN |
| G.W/CTN | 21KG |
| Steel Seal No. | PE 31.5Kg/cm2 PT 10.5Kg/cm2 PQS 2015/01 FIREGUARD CHILE H |
1kg abc
2kg abc
4kg abc6kg abc
2.Size and accessories of 2kg abc fire extinguisher: |
All accessories:
Red cylinder,Brass Body with Chrome Plated valve,Spring Gauge,pvc hose,big steel hook
3.Packing details for 2kg abc fire extinguisher: |
6pc in brown carton,size:34*24*40cm
4.Operating instruction for abc fire extinguisher: |
1. Quickly take extinguisher at a site where 5 meters away from the fire;
2. Turn it upside down before use, to loose the dry powder inside;
3. Take out the safety pin;
4. Hold the discharge hose with one arm and push the pressing handle with the other;
5. Keep upright position during powder spray, do not lying, upside down
