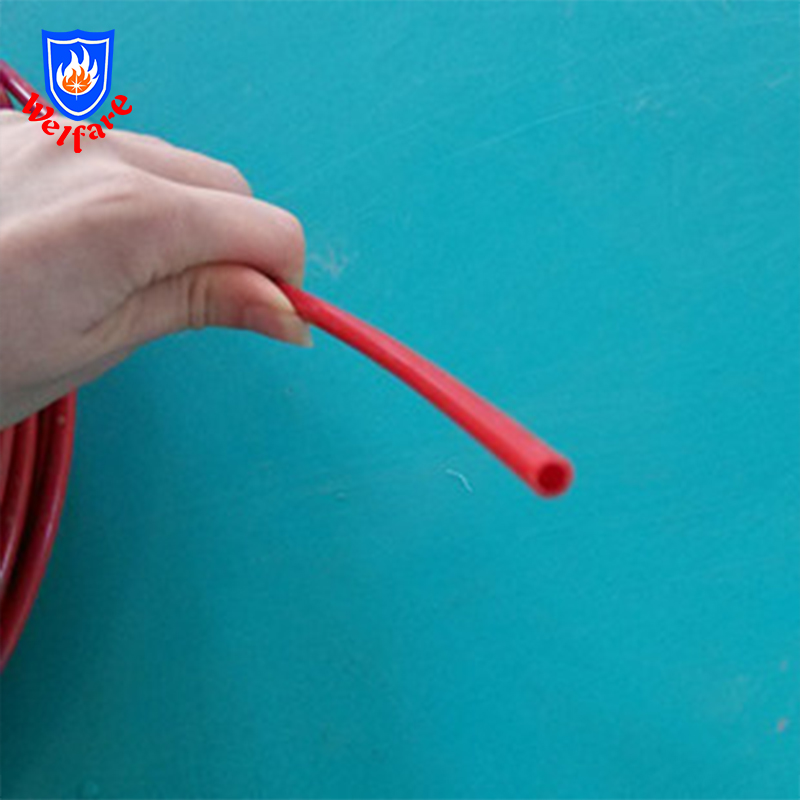

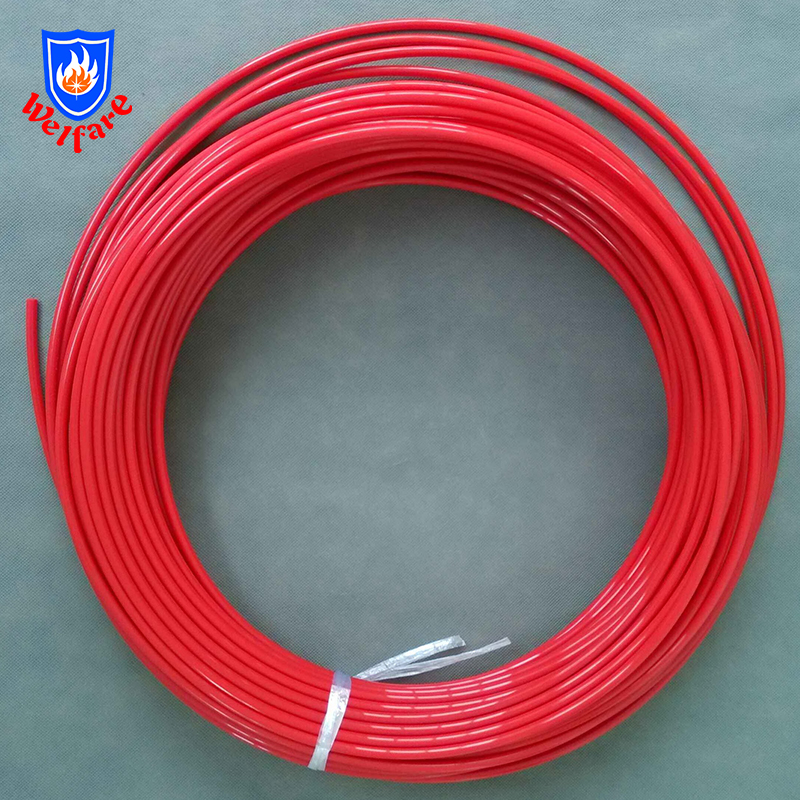

| 6MMX4MM fire Detecting tube |
160C specification: outer diameter X inner 6MM X4MM
Fire-detecting tube automatic fire-extinguishing device,
advantage :
simple operating ,
low-cost
highly reliable,
independent
saving cost
Features;
non - electric starting
more scientific fire-extinguishing method
efficiency,
protecting environment
Range application
electrical equipment,
control box,
distribution board
other fire-prone Spaces
widely used in power plants,
communications,
radio and television,
petrochemical,
railway systems,
This kind of fire-extinguishing device adopts flexible and flexible fire-detecting tube as the fire detecting and alarming part, and it can also be used as the transmission and spraying pipe of fire-extinguishing agent.Flexible fire detection tube can be conveniently arranged to the nearest place of each potential fire source. Once a fire occurs, the fire detection tube will be broken by heat and fire extinguishing agent will be released immediately to extinguish the fire.
The biggest characteristic of non - electric self - starting fire extinguishing device
First, it does not need power supply and traditional fire alarm control parts, thus reducing the cost and difficulty of installation, and greatly improving
The reliability of fire extinguishing device avoids the wrong action of electric control alarm components.
Second, the traditional fixed fire extinguishing system only carries out fire detection in the whole protective space, and extinguishes the whole space regardless of the size of the fire, resulting in slow response time for detection and large amount of waste of extinguishing agent.The fire-detecting tube can be laid inside the equipment and instrument that may catch fire, which can detect the fire in the fastest time and put out the fire at the fastest speed, so that the corresponding time is faster and the fire-extinguishing quantity is less.
From the above two characteristics of non-electric self-starting fire-extinguishing device, the fire-detecting tube is a more scientific fire-extinguishing method in improving fire-extinguishing efficiency, saving cost and protecting environment.
Suitable for fighting and saving fire in the following places
1.1 microwave room, decimeter wave room, meter wave room, transformer and distribution room and uninterruptable power room in radio and television transmission tower;
1.2 program-controlled switching room, control room and signal switching point room of the communication system;
1.3 control room, electronic equipment room, computer room, relay room, transformer and distribution room of the power plant;Cable cross, dense and indirect first class parts;
1.4 transformer and distribution cabinets, elevator control cabinets, wire and cable troughs or Bridges with troughs;1.5 special or important cabinet equipment with relatively closed enclosure in other places.
Type of fire suitable for extinguishing
2.1 fire detector automatic fire extinguishing device filled with carbon dioxide/sevoflorane can be used for fighting the following fires:
2.1.1 combustible gas fire that can cut off the air source before extinguishing;
2.1.2 liquid fire of category a, b and c or solid fire of paraffin, asphalt and other melting materials;
2.1.3 fire on solid surface and deep solid fire on cotton wool, fabric, paper and other parts;
2.1.4 electrical fire.2.3 fire detector automatic fire extinguishing device filled with carbon dioxide/sevoflorane shall not be used to put out the following fires:
2.2.1 fire of nitrocellulose, gunpowder and other oxidant-containing chemicals;
2.2.2 fire of active metals such as potassium, sodium, magnesium, titanium and zirconium;
2.2.3 fire of metal hydride such as potassium hydride and sodium hydride.
