Home > Products > PBS-13B PBS-13C 12mm 4A 250VAC Red Cap Momentary Guitar Part Push Button Switch
PBS-13B PBS-13C 12mm 4A 250VAC Red Cap Momentary Guitar Part Push Button Switch
Click on the image to view the original image
Product: views:5PBS-13B PBS-13C 12mm 4A 250VAC Red Cap Momentary Guitar Part Push Button Switch
Branch: Sunlight/OEM
Type: Supplies>>Switches>>Push Button Switches
Size: 4X2X3 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 05:55
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Sunlight/OEM
Model Number:
PBS-13B/PBS-13C
Protection Level:
IP40
Max. Current:
8A
Max. Voltage:
250VAC
Mounting hole diameter:
12MM
Operation type:
Momentary
Type:
Supplies>>Switches>>Push Button Switches
Rating:
8A 125VAC; 4A 250VAC
Electrical Life:
50000Cycles
Certificate:
CQC
Button color:
Red Yellow White Black Green
Product type:
Mini Push Button Switch
Function:
Push On/Push Off
Free Sample:
Available

Packaging & Delivery

Selling Units:
Single item
Single package size:
4X2X3 cm
Single gross weight:
0.013 kg
Lead Time:
Quantity(Piece)1 - 5000>5000
Est. Time(days)10To be negotiated
Feature


PBS-13B OFF-(ON)
PBS-13C ON-(OFF)
8A 125VAC; 4A 250VAC

Product Description
Rating
8A 125VAC; 4A 250VAC

Contact Resistance
20mΩ max
Insulation Resistance
500VDC 100MΩ min
Dielectric Strength
1000VAC, 1Minute
Operating Temperature
-25℃~+85℃
Electrical Life
50,000 Cycles

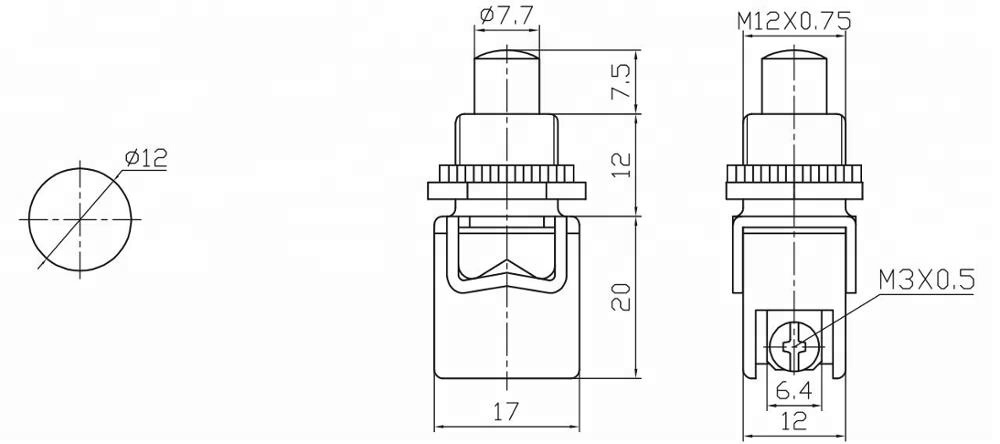

Detailed Images
Related Products
Packing & Delivery
FAQ

1. Q: How about the quality?

A: Over 1 year. Each product will be different warranty,please contact us.

2. Q: How about the certificates?

A: ROHS etc.

3. Q: Could I buy 1pc sample first and small order?

A: Of course,support sample order and small order, especially for new customers under certain condition.

4. Q: How long to make a sample?

A: If we have stock, I"ll send you soon.

5. Q: What payment is acceptable?

A: T/T or the Western Union at sight.PayPal is accaptable for samples.
