- Place of Origin:
- Zhejiang, China
- Brand Name:
- Sunlight/OEM
- Model Number:
- XL22S
- Protection Level:
- IP67/IP40/IK09
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Mounting hole diameter:
- 22mm
- Operation type:
- Momentary
- Contact configuration:
- 1NO1NC/2NO2NC
- Type:
- Push Button Switches
- Material:
- Stainless Steel
- Contact Material:
- Silver Alloy
- LED color:
- Red Green Yellow Blue White
- LED voltage:
- 6V/12V/24V/110V/220V
- Certificate:
- CE RoHS SGS
- Free Sample:
- Available
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 10X3X5 cm
- Single gross weight:
- 0.015 kg
- Lead Time:
Quantity(Piece) 1 - 5000 >5000 Est. Time(days) 7 To be negotiated
22mm dot and ring illuminated stainless steel reset push button metal switch, LED metal pushbutton switch
19mm push button switch | 22mm push button switch |
Application:
It can be used in variety of places such as Outdoor controls, Communications,Security equipment,Defense,Medical equipment,Industrial automation,Food processing equipment,Security control button,Industrial machinary,Coffee maker control button,Transportation:Mass-transit,life trucks,Bathroom control button and so on. |
The quick wire connector for 22mm metal switch, LED metal pushbutton switch
The introduction of model:
The quick wire connector for 22mm metal switch, LED metal pushbutton switch
Technical parameters:
Type | XL22S/F11 |
| ||
Illuminated Options | Led |
| ||
Max. Switch Rating | 5A/250VAC | |||
Contact Resistance | ≤30mΩ | |||
Insulation Resistance | ≥1000mΩ | |||
Dielectric Strengh | 2000VAC | |||
Operation Temp. | -20°C ~ +55°C | |||
Mechanical Life | 2,000,000 cycles | |||
Electrical Life | >50,000 cycles | |||
Contact Material | Silver Alloy | |||
Torque | 5 ~ 14 Nm | |||
Operation Pressure | 2.5 ~ 4 N | |||
Operation Travel | About 2.8mm | |||
Protection | IP40/IP67/IK09 | |||
Material | Contact | Silver Alloy | ||
Actuator/Body | Stainless Steel/ Anodized Aluminum | |||
Base | PBT | |||
LED spec. | Type | Ring/Dot | ||
Color | G-Green | B-Blue | W- White | |
Rated Voltage | 6V/12V/24V/110V/220V | |||
Life | Approx. 40, 000hours |
IP7 16mm led type illuminated momentary waterproof stainless steel metal pushbutton push button switch

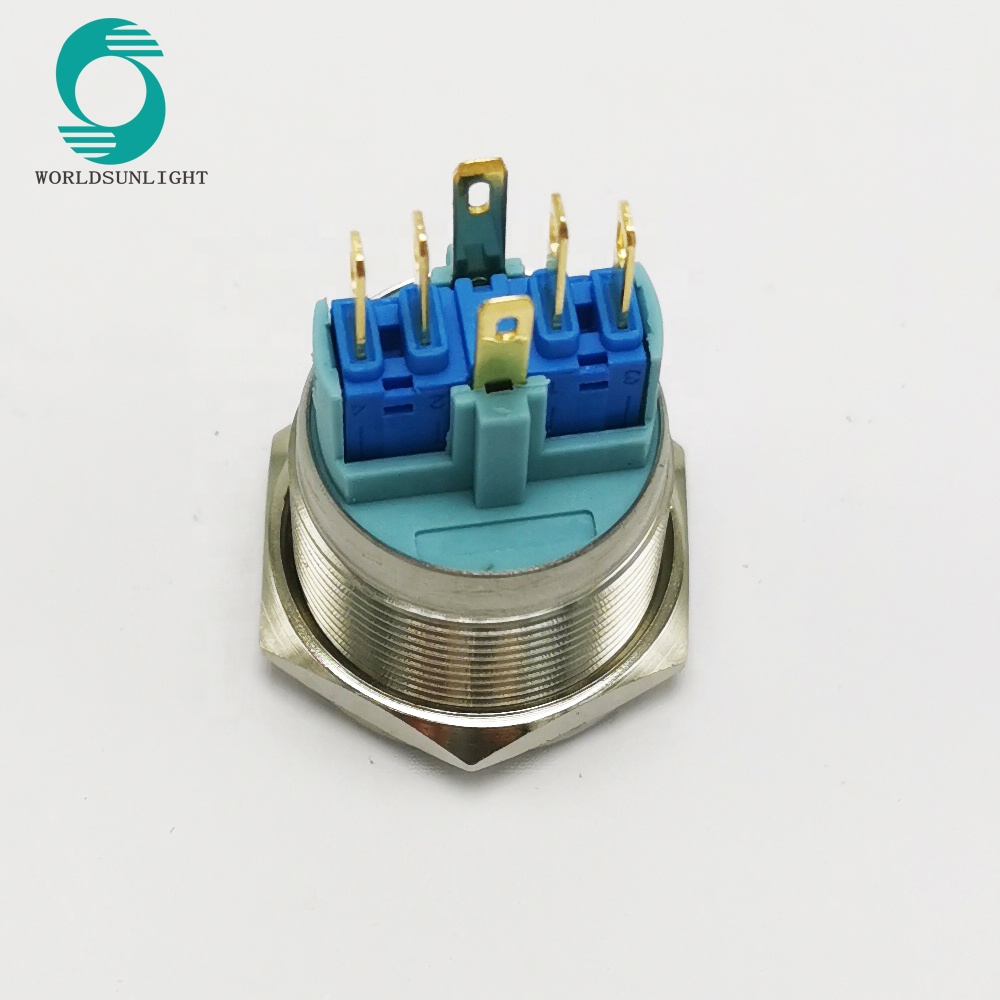

Terminal description:
upply electrical Quick connector for 16mm thread dia symnpl logo led Push Button Switch S
Order Code:
Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.
Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
The quick wire connector for 22mm metal switch, LED metal pushbutton switch
Pictures:
Anything needs me,plz send the inquiry to me!Thanks!We can supply 12mm 16mm 19mm 22mm 25mm 30mm push button switches.
You can also visit our offical website: www.worldsunlight.en.alibaba.com
The quick wire connector for 22mm metal switch, LED metal pushbutton switch
As follows:
The quick wire connector for 22mm metal switch, LED metal pushbutton switch

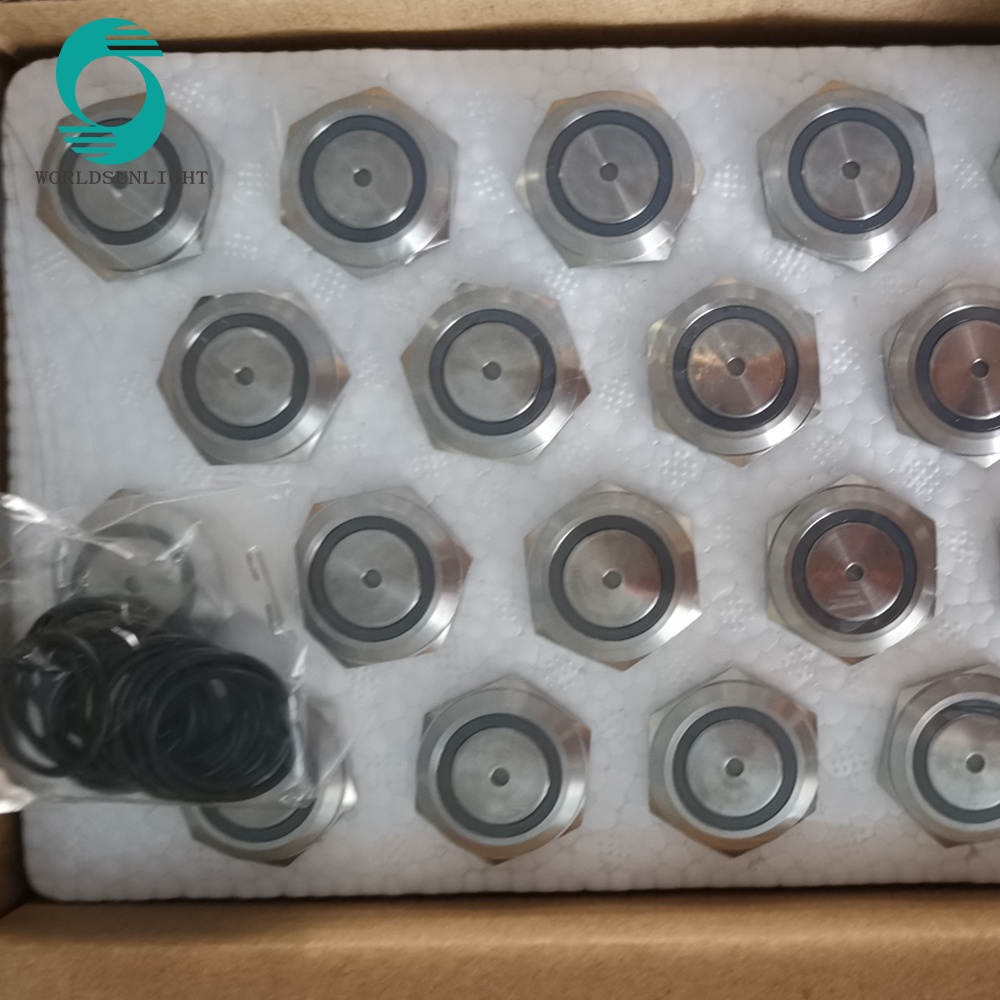

Packaging:
The quick wire connector for 22mm metal switch, LED metal pushbutton switch
Our services:
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
The quick wire connector for 22mm metal switch, LED metal pushbutton switch
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of push button switches and electronic environmental protection products.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS,SGS,ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
The quick wire connector for 22mm metal switch, LED metal pushbutton switch
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
