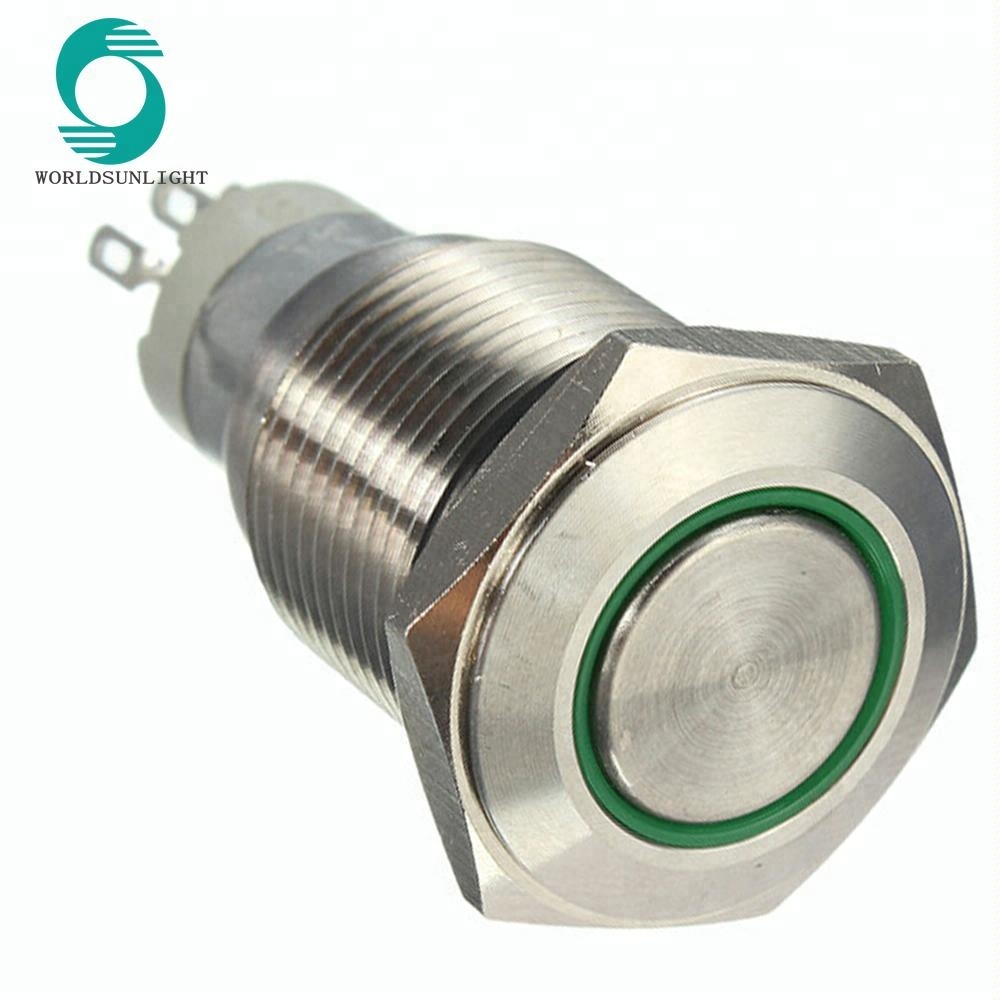

16mm 12V 6 Colors Angel Eye Metal LED illuminated Momentary Car Power Push Button Switches

Click on the image to view the original image

Product：	views：916mm 12V 6 Colors Angel Eye Metal LED illuminated Momentary Car Power Push Button Switches
Branch：	Sunlight/OEM
Type：	Push button switch
Size：	3X2X2 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:55

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Sunlight/OEM

Model Number:: XL16S-F11/P7-12V-R

Protection Level:: IP67

Max. Current:: 3A/5A

Max. Voltage:: 250VAC

Mounting hole diameter:: 16mm

Terminal:: Solder Terminals

Led voltage:: 12V(Other voltage: 5V,6V,12V,24V,36V,48V,110V,220V,)

Type:: Push button switch

Material:: Stainless Steel

Operation type:: Momentary

Lamp color:: RedGreenYellowBlueWhite

Product type:: Mini Push Button Swicth

Certificate:: CE RoHS SGS

Samples:: Available

Packaging & Delivery

Selling Units:: Single item

Single package size:: 3X2X2 cm

Single gross weight:: 0.02 kg

Package Type:: Stardand caroon box

Lead Time:

Quantity(Piece)	1 - 1000	>1000
Est. Time(days)	7	To be negotiated

Product Description

Order Confirm： 1. What Led Color? 2. What Led Voltage?

Led Voltage： 12V (or 0V/2V/3V/6V/12V/24V/110V/220V/others)
Led Color： Blue(Red, Green, Yellow,, White,Orange,Purple,Bi-color or tri-color available)

Feature

1)16mm 12V 6 Colors Angel Eye Metal LED illuminated Momentary Car Power Push Button Switches
2)16mm pin terminal
3)Momentary
4)CE RoHS SGS
5)anti-vandal

Application

It can be used in variety of places such as Outdoor controls, Communications,Security equipment,Defense,Medical equipment,Industrial automation,Food processing equipment,Security control button,Industrial machinary,Coffee maker control button,Transportation:Mass-transit,life trucks,Bathroom control button and so on.

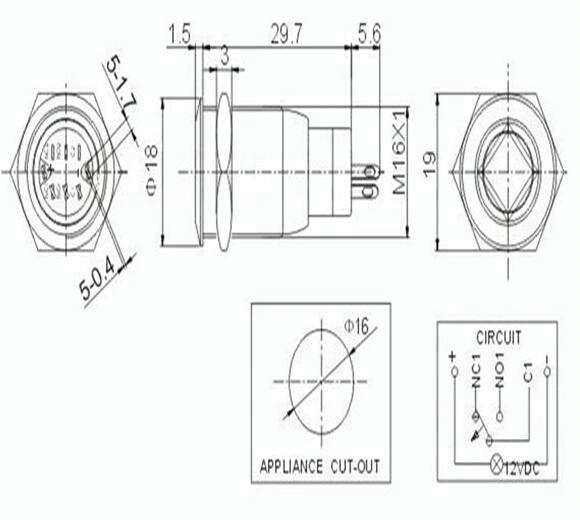

Model number:

Momentary Latching

Means that when you push switch and then move your finger, the actuator will back to the origina

Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.

Detailed Images

Packing & Delivery

3-15 days lead time.

Certifications

FAQ

Q1: Are you a manufacturer?
A1:yes. We have 5 years export exprience.

Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.

Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.

Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
